5-axis CNC Router, SG3565T-5S Series
The 5-axis CNC router comes equipped with X-axis, Y-axis, Z-axis, A-axis, and C-axis operation, giving it excellent operating flexibility. It is equipped with a 5-axis linkage control system making it ideal for cutting and carving large 3D models, casting molds, and sculptures. The stroke of the XY axis is 3500x6500mm and the stroke of the Z axis is 2200mm.
Wood, foam, plastic, composite material, glass fiber, resin, aluminum, etc.

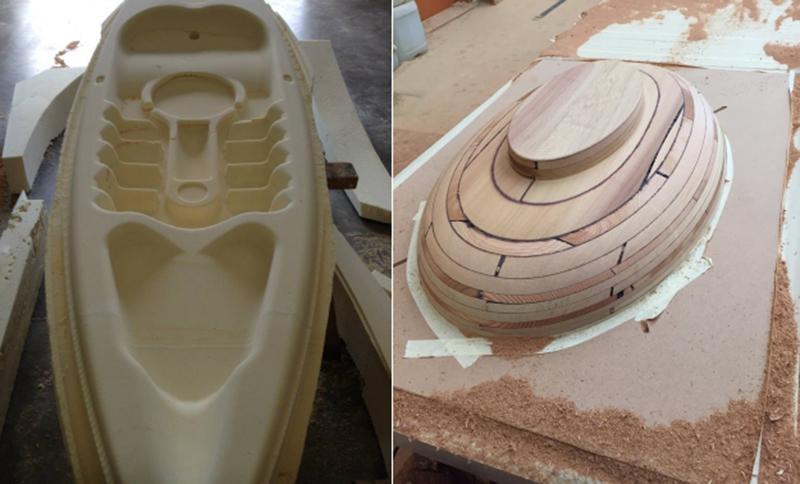

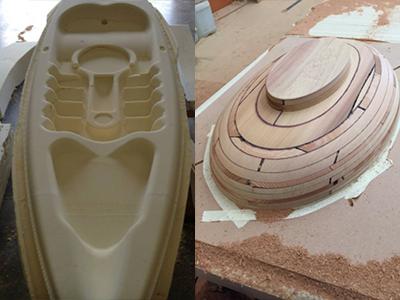

- Casting molds and models: wood molds, foam molds, aluminum molds, composite material molds, LFC molds, sand molds, etc.
- Sculpture: 3D characters, head sculptures, exhibition models, cartoon sculptures, props, etc.

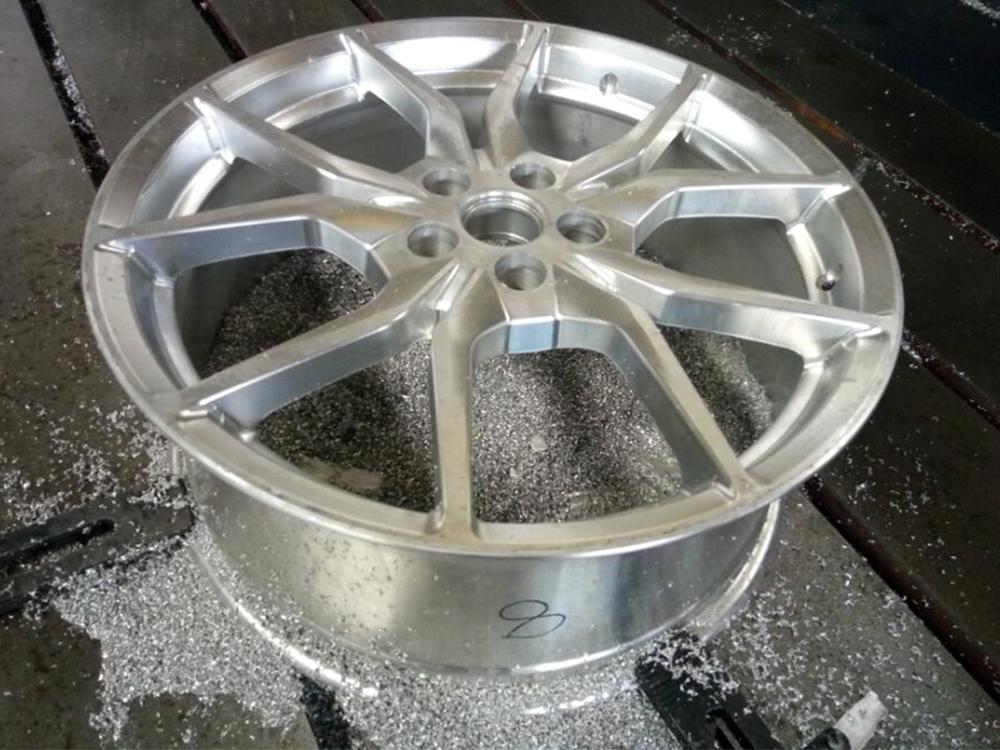

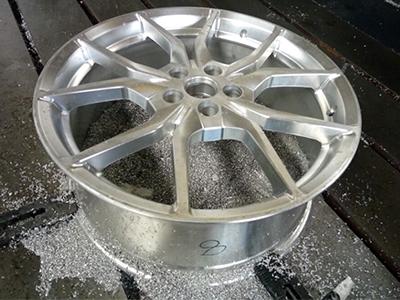

- Auto part: auto parts and auto molds.

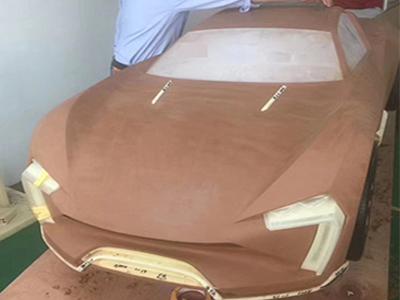

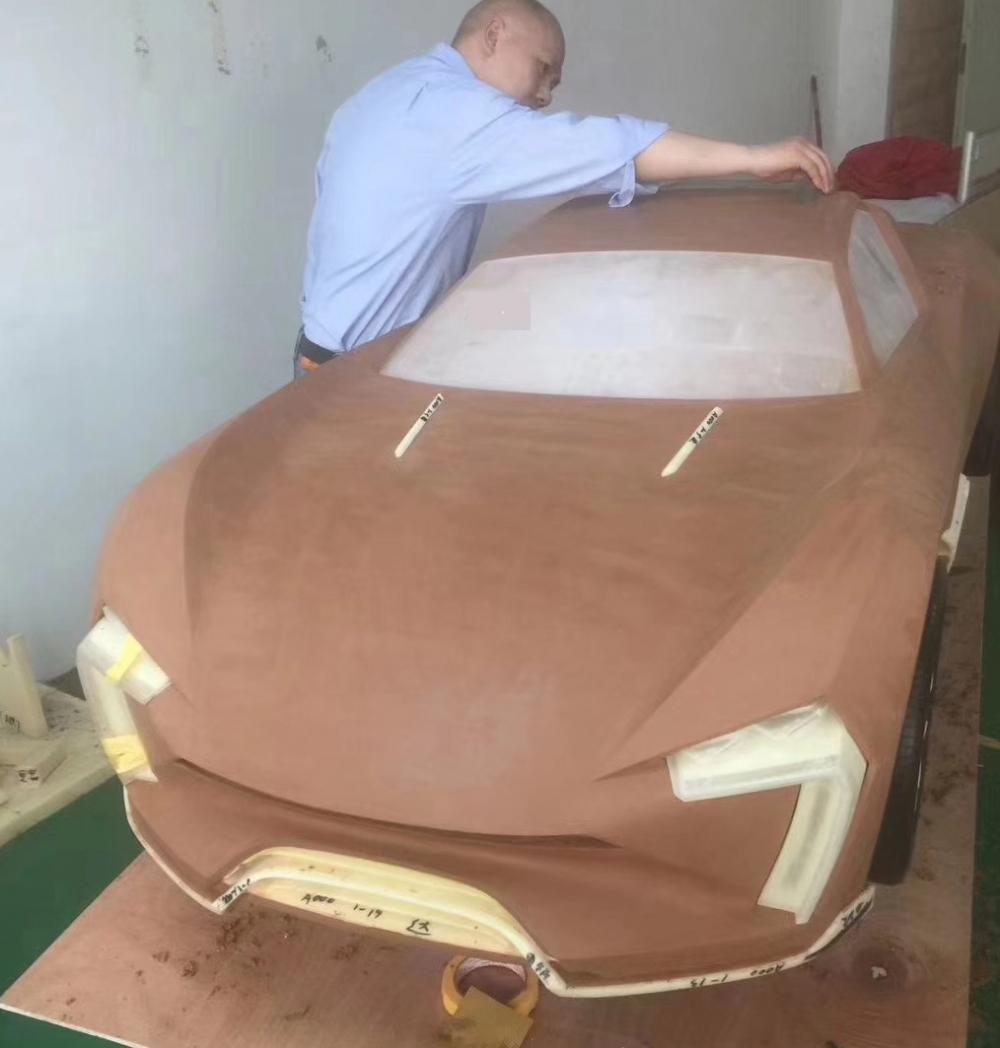

- Model design: car model, aircraft models and ship models.
- Wind power industry: impeller blades, pump models, etc.

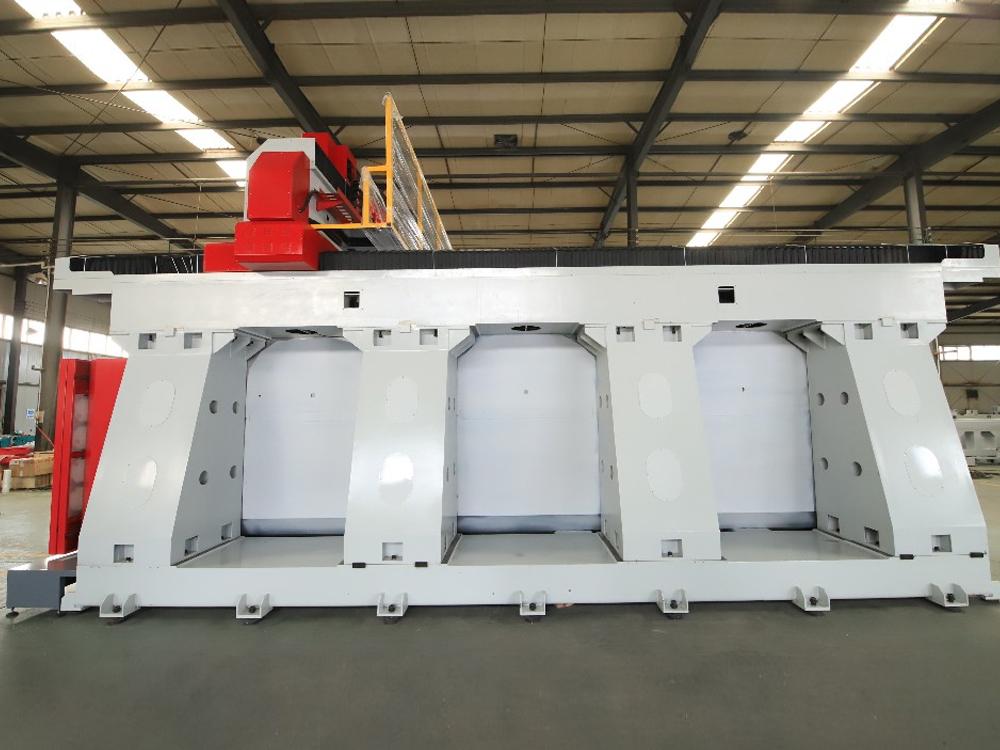

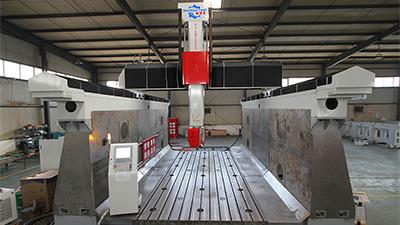

The heavy-duty frame ensures maximum stability during 5-axis processing.

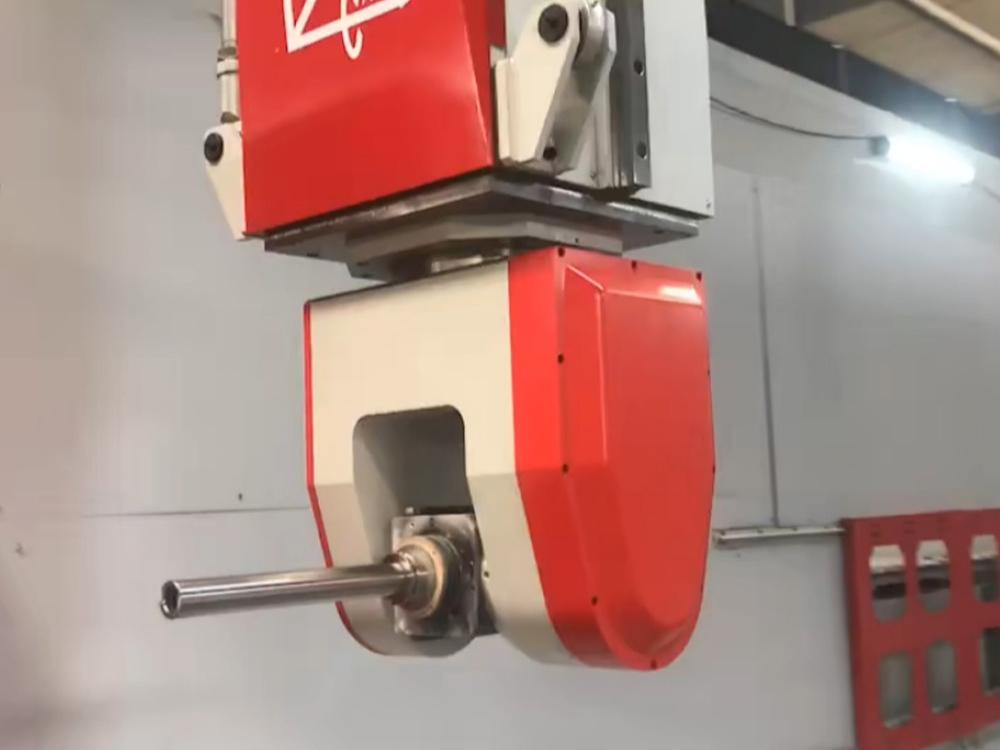

With five axis configuration, workpieces can be processed from all directions

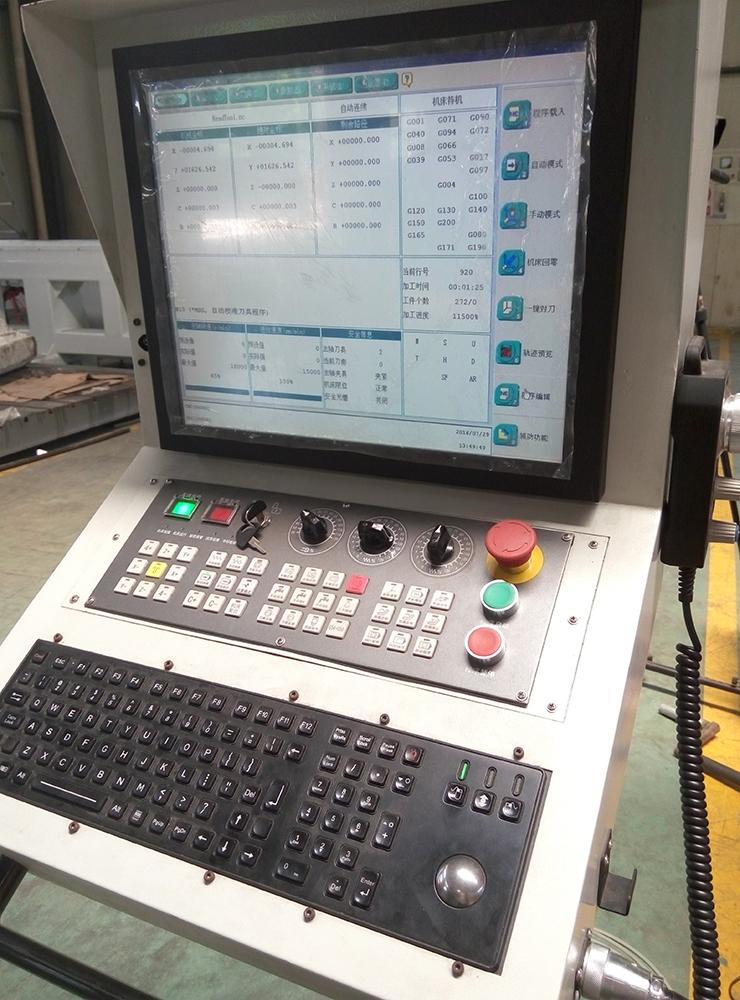

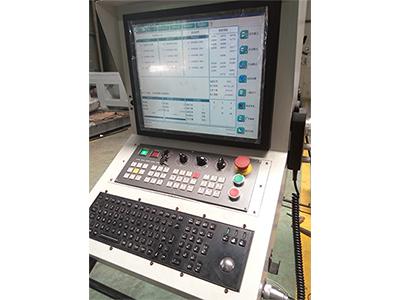

5-axis control system supports RTCP function, maximizing operational precision.

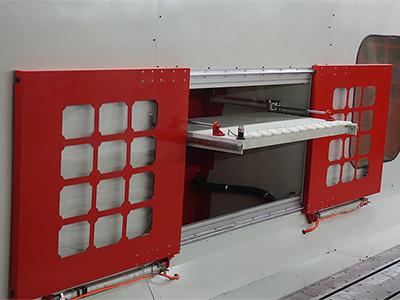

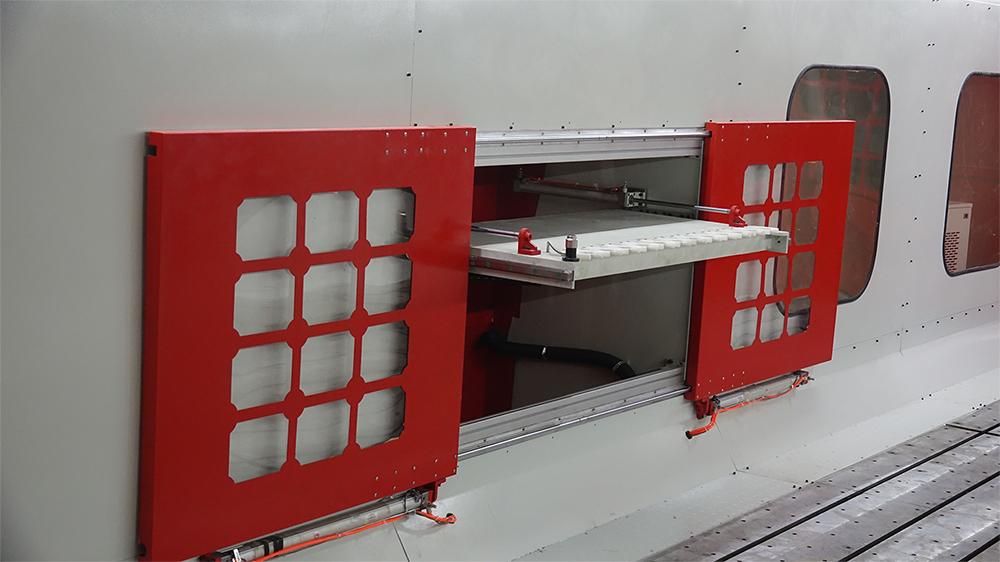

The 6 position linear type tool changer supports quickly changing tools during processing. It is convenient and labor saving.
| Model | F1-SG-3565T-5S |
| XY-axis stroke | 3500x6500mm Optional（2500x4000mm,3000x4000mm） |
| Z-axis stroke | 2200mm |
| Software | POWERMILL/UG |
| Package dimensions | 8100x2280x2300mm |
| Weights | 25000 kg |

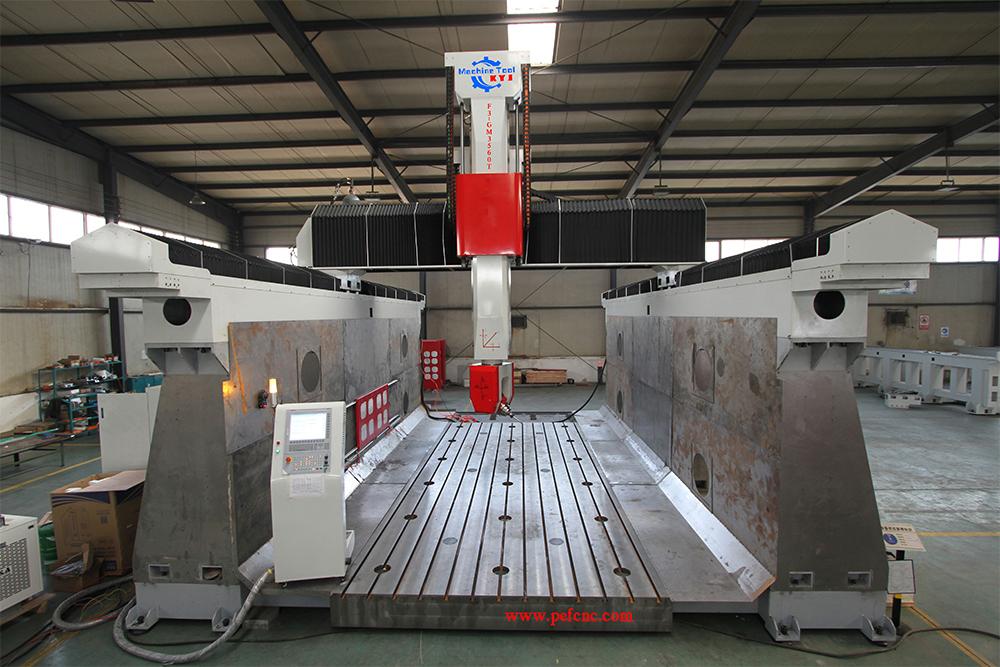

- Cast iron table
- Yasukawa servo motor
- Taiwan Syntec 5-axis CNC Control System or Lynuc System (Optional)
- Micno Inverter
- Power-mill Software
- 15kW/24kW Italy Omlat water cooled automatic tool change spindles (Optional)
