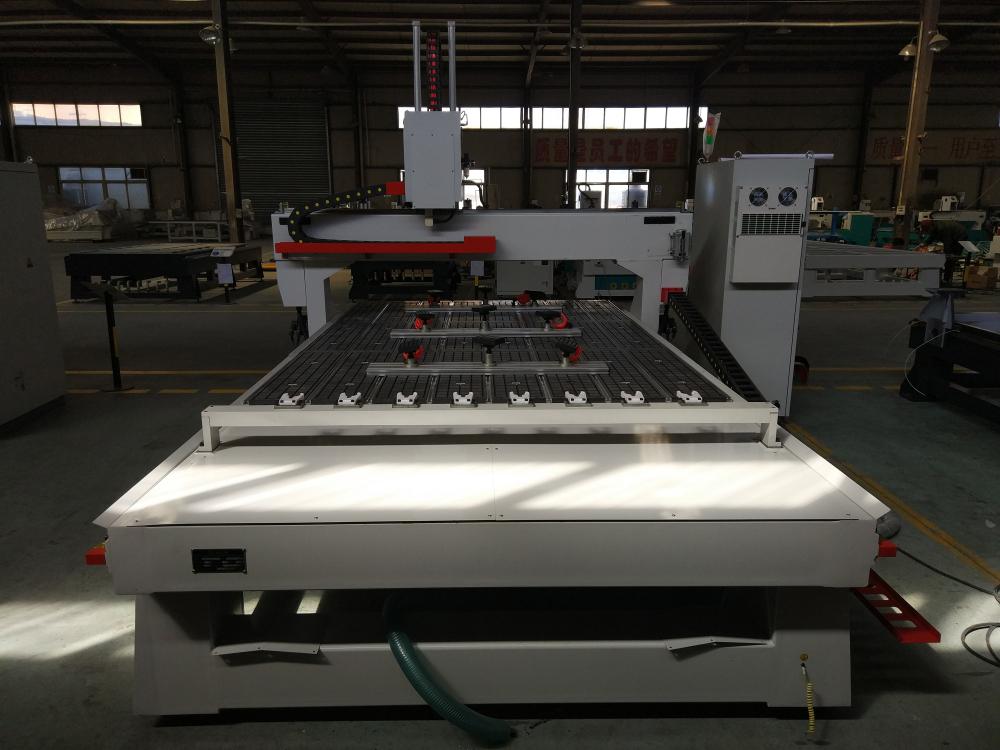

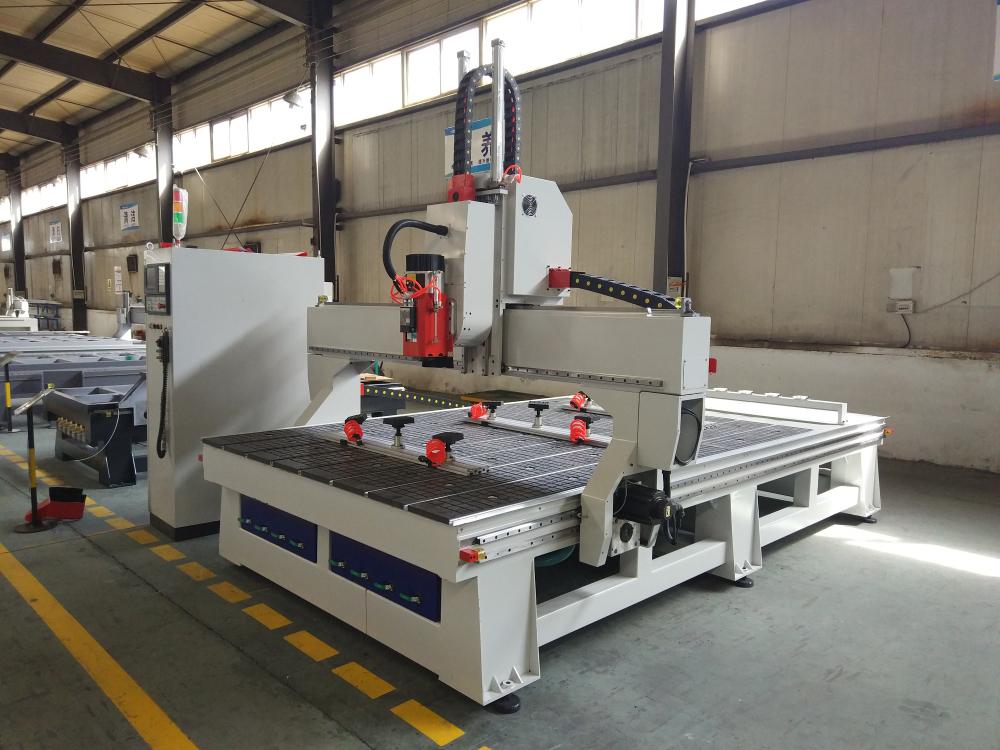

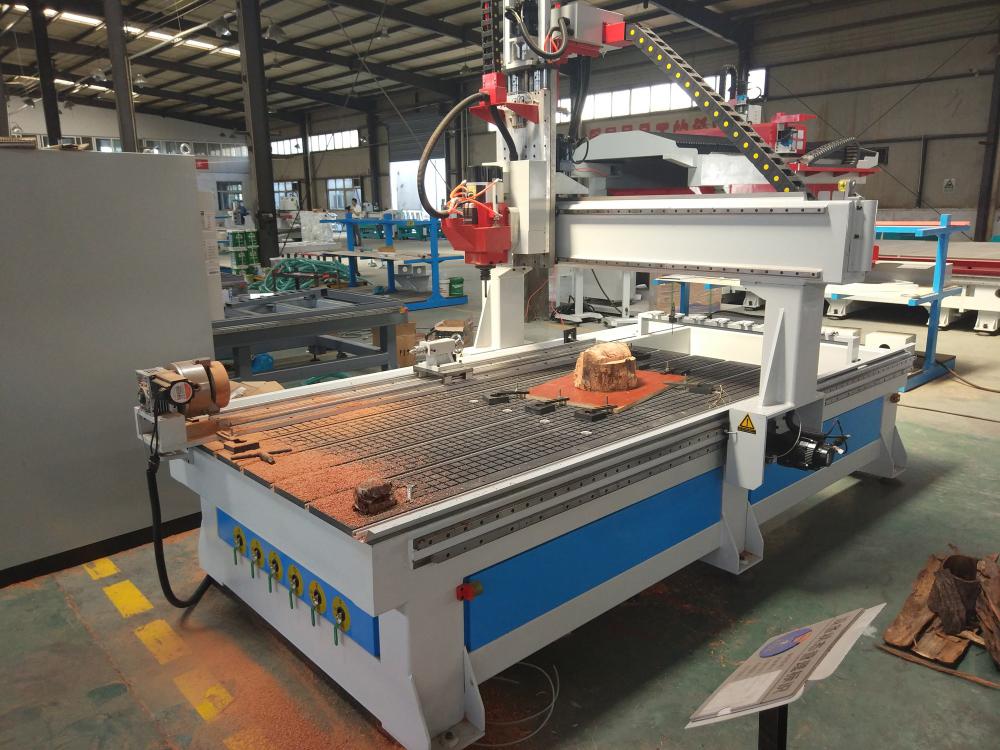

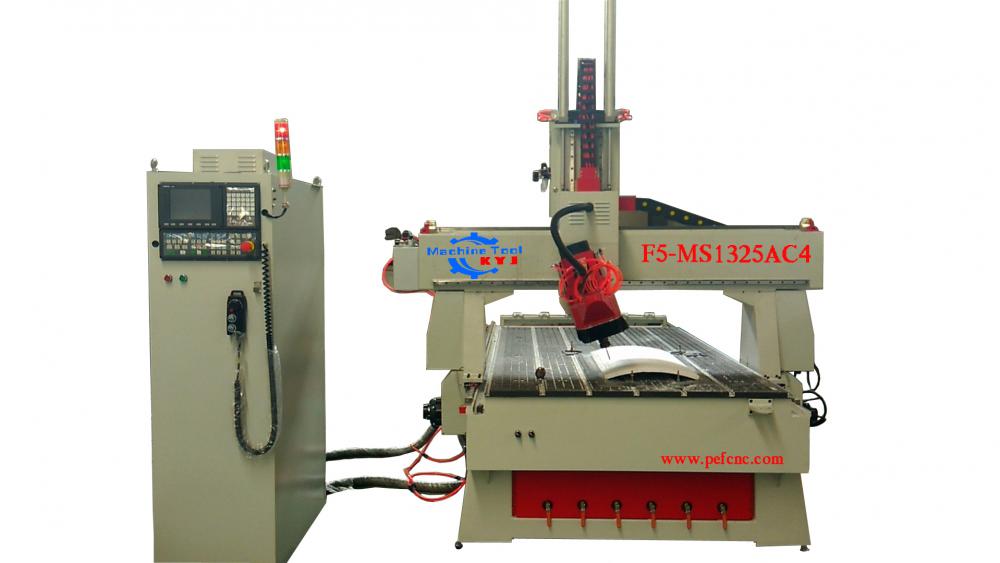

4 Axis CNC Router, MS1325AC4 Series

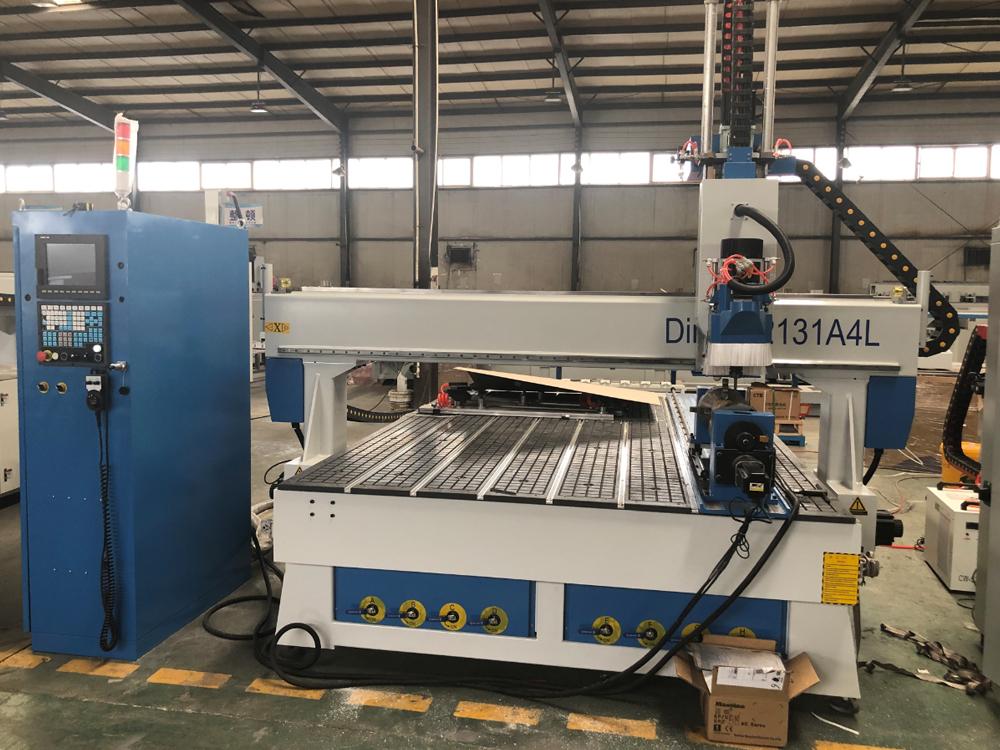

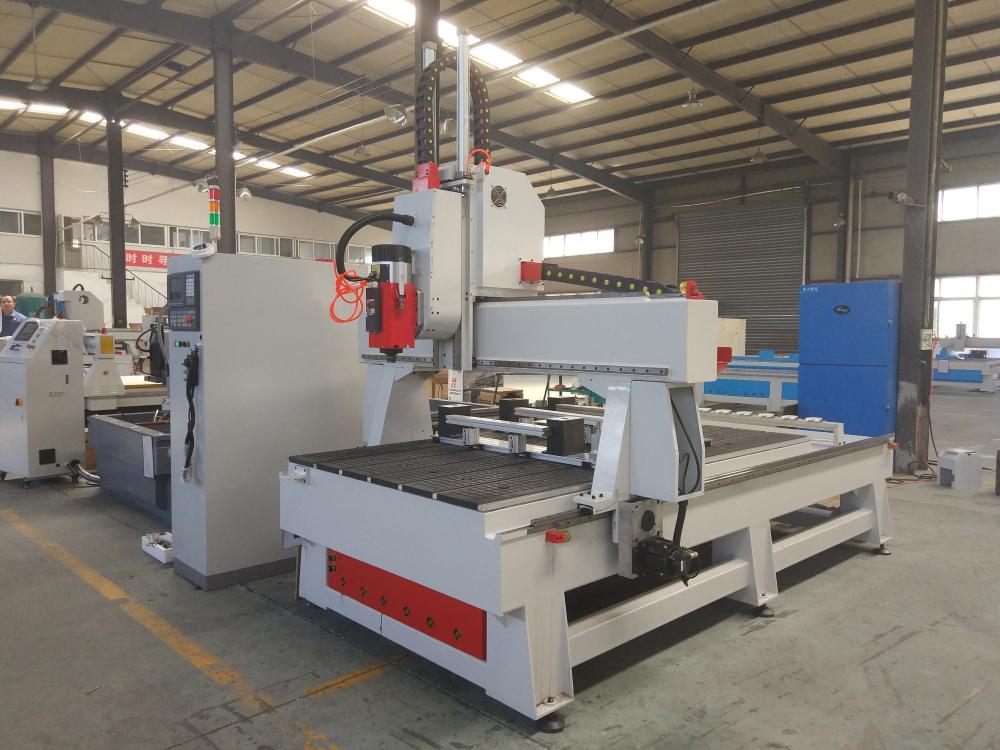

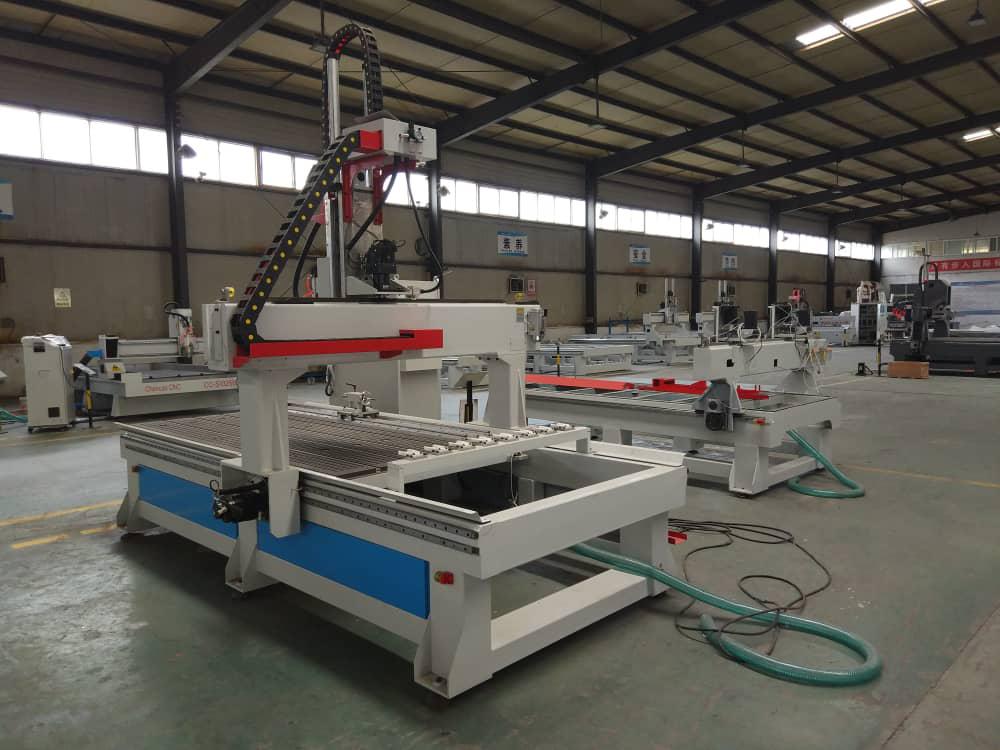

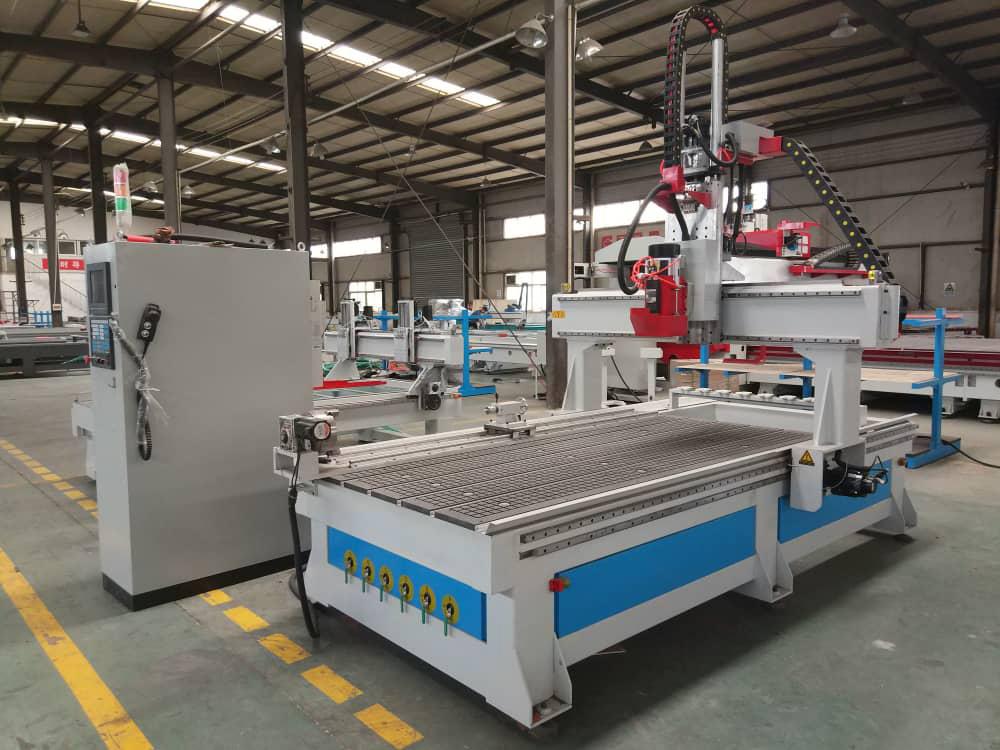

Our 4 axis CNC router features a high-precision XYZ-A 4-axis linkage control system with an A axis that can rotate within a range of ±90°. The flexibility of the equipment allows it to process various irregular and curved surfaces. The multifunctional machine can carry out several processes including slot milling, punching, cutting, and carving.

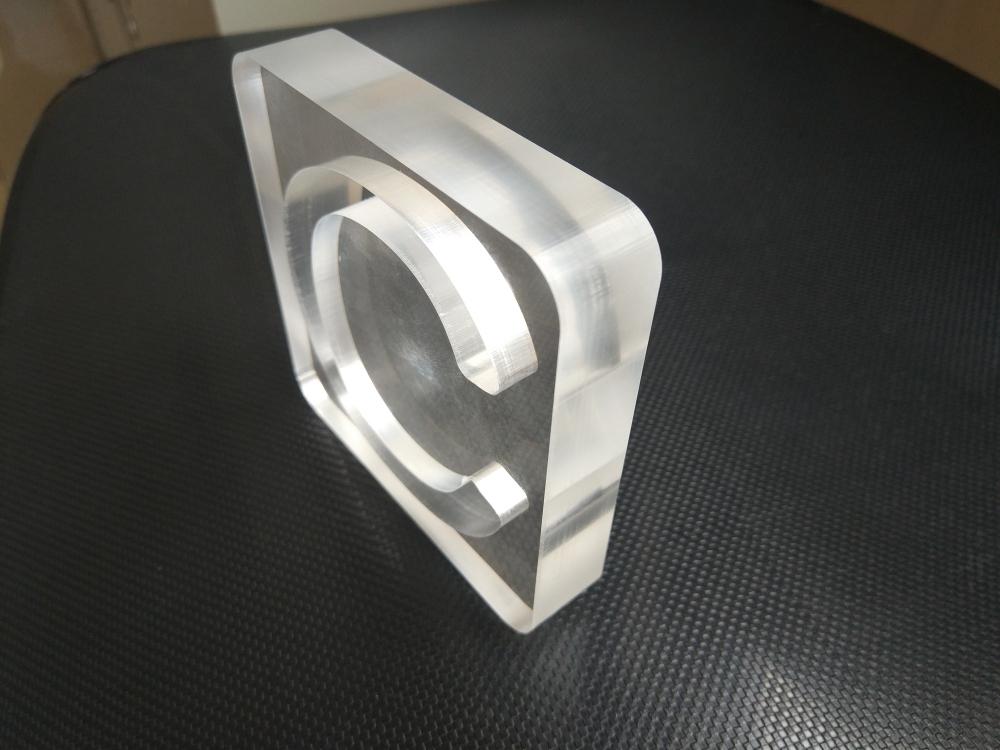

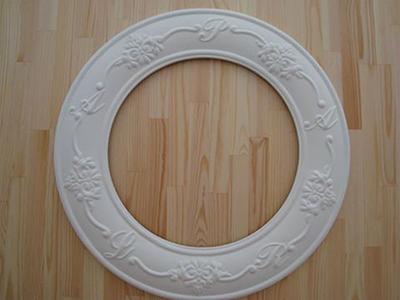

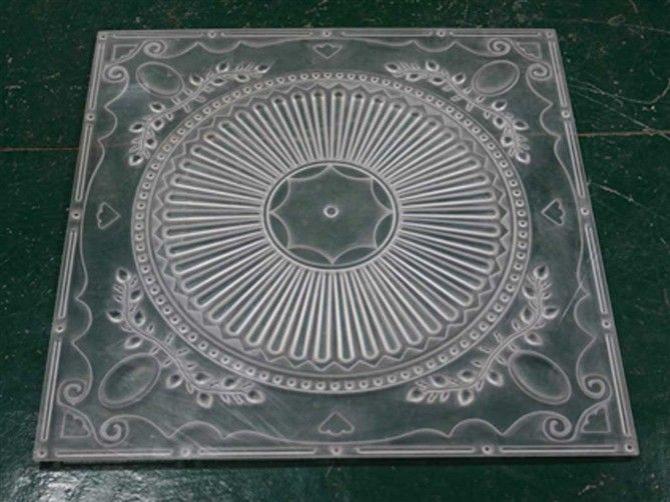

Foam, plastic, glass fiber, wood, etc.

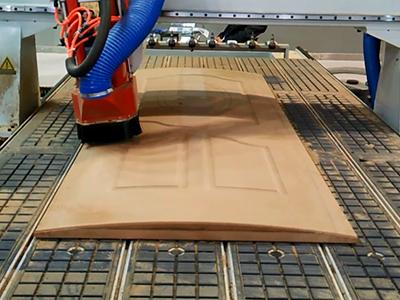

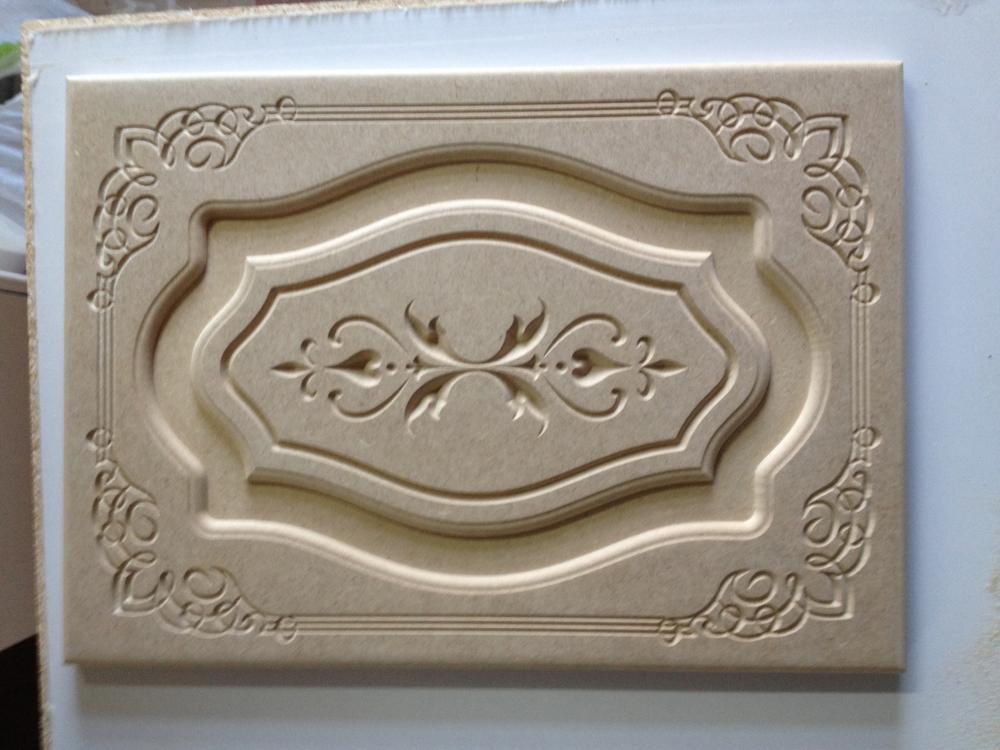

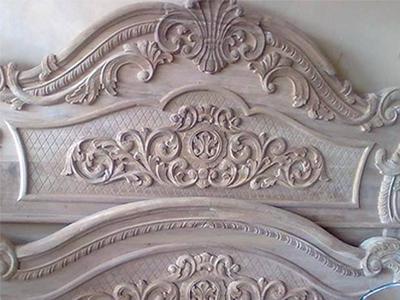

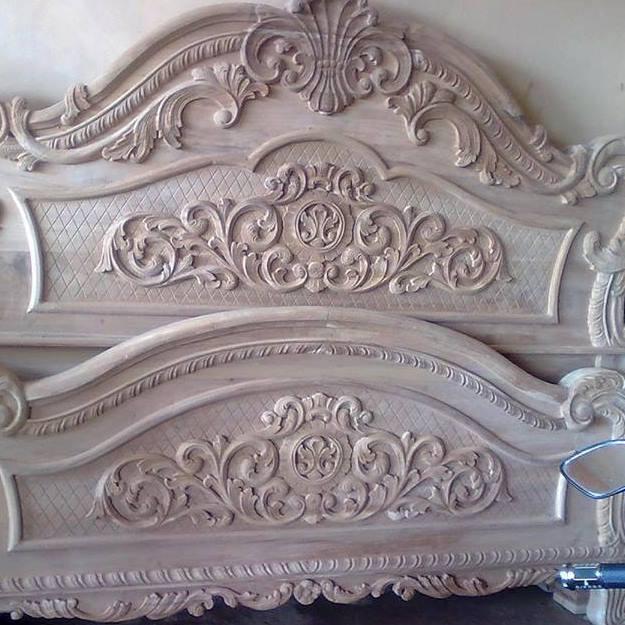

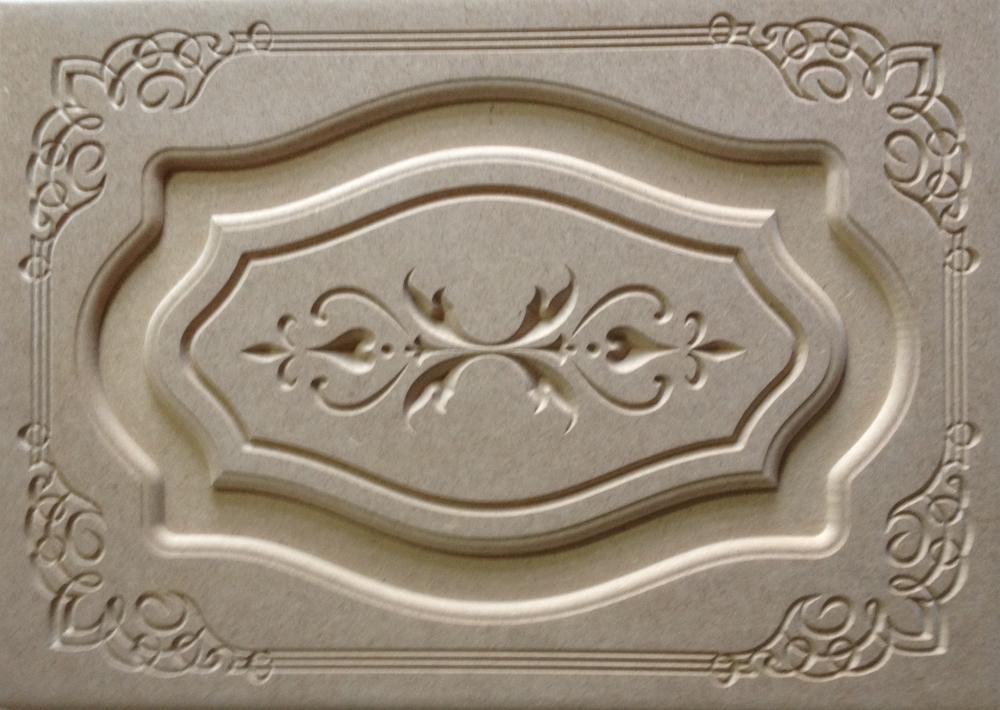

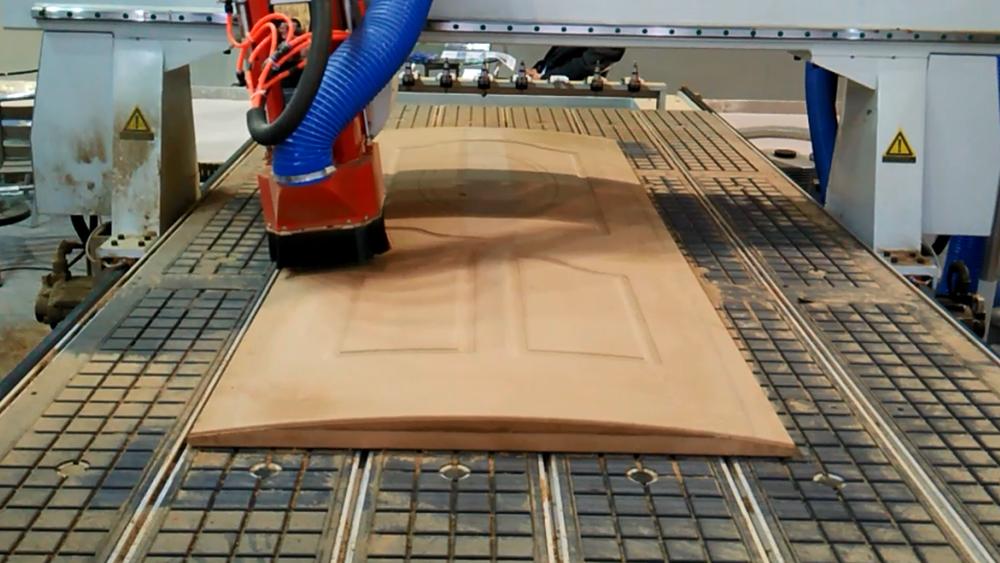

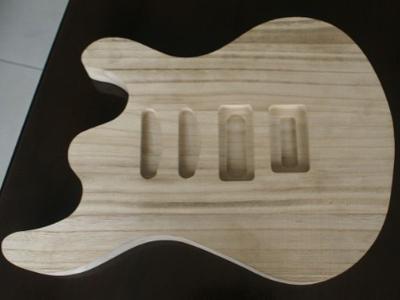

- Woodworking industry: door, furniture, loudspeaker boxes, musical instruments, etc.

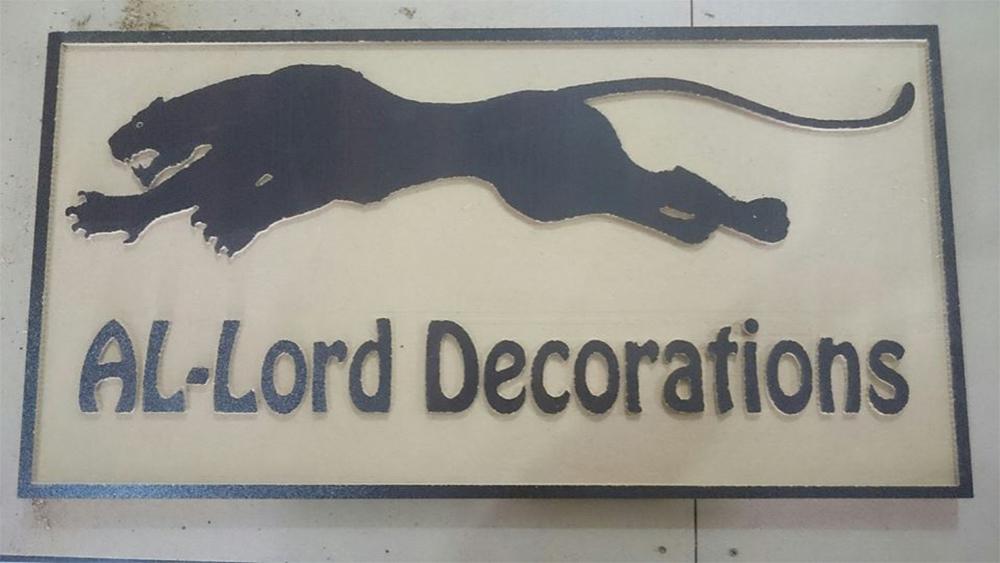

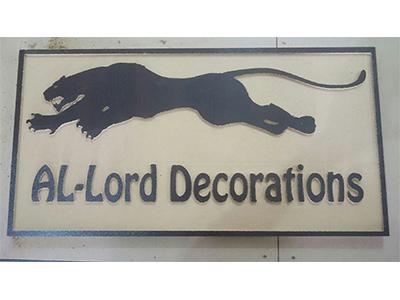

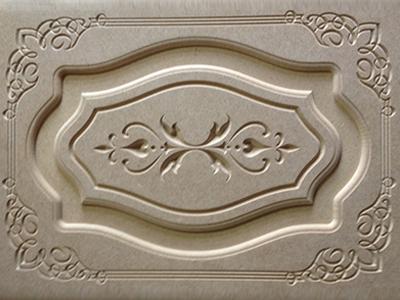

- Advertising industry: 3D billboards, signage, medals, badges, traffic signs, letter punches, logos, etc.

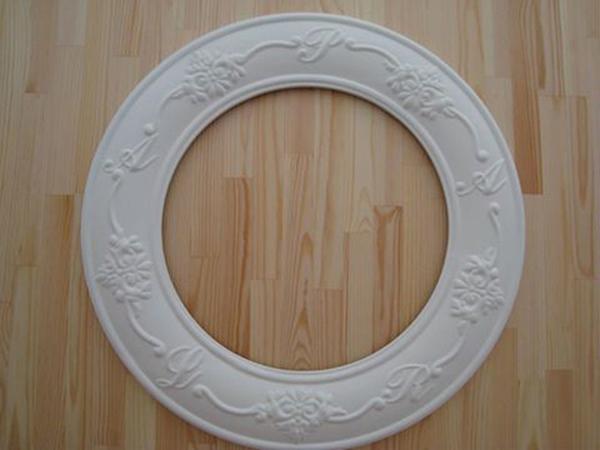

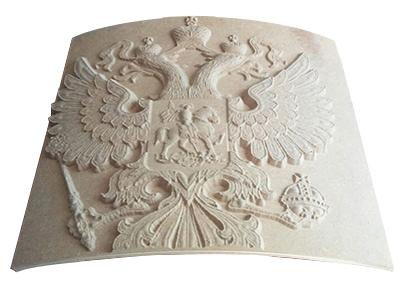

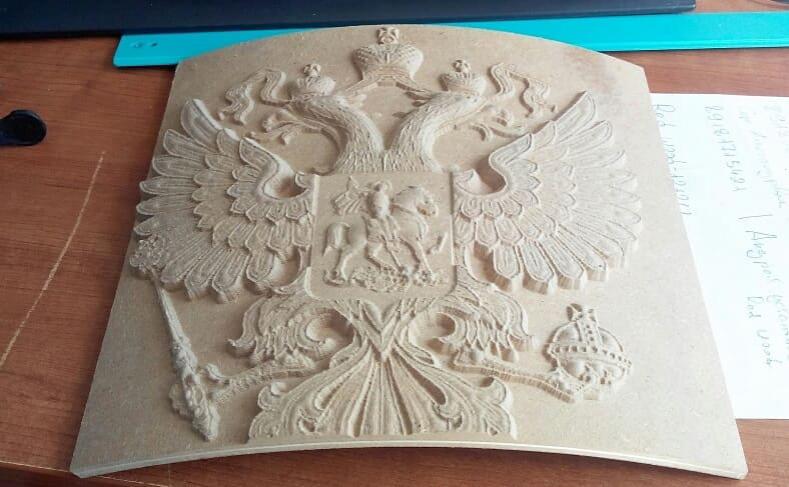

- Model industry: various 3D models, landscape models, exhibition models, architecture models, car models, etc.

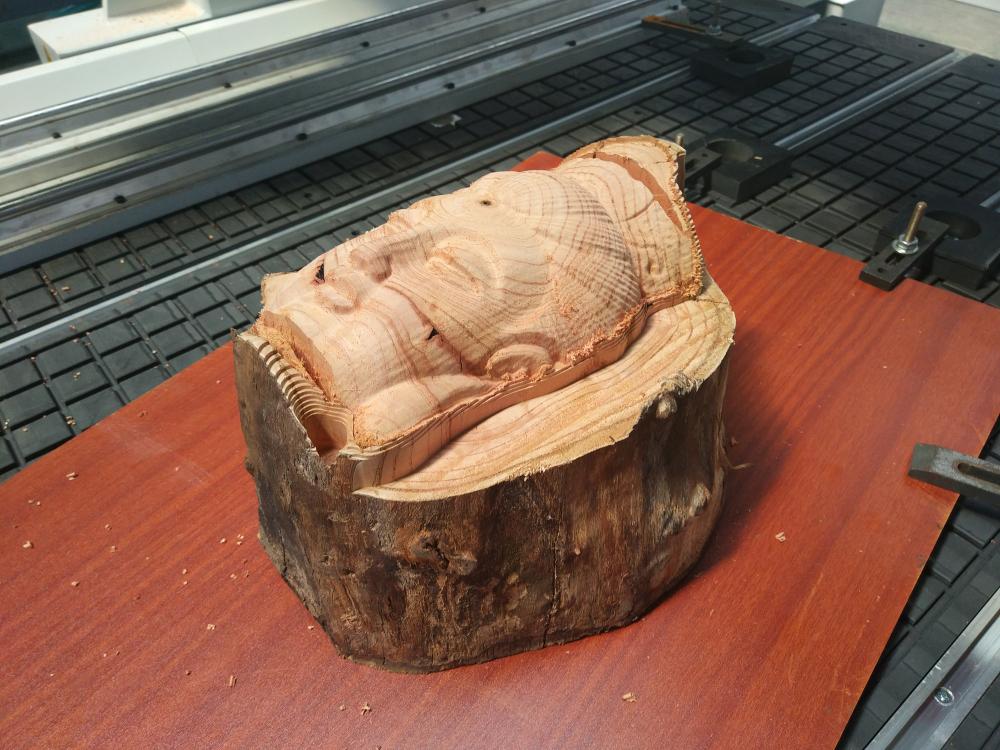

- Sculpture: human sculptures, character sculptures, fauna and flora sculptures, etc.
- Film industry: movie props, activity props, etc.
- Other industries: cutting and curving the 3D surface and outline of gift wrapping, tabletops, sports equipment, wood products, etc.

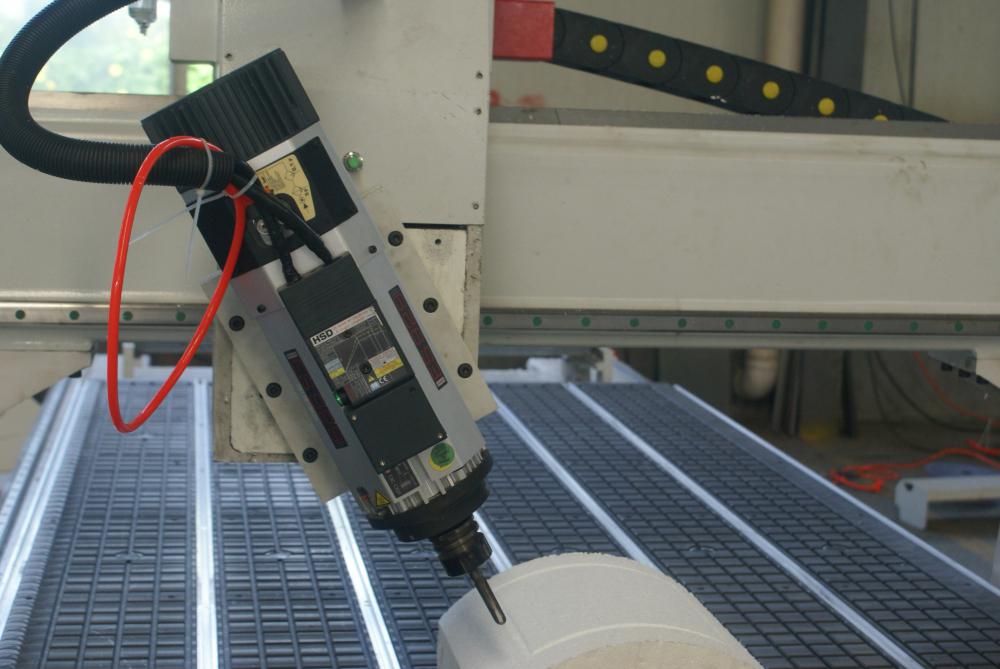

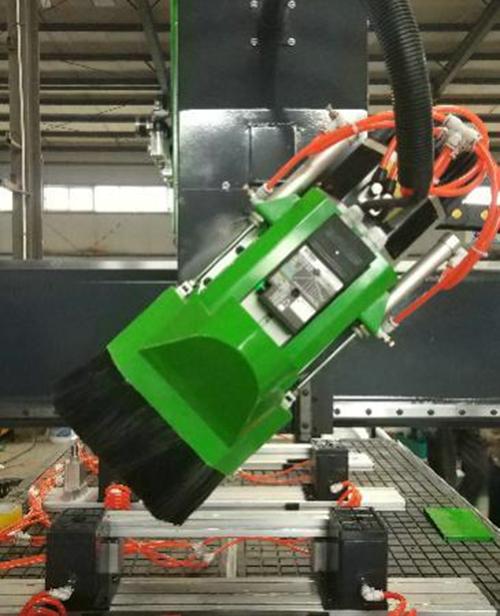

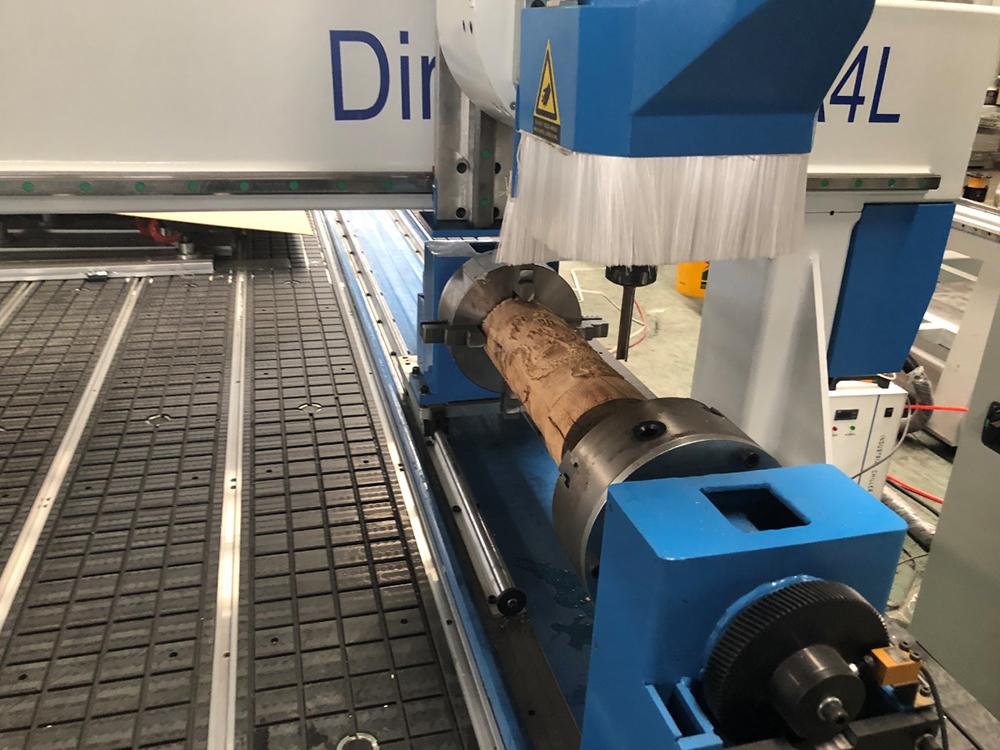

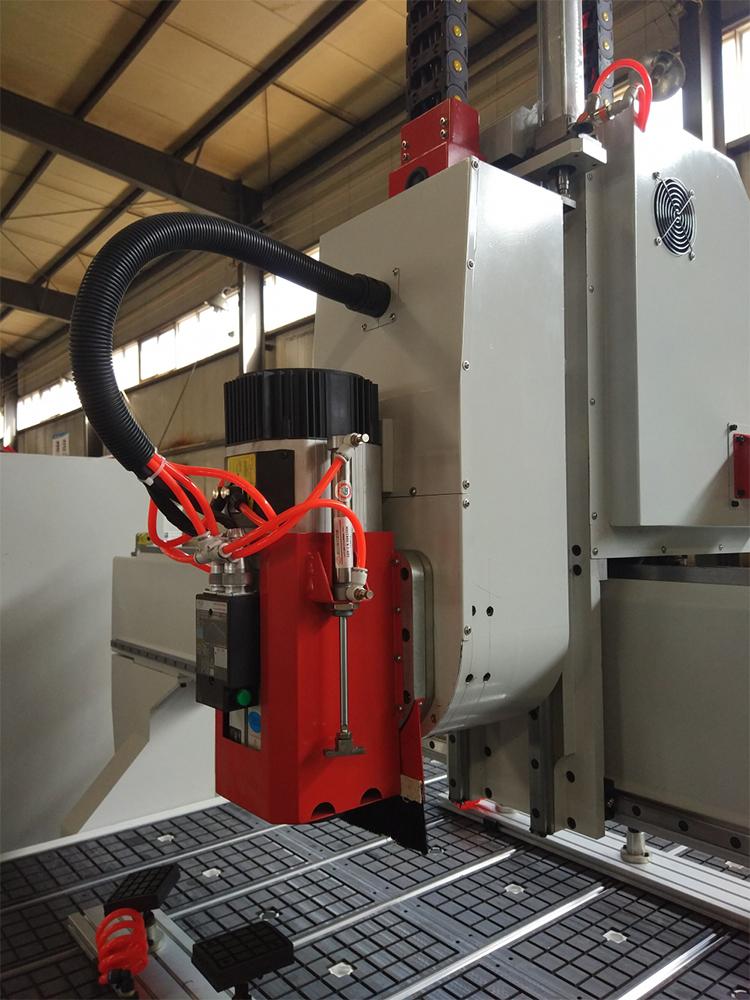

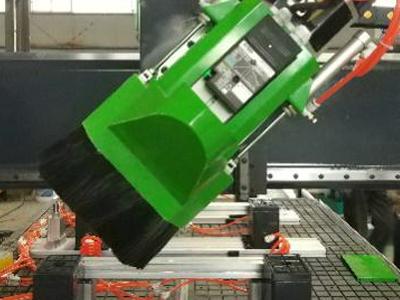

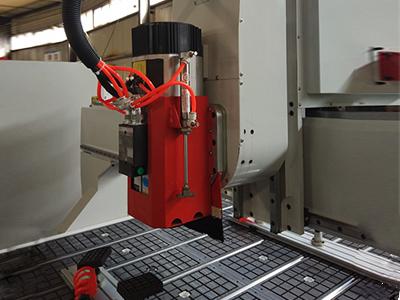

The spindle can rotate from -90°to 90° to realize various processes including slot milling, punching, cutting, carving, drilling keyholes, etc. with excellent flexibility.
The 4 axis CNC router is equipped with a 24000 RPM spindle and supports automatic tool changing so as to maximize processing efficiency.

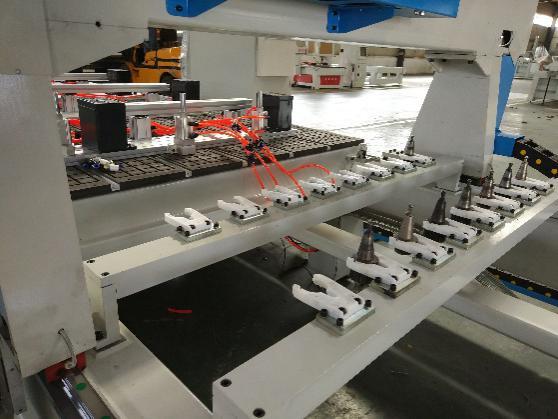

The standard 8 position tool changer can hold 8 tools and change them quickly as needed, eliminating the need for costly downtime.

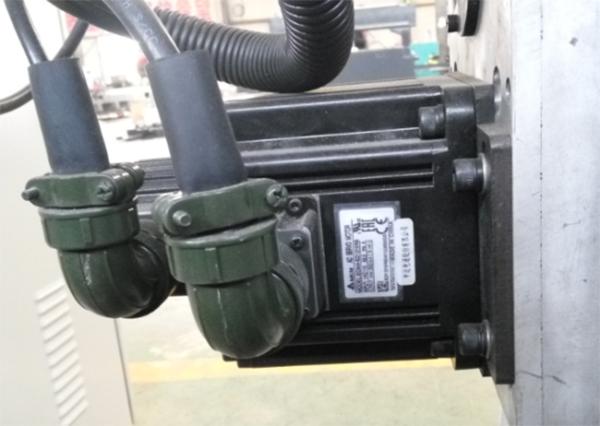

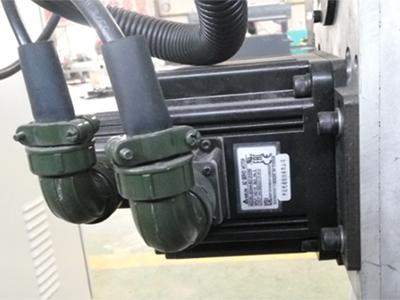

Equipped with a servo motor made in Taiwan or reducer made by Shimpo to ensure the processing speed and accuracy of the equipment.

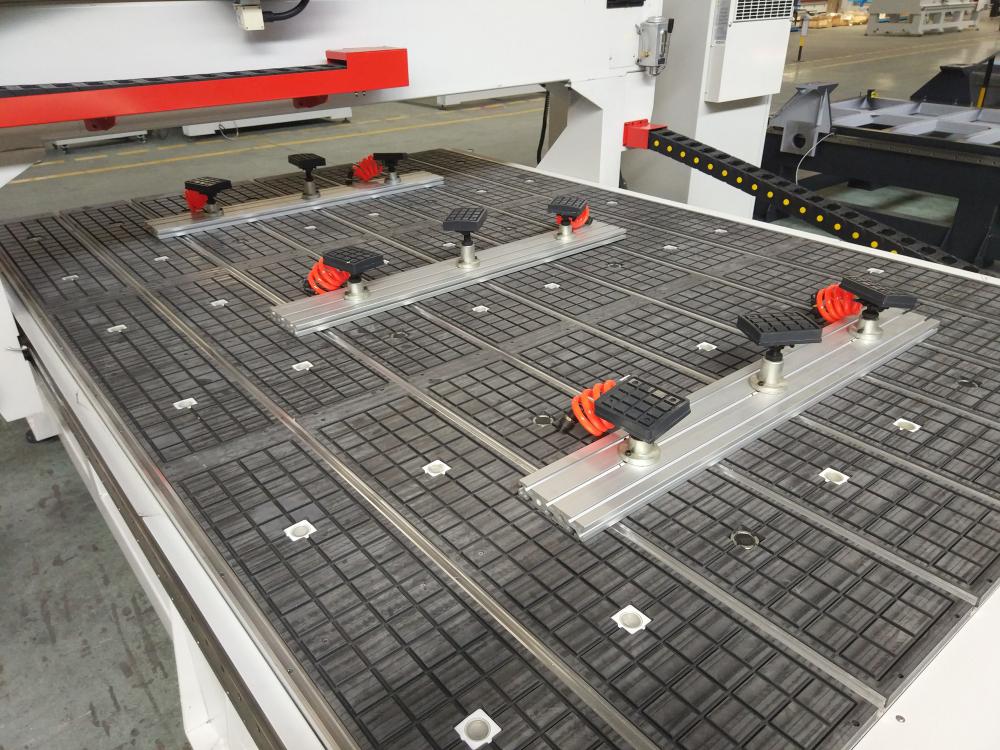

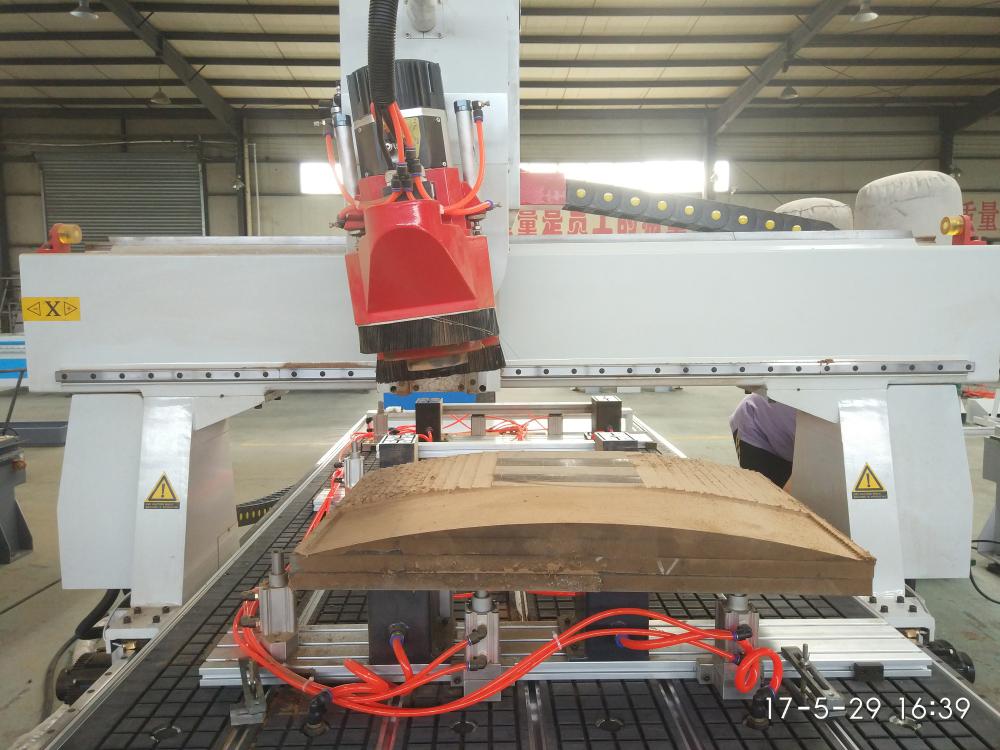

The aluminum alloy table is equipped with an adsorption strip to firmly fix irregular workpieces in place so they can be processed with maximum accuracy and efficiency.

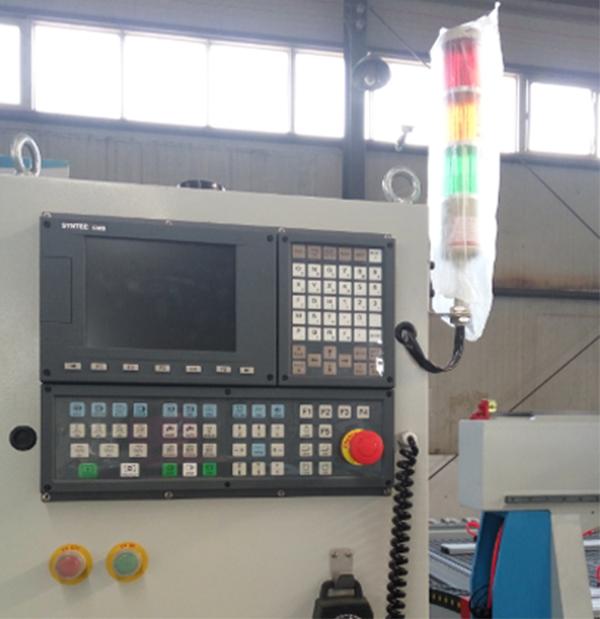

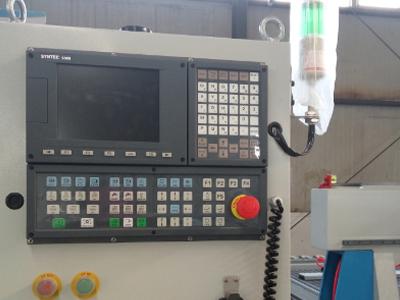

The 4 axis CNC routers are equipped with Taiwanese Syntec intelligent control systems.
| Series | 1325AC4 | 1530AC4 | 2030AC4 |
| Stroke | 2500*1300*400mm | 3000*1500*400mm | 3000*2000*400mm |
| Idle speed | ≥60000mm/min | ||
| Processing speed | ≥30000mm/min | ||
| Spindle power | 4.5Kw / 9KW | ||
| Spindle speed | 24000r/min | ||
| File format | G-code | ||
| Working voltage | 380/220V 3PH (Customizable) | ||
| Package dimensions | 2280X3800X2100MM | ||
| Weights | 1800 KGS | ||
- Vacuum pump
- Vacuum cleaner
