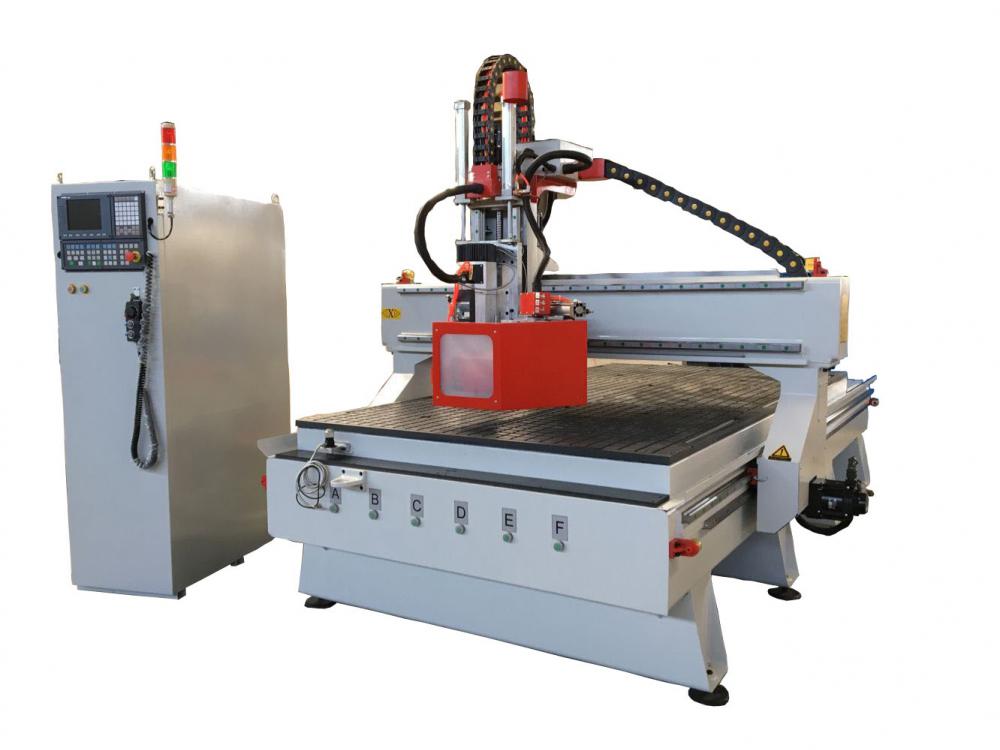

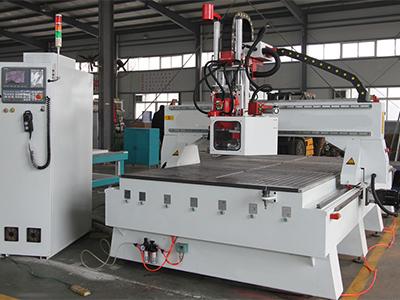

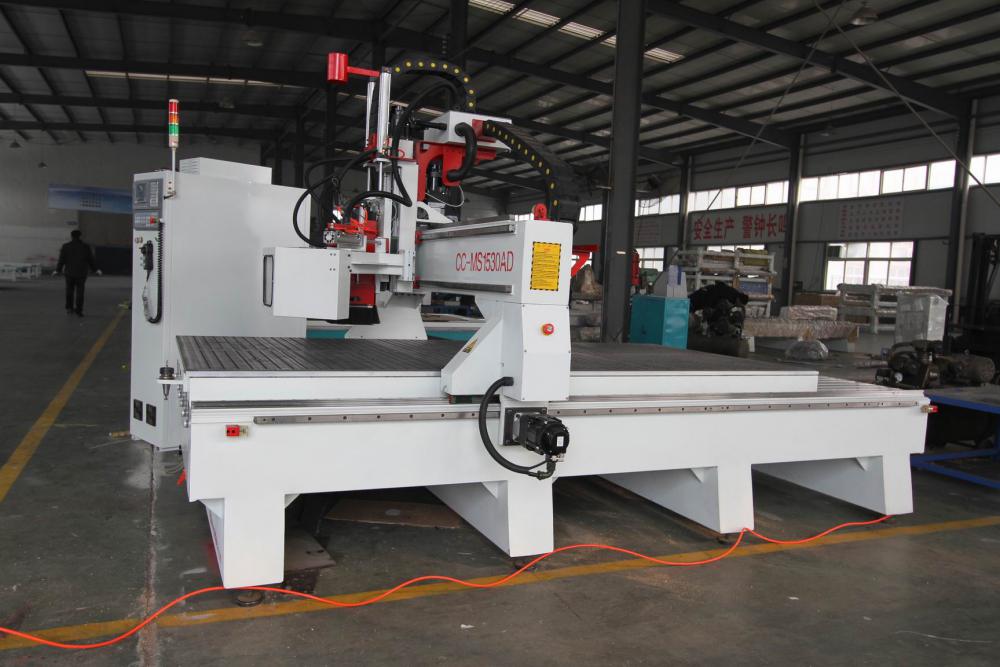

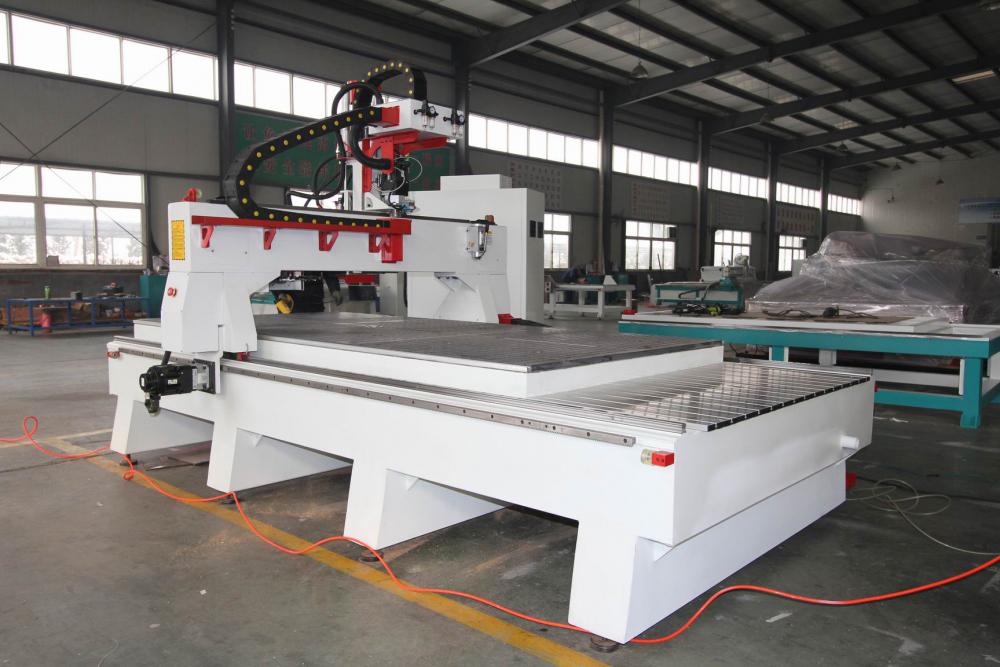

MS1325AD Series CNC Router/CNC Mill

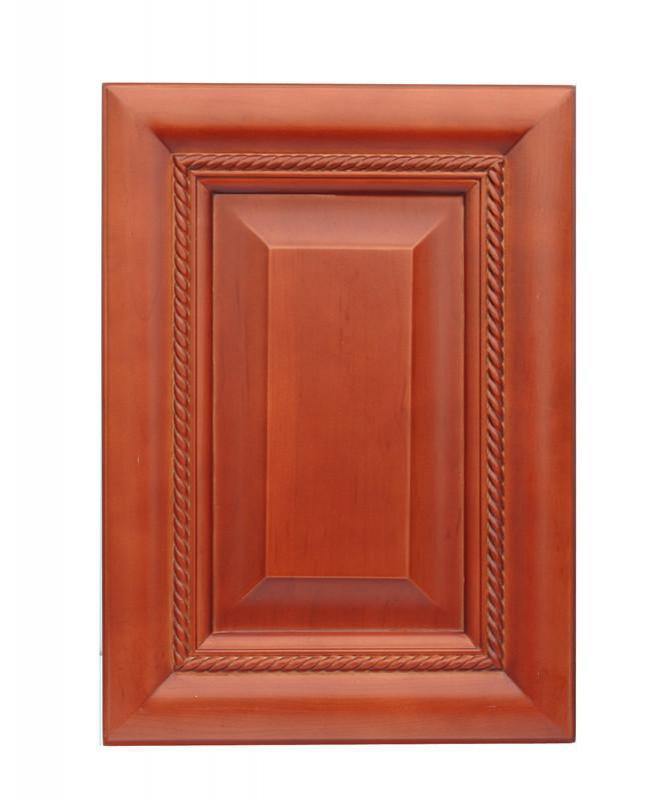

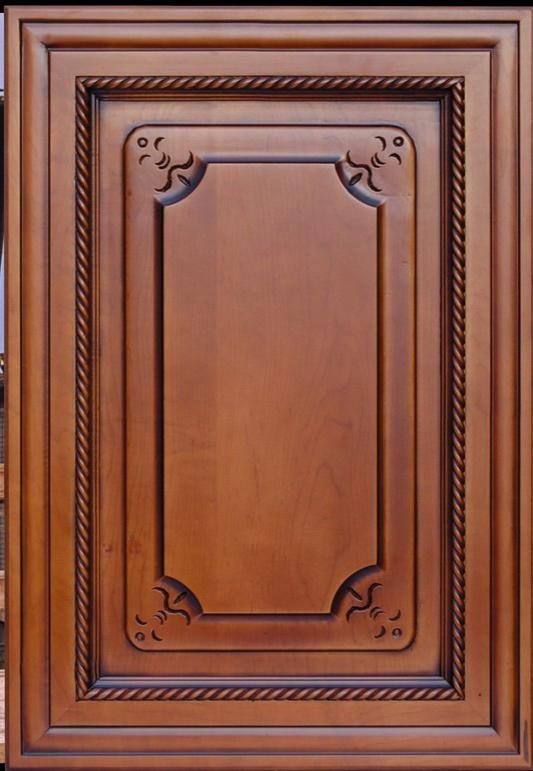

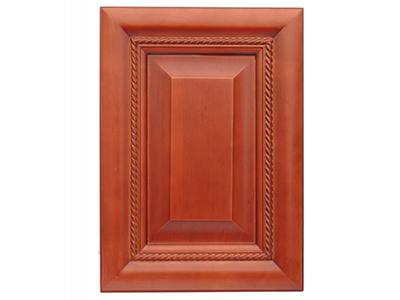

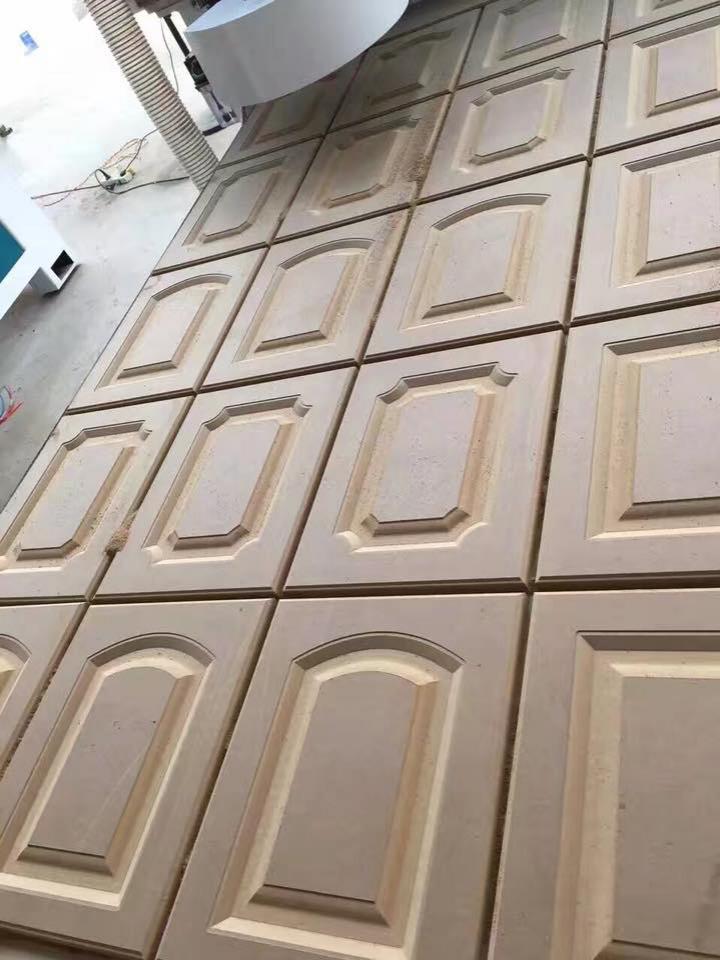

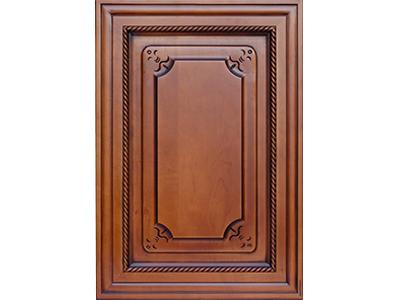

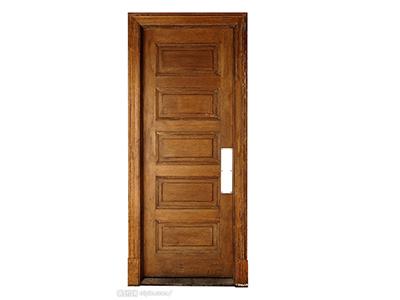

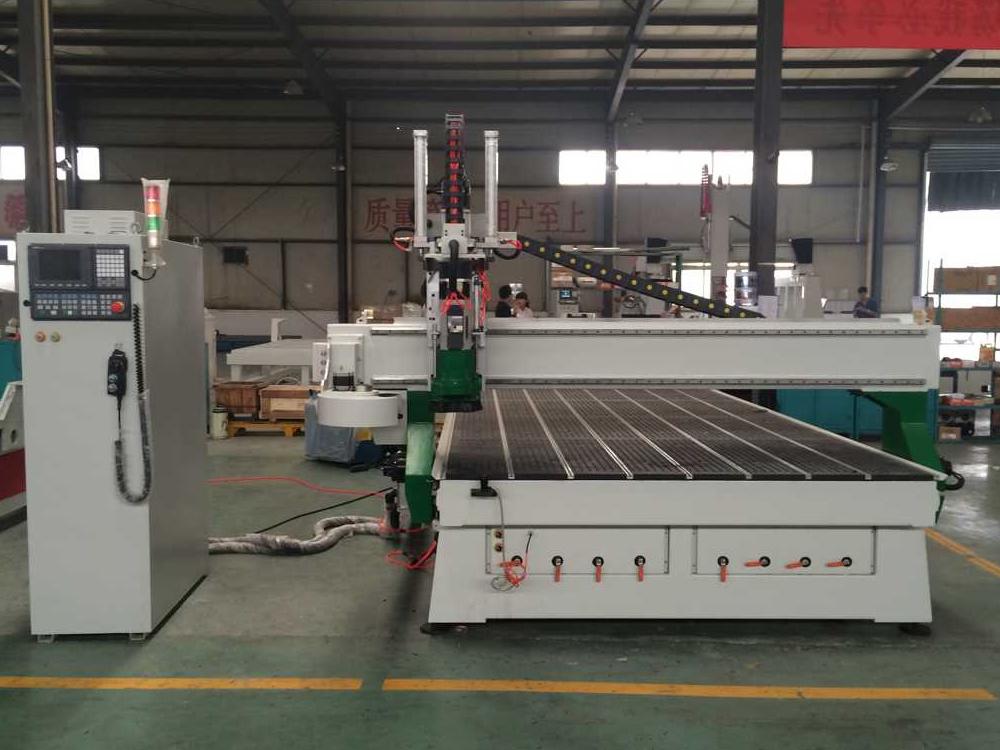

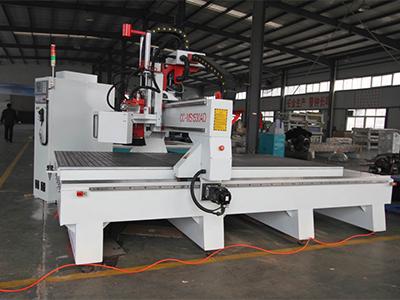

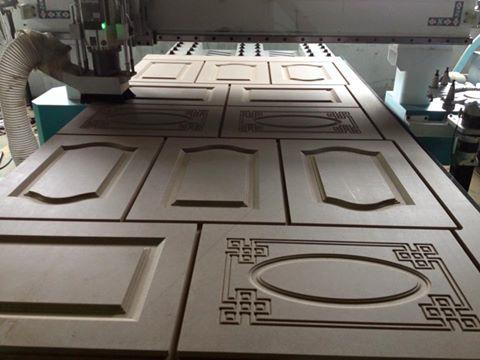

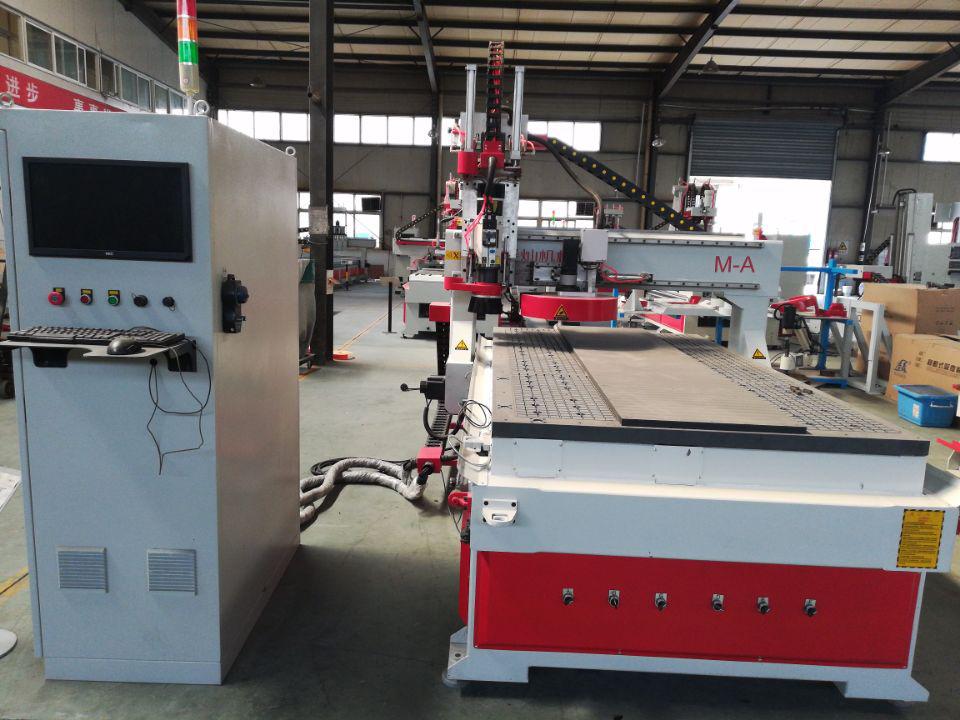

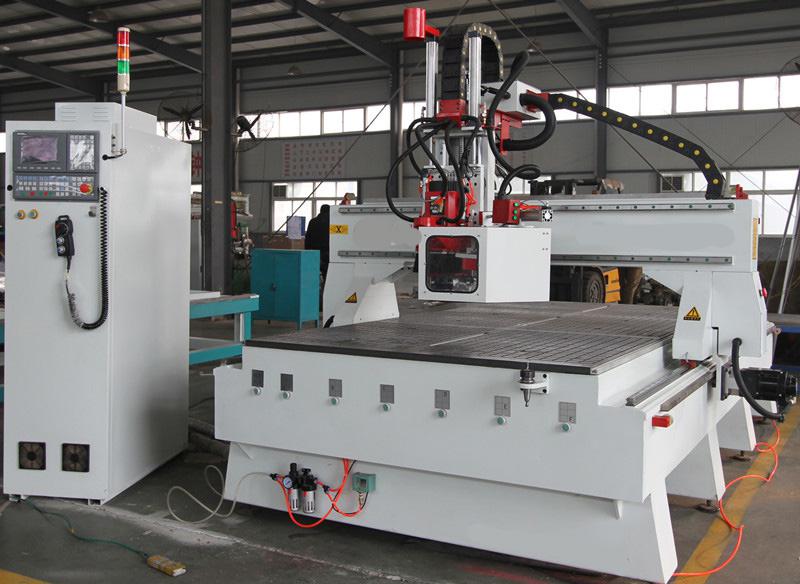

This CNC router is equipped with a disc-type automatic tool changer that moves in conjunction with the spindle to carry out a variety of processes, including carving, cutting, and drilling. It is widely used for manufacturing wood furniture, architectural décor and other items. The quick tool change significantly reduces processing time.

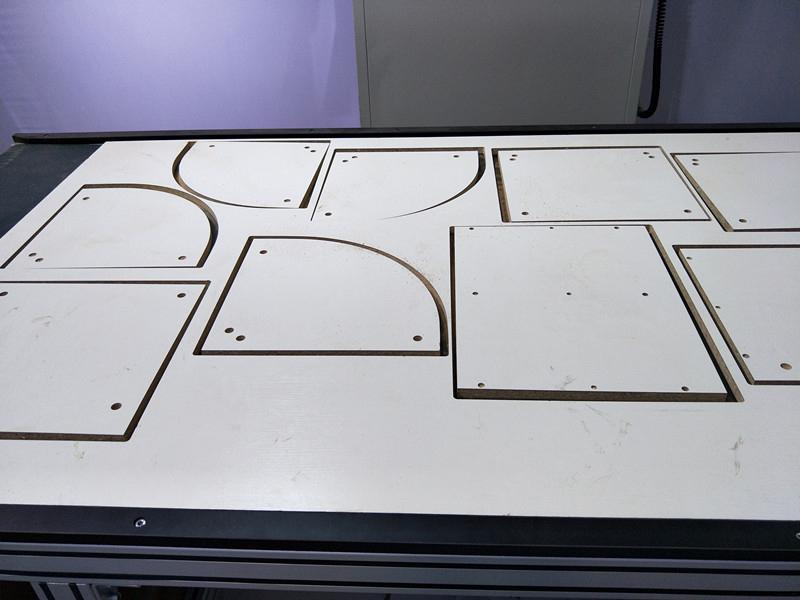

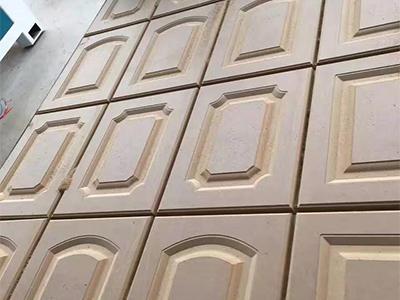

Wood, PVC, particle board, fiberboard, insulation board, plywood, polystyrene, acrylic glass, polymethyl methacrylate

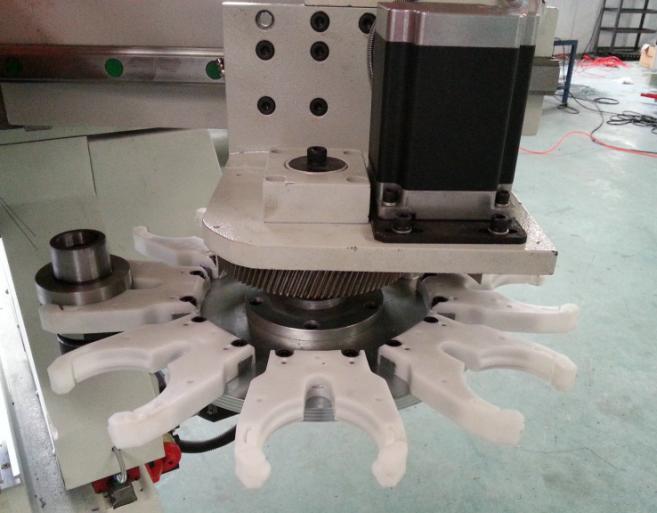

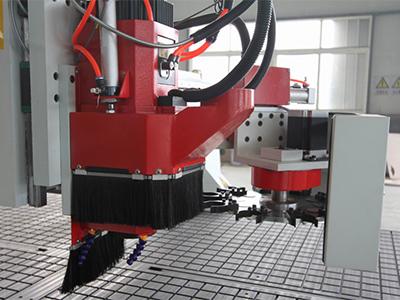

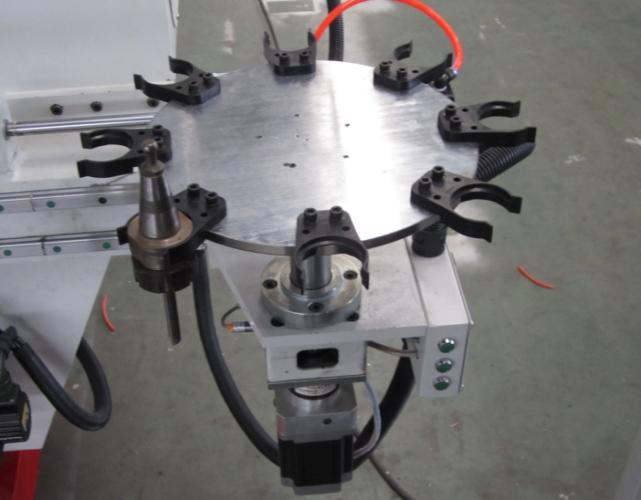

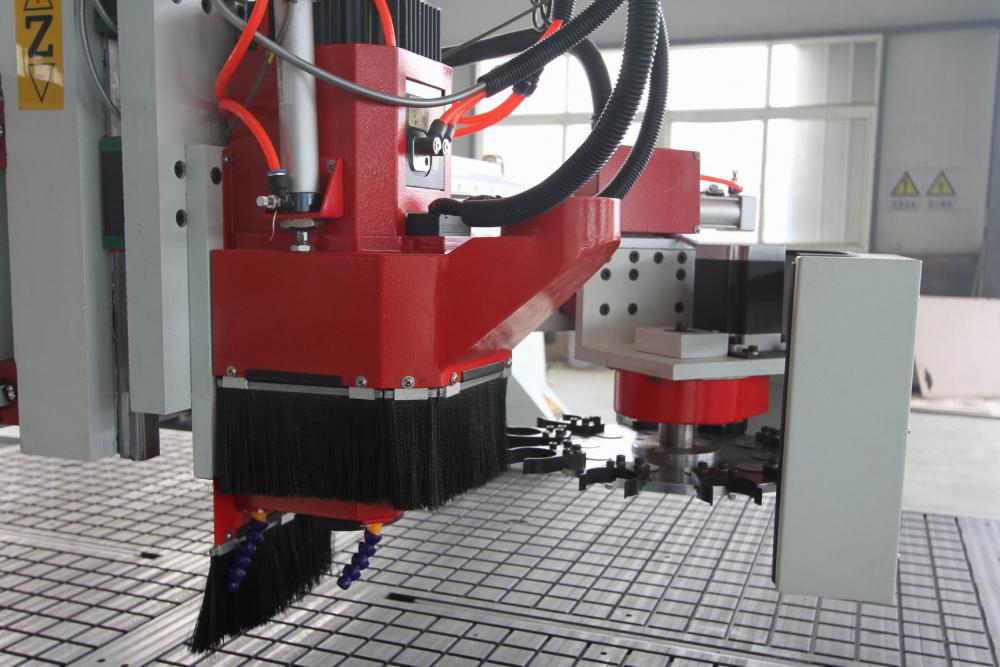

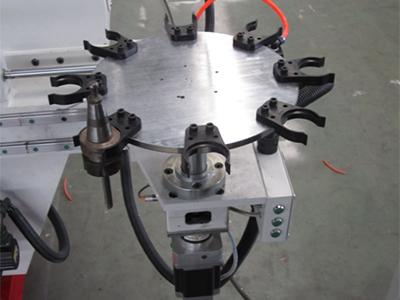

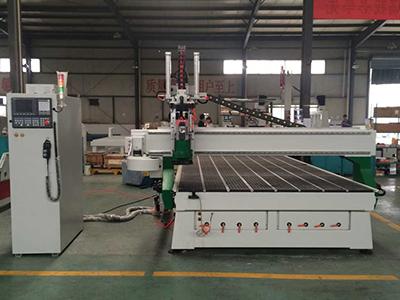

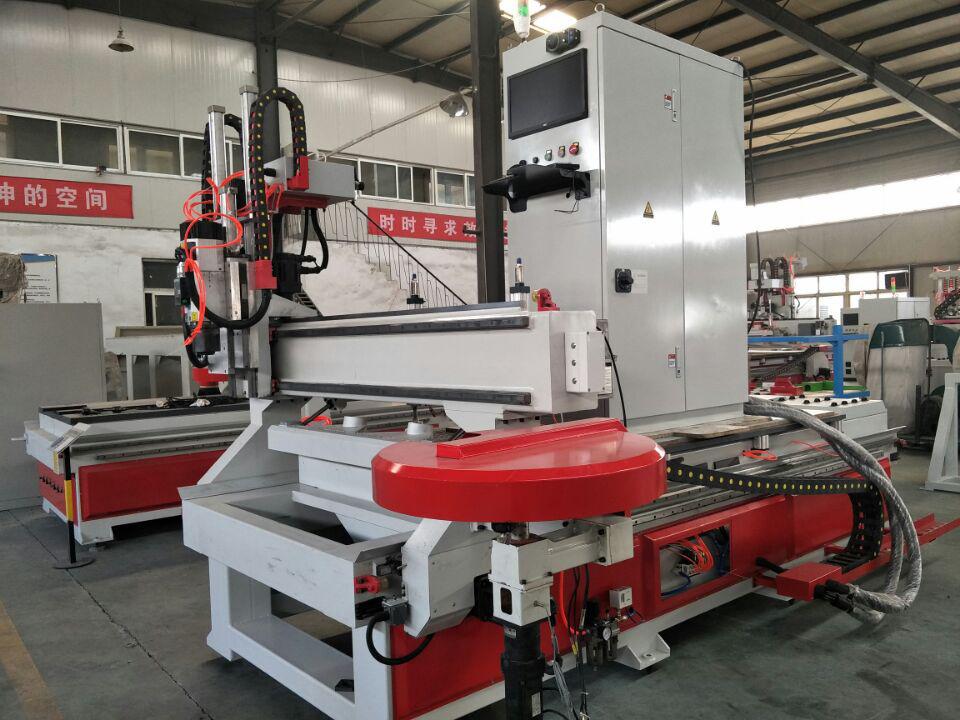

The disc-type automatic tool changer can hold up to 16 tools.

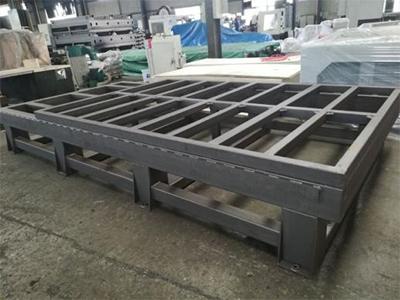

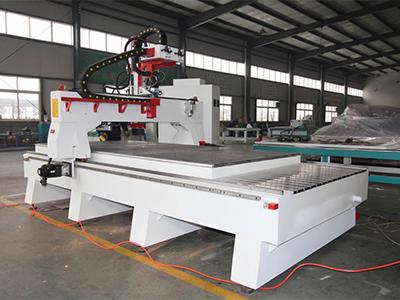

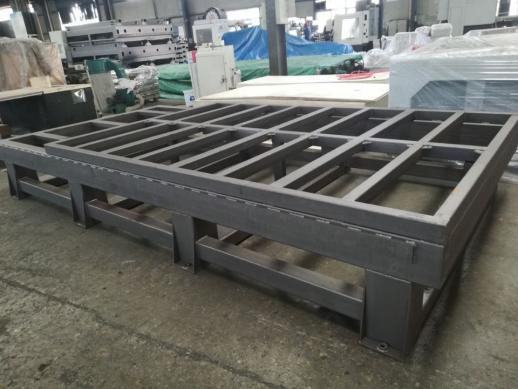

Machine base

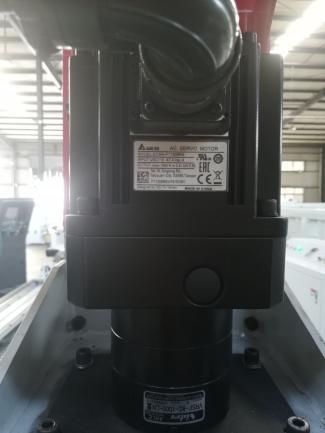

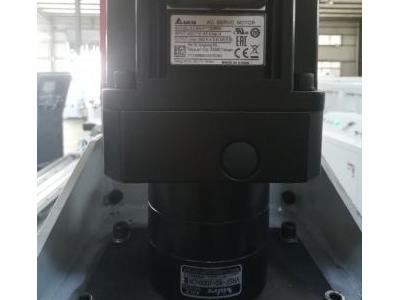

Servo drive system

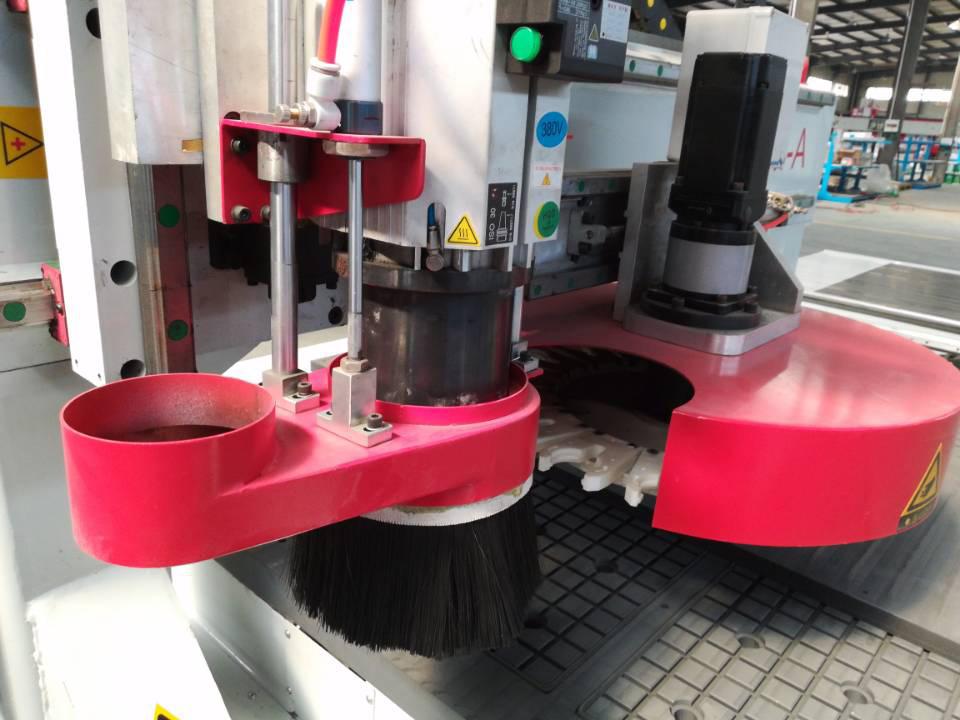

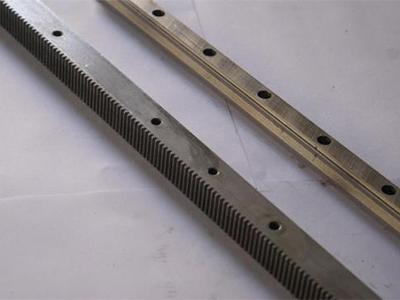

The CNC router is equipped with a linear guide rail. Its X and Y axis use a gear drive and the Z axis uses a precision screw drive.

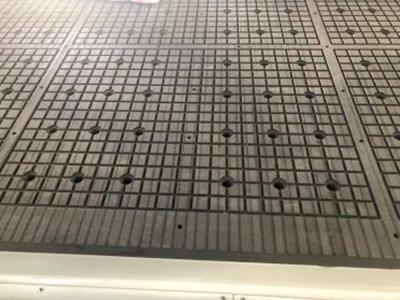

Double-layer vacuum table

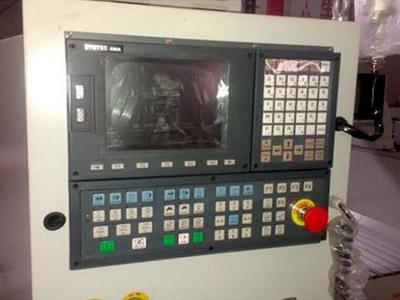

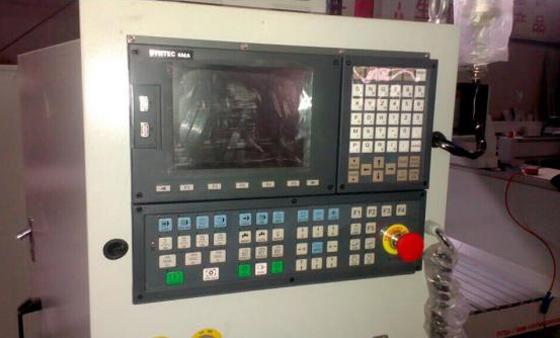

The control system is equipped with a 10-inch screen monitor.
Automatic lubrication system
| Model | F5-MS1325AD |
| Stroke | X,Y,Z: 1300×2500×250mm |
| Moving speed | 50m/minute |
| Accuracy | structural accuracy:0.15mm, repeatability: 0.04mm |
| Working area | 1600x3100mm，2100x3100mm，2100*4200mm (optional) |
| Working voltage | 380V/220V 3P |
| Weights | 2000KGS |
| Package dimensions | 3200x2200x2100mm |
- A 9KW HSD tool change spindle is optional.
- A YASKAWA servo motor is optional.
- The tool changer capacity is 8, 10, or 12 tools.

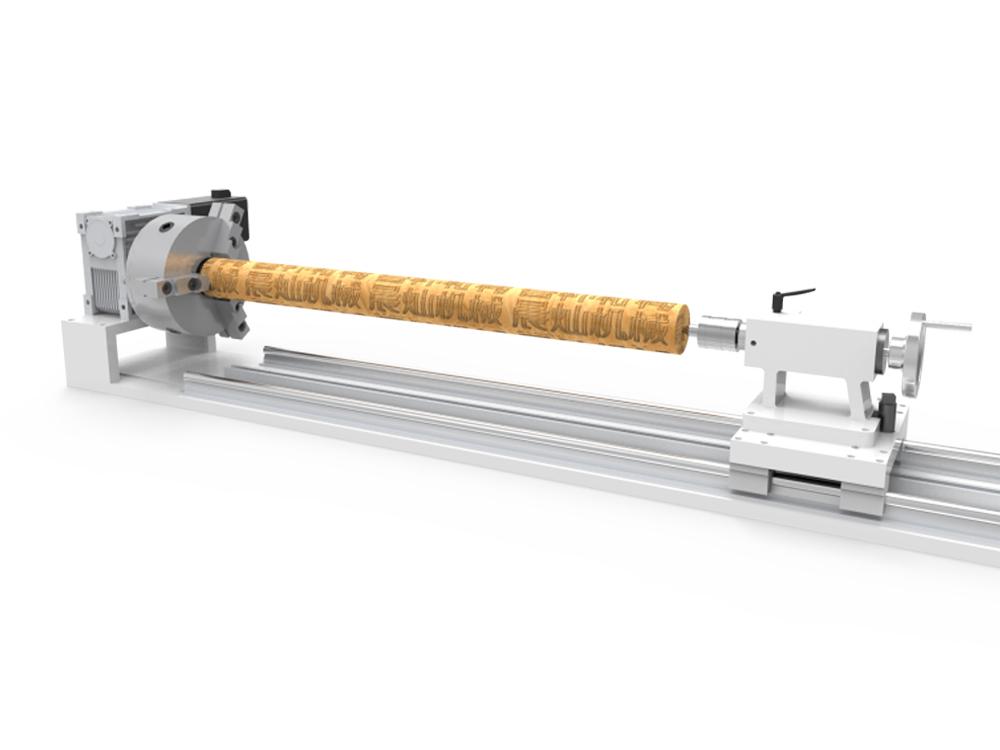

- It can be equipped with a rotary axis (The maximum diameter of cylindrical parts is 200mm and the maximum length is 2000mm).
