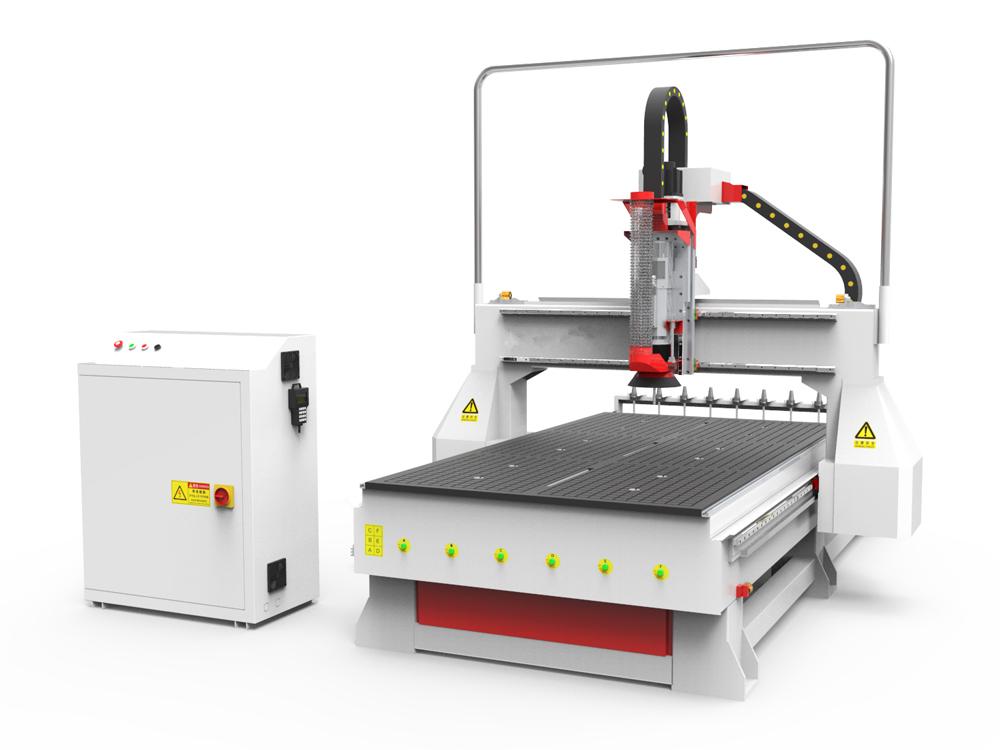

MS1325AC Series CNC Router/CNC Mill

  • 12 Tools CNC Router
  • 12 Tools CNC Router

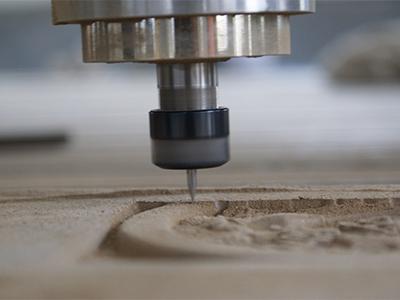

CNC router is designed for high speed processing of flat workpiece. It uses 9KW spindle with automatically tool changer whose speed can be up to 24000r/min. It can finish various processes including carving, cutting, milling, and drilling.

  • Materials Cut
  • Applications
  • Features
  • Parameters
  • Optional Device
  • Gallery

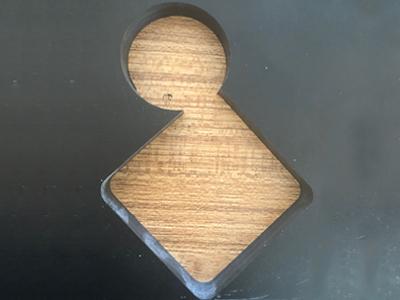

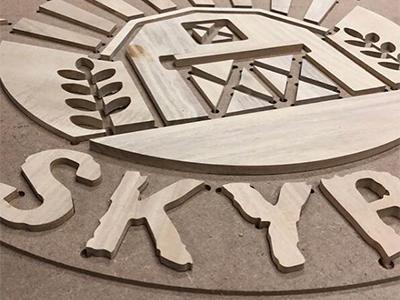

Materials Cut

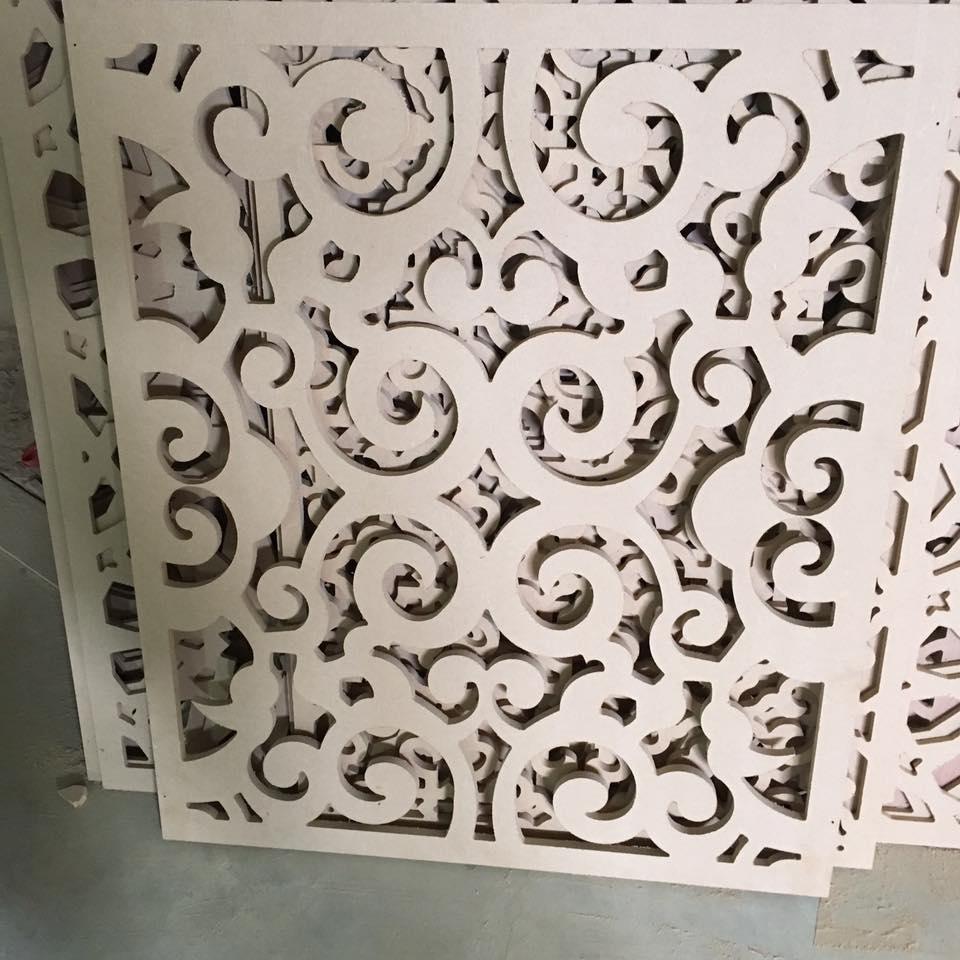

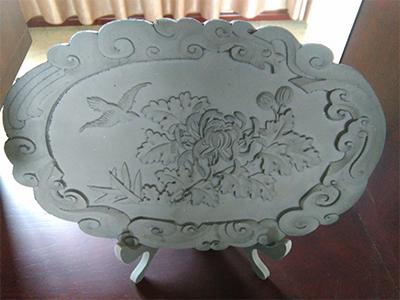

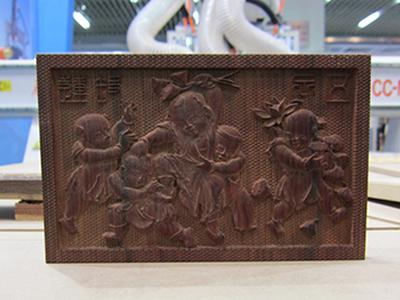

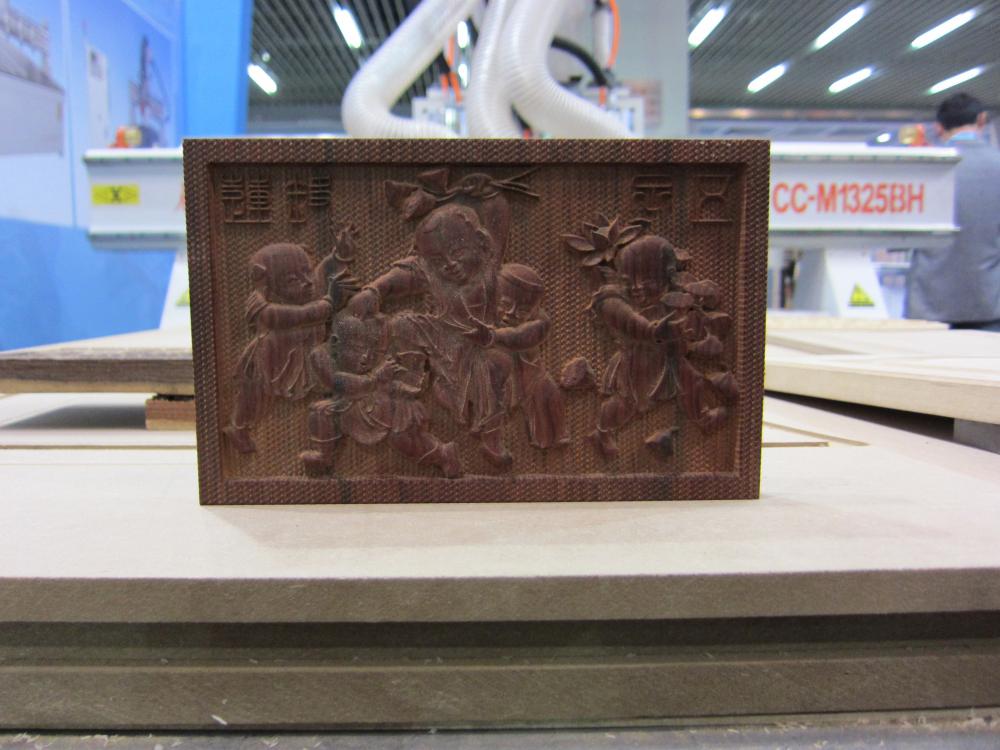

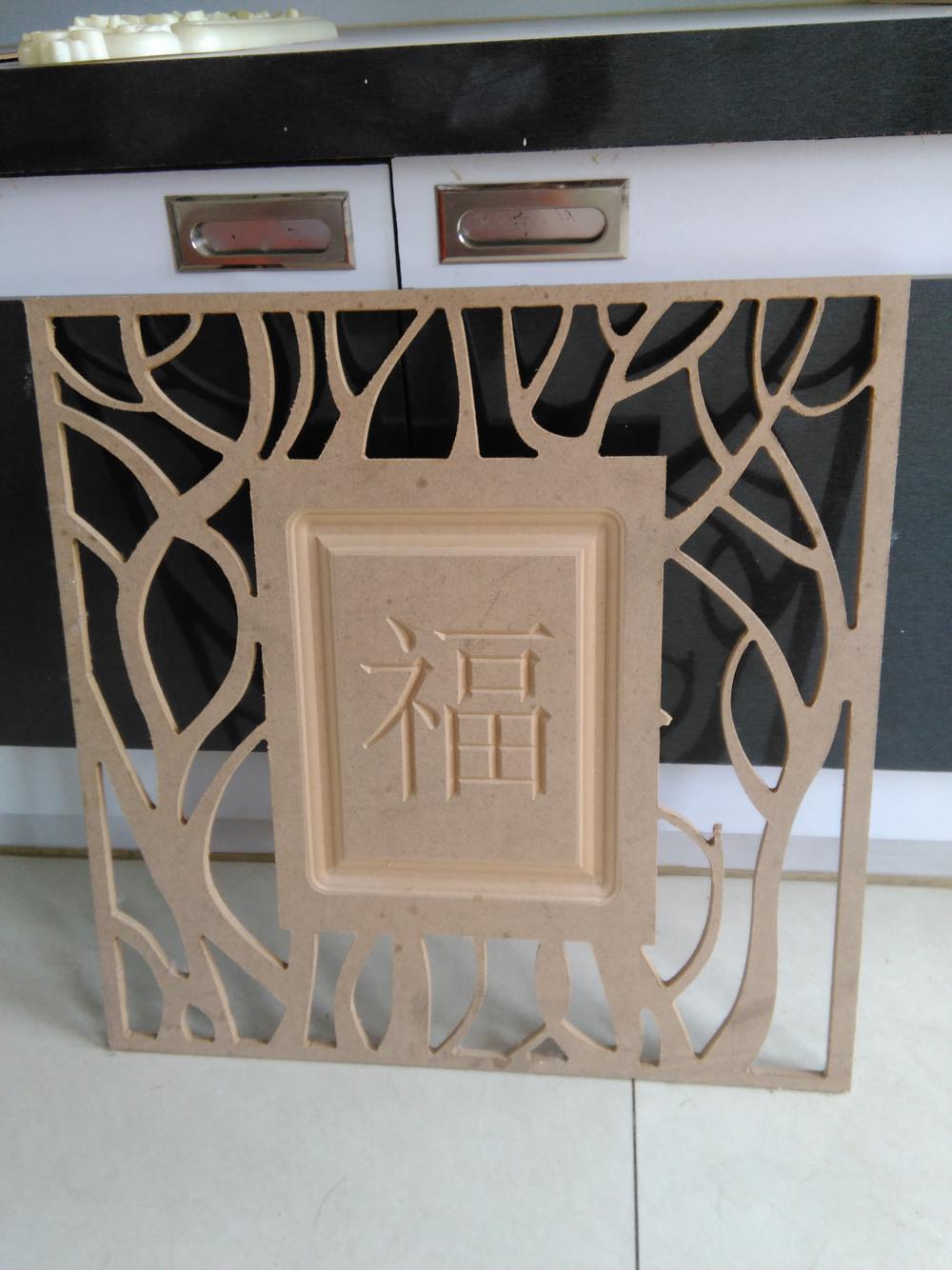

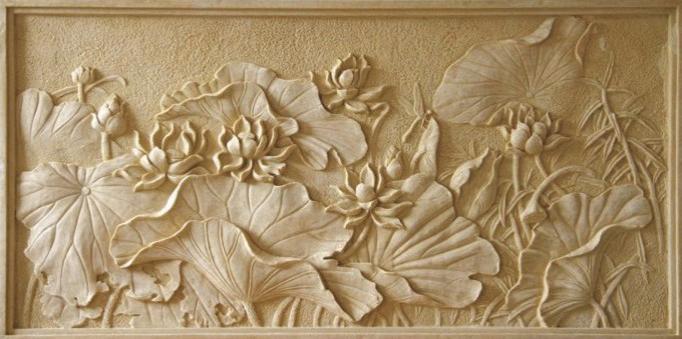

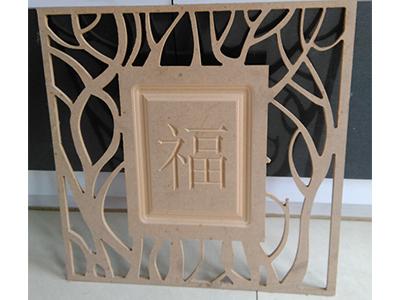

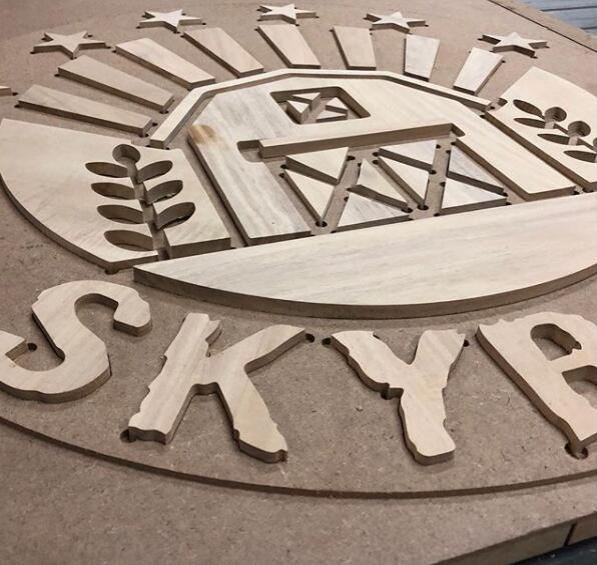

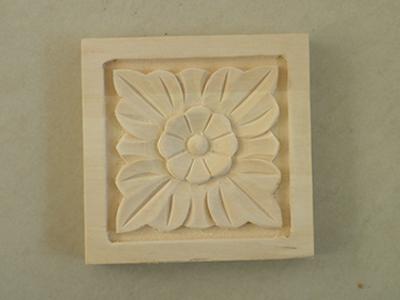

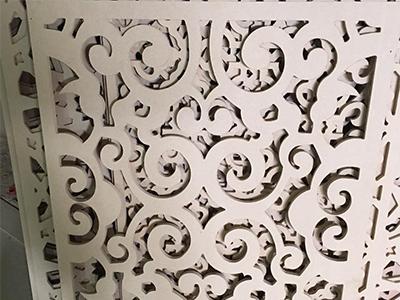

Soft metal and non-metallic materials including wood, PVC, particle board, fiberboard, insulation board, plywood, polystyrene, acrylic glass, polymethyl methacrylate, etc.

  • 12 Tools CNC Router
  • 12 Tools CNC Router
  • 12 Tools CNC Router
  • 12 Tools CNC Router
  • 12 Tools CNC Router
  • 12 Tools CNC Router
  • 12 Tools CNC Router
  • 12 Tools CNC Router
  • 12 Tools CNC Router
  • 12 Tools CNC Router
  • 12 Tools CNC Router
Applications
  • Furniture industry: for manufacturing panel furniture, office furniture, door, soft case, etc.
  • Woodwoking industry: loudspeaker box, cabinet, sewing machine table, musical instrument, etc.
  • Decoration industry: acrylic, plastic, MDF, polymethyl methacrylate, etc.
Features

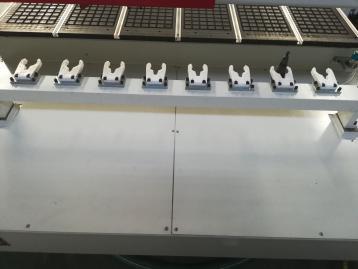

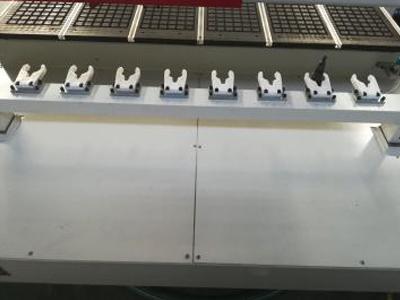

  • 12 Tools CNC RouterThe CNC router is equipped with row-type tool changer which can hold 6 to 12 tools (customizable). The tool changing only needs 4 seconds which can effectively improve the work efficiency.

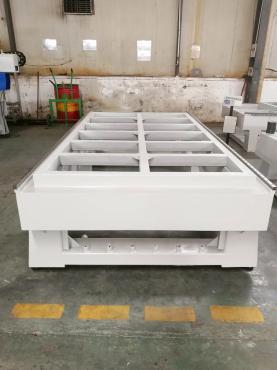

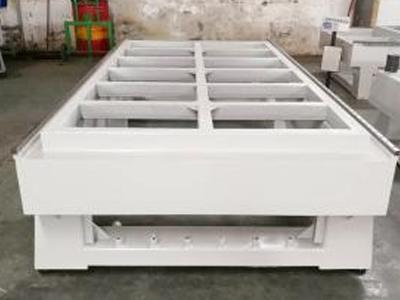

  • 12 Tools CNC RouterHeavy-duty machine body

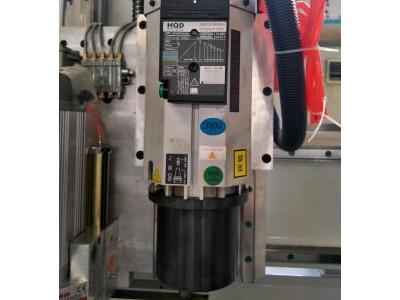

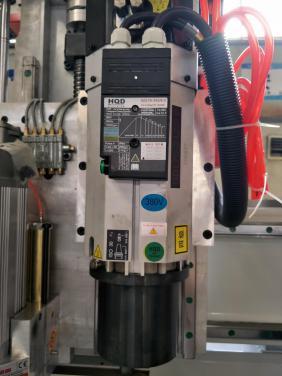

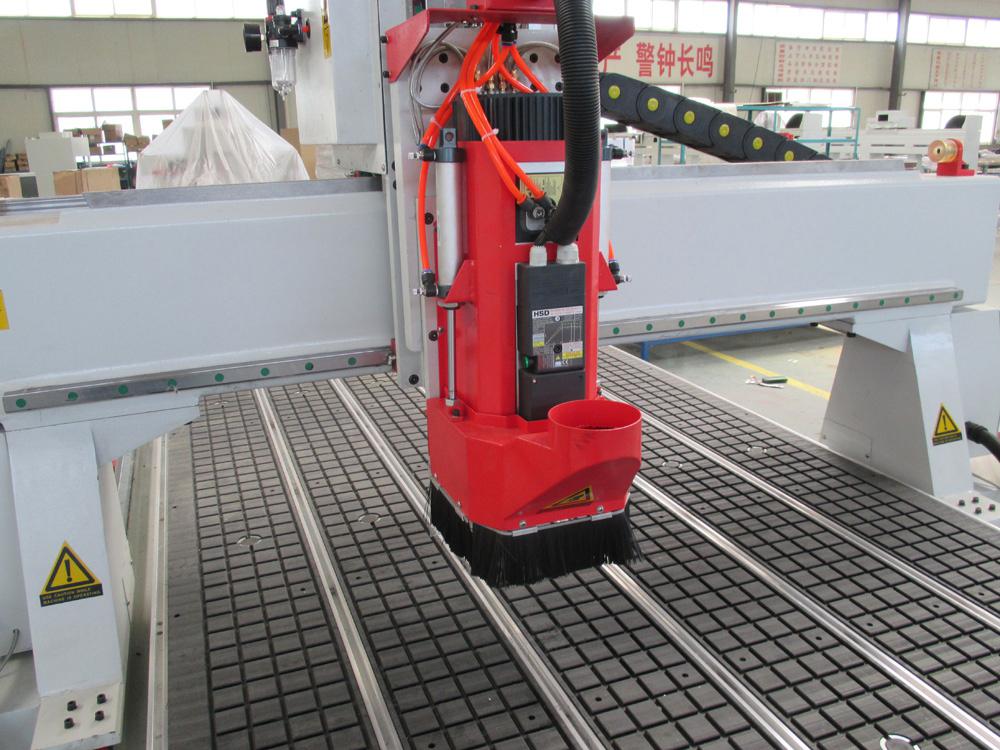

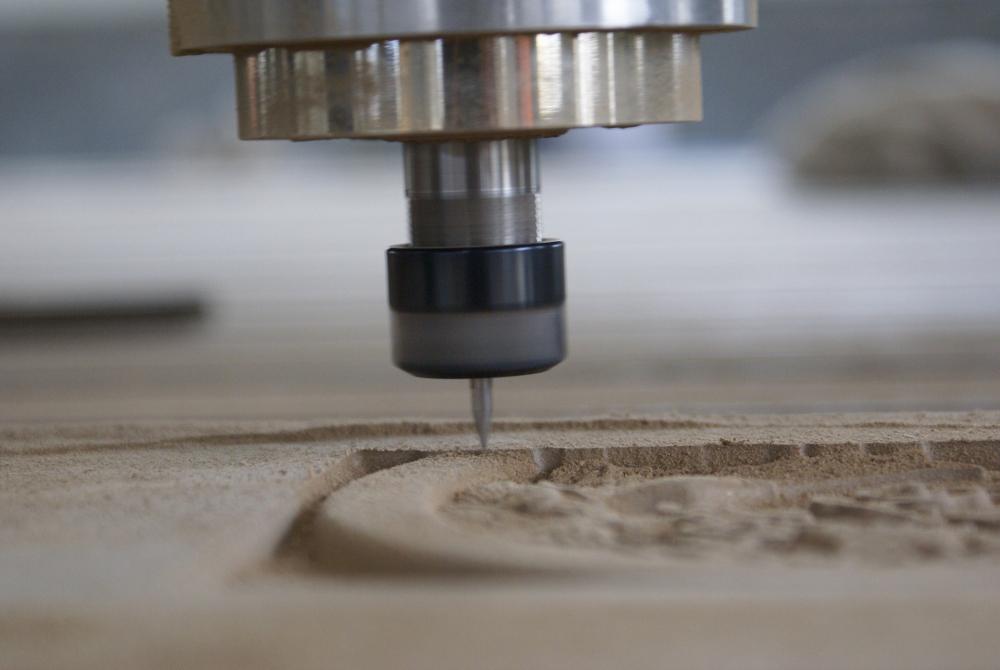

  • 12 Tools CNC RouterAutomatic tool change spindle

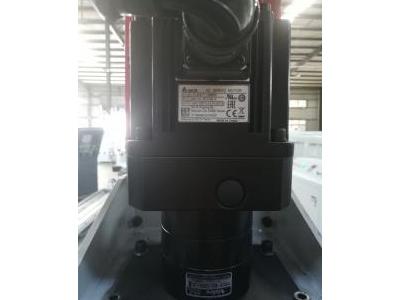

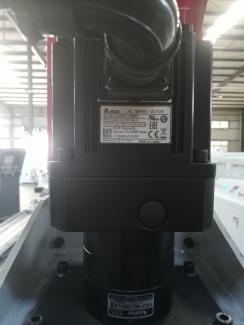

  • 12 Tools CNC RouterServo motor and reducer

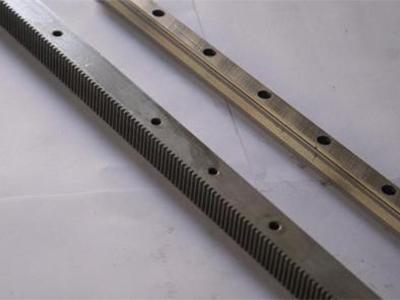

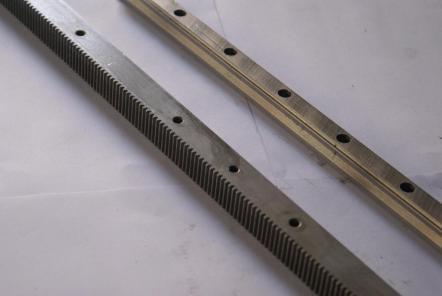

  • 12 Tools CNC RouterThe transmission is equipped with a linear guide rail, precision bevel wheel, and screw rod.

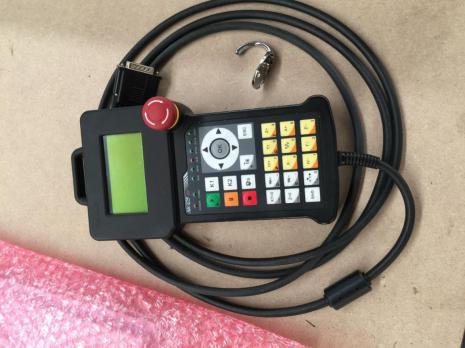

  • 12 Tools CNC RouterNK105G3 operating handle

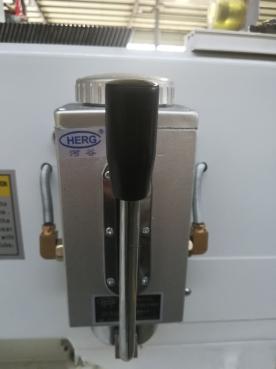

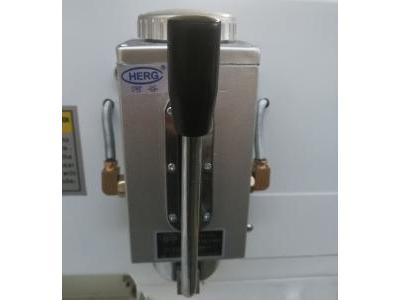

  • 12 Tools CNC RouterShaking lubrication system

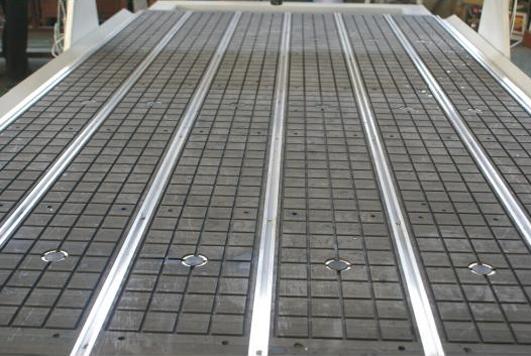

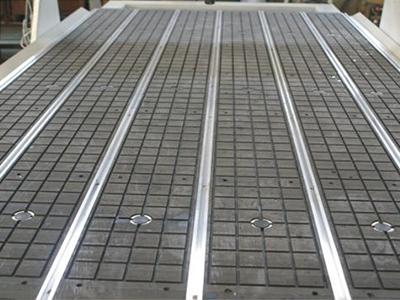

  • 12 Tools CNC RouterTable
Parameters
Model F5-MS1325AC F5-MS1631AC F5-MS2131AC F5-MS2142AC
Stroke 1300×2500×300mm 1600×3100×300mm 2100×3100×300mm 2100*4200*300mm
Shank diameter Φ3.175-Φ18
Weights 1800KG
Package dimensions 3700x2100x2100mm
Working voltage AC380V-/220V
Optional Device
  • 9KW HSD tool change spindle, YASKAWA servo motor, and Syntec control system are all optional.

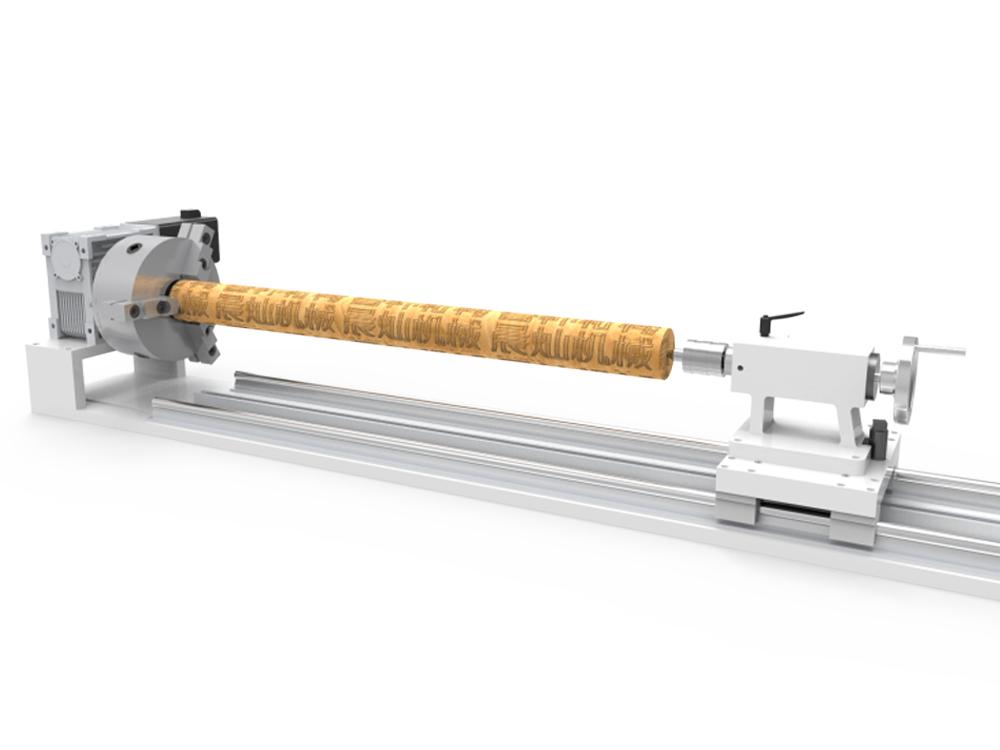

  • Users can request an added rotary axis.
  • Software such as Type3/Artcam/Mastercam/UG is optional.

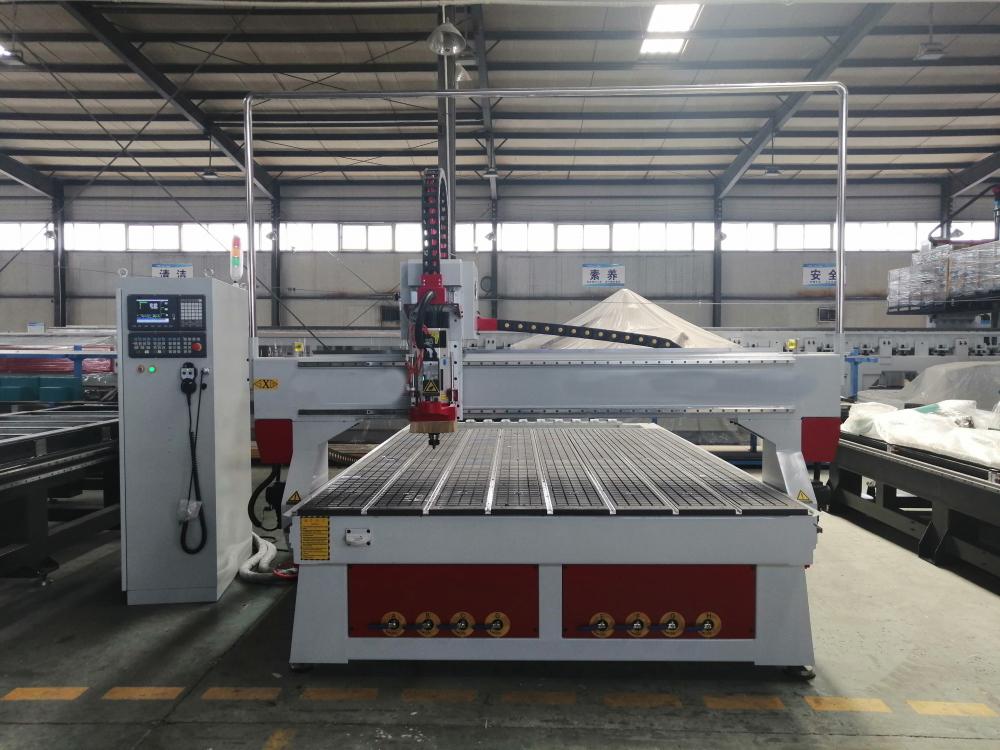

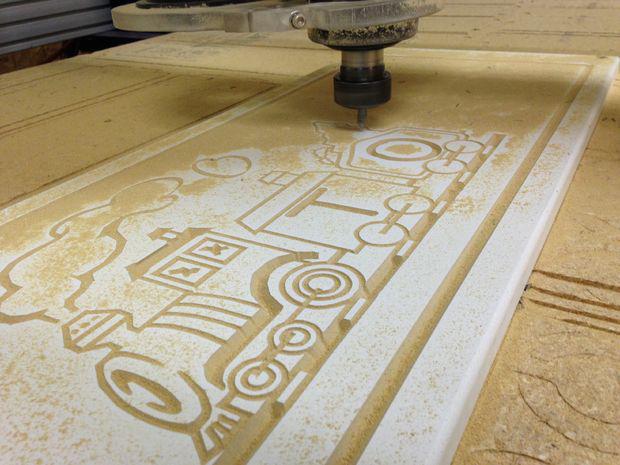

Gallery
  • 12 Tools CNC Router
  • 12 Tools CNC Router
  • 12 Tools CNC Router
Factory Tour
  • 12 Tools CNC Router5-Face Milling
  • 12 Tools CNC RouterCNC Machining
  • 12 Tools CNC RouterGantry Planing
  • 12 Tools CNC RouterWelding
  • 12 Tools CNC RouterWelding

Founded more than two decades ago, Shandong PEF Machine Tool Co. is a lauded manufacturer of high-performance CNC processing machinery. Our equipment is carefully developed to provide users with incredible precision, and we are proud of their capabilities. We offer a series of 3/4/5-axis CNC routers that deliver a broad range of functions for many industries. These machines have been applied for numerous different applications, such as panel processing, parts prototyping, custom cabinets, architectural modeling, millwork, and much more. We provide a full range of standard equipment, but if your requirements are still not met, we can customize the machines to ensure you are fully satisfied. Contact us today to learn more!
