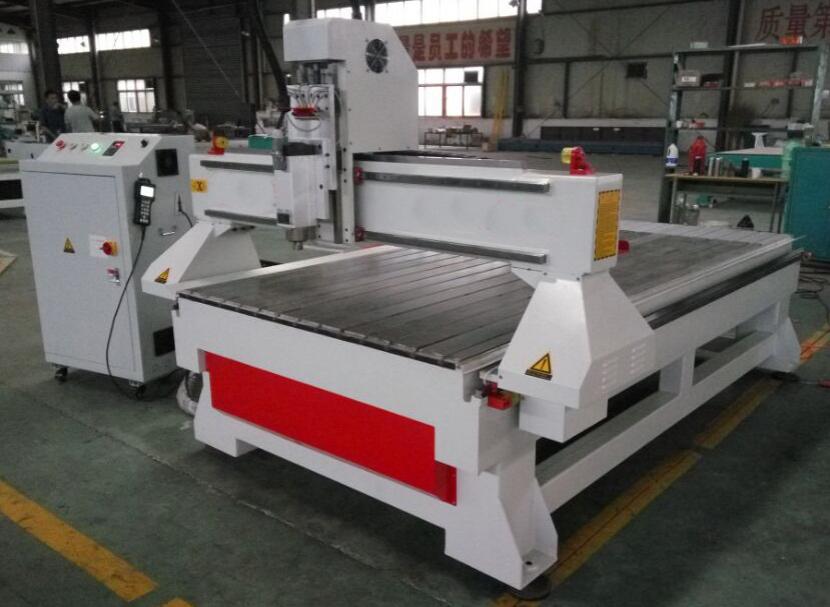

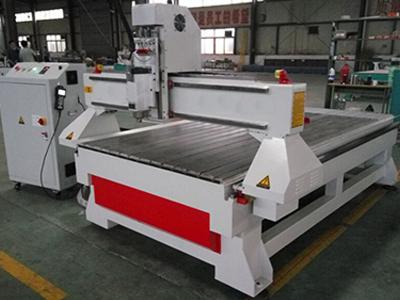

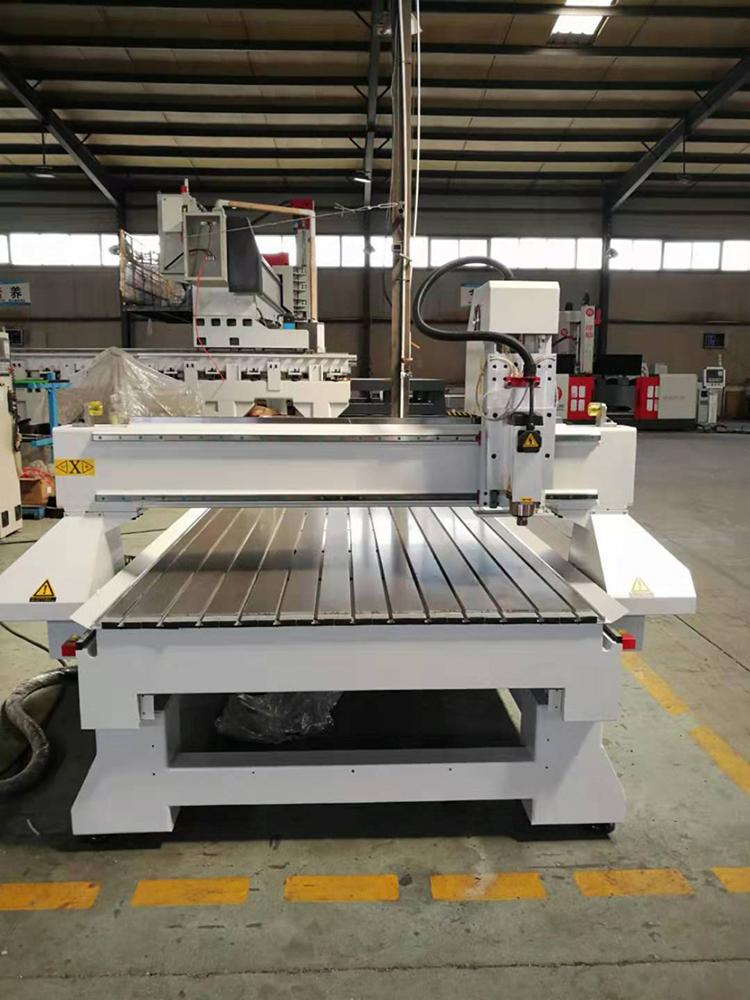

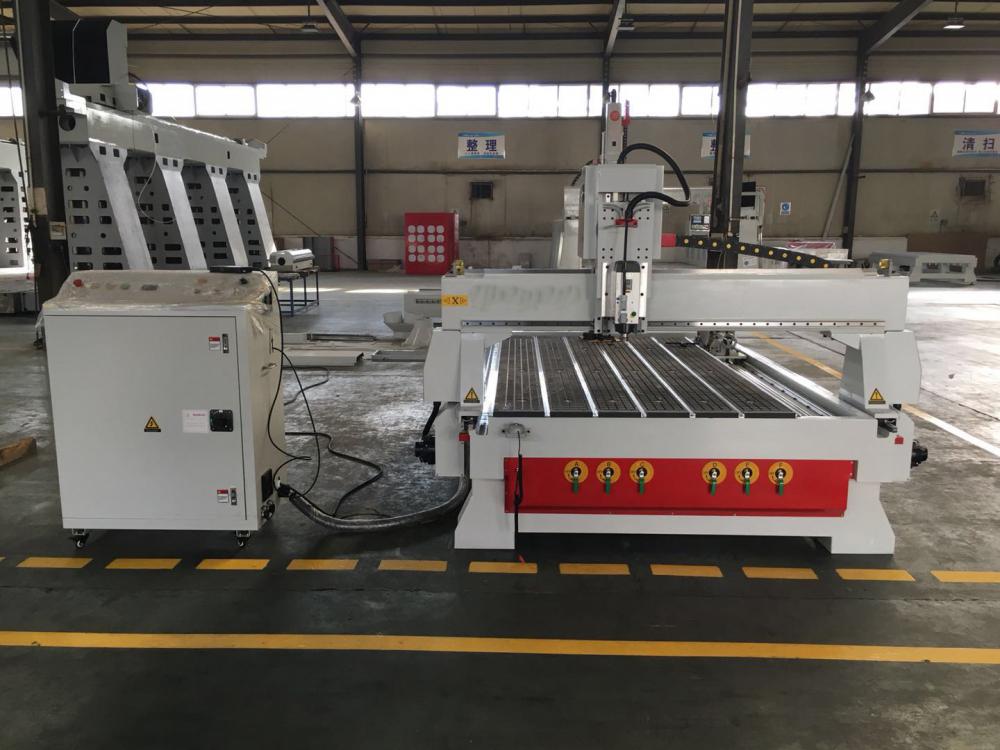

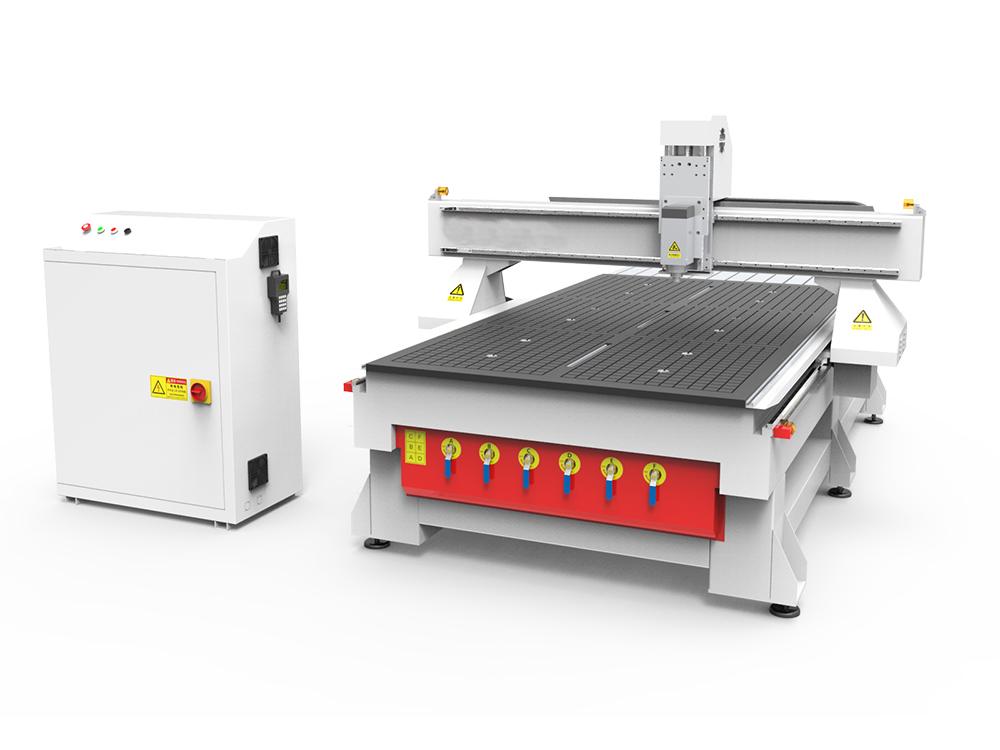

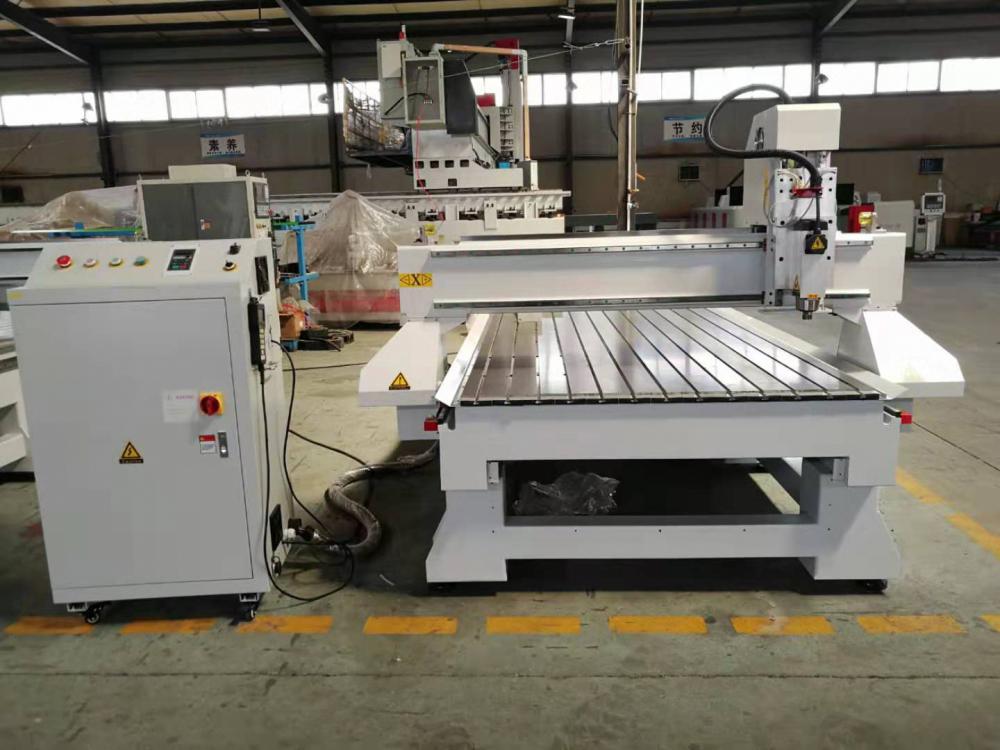

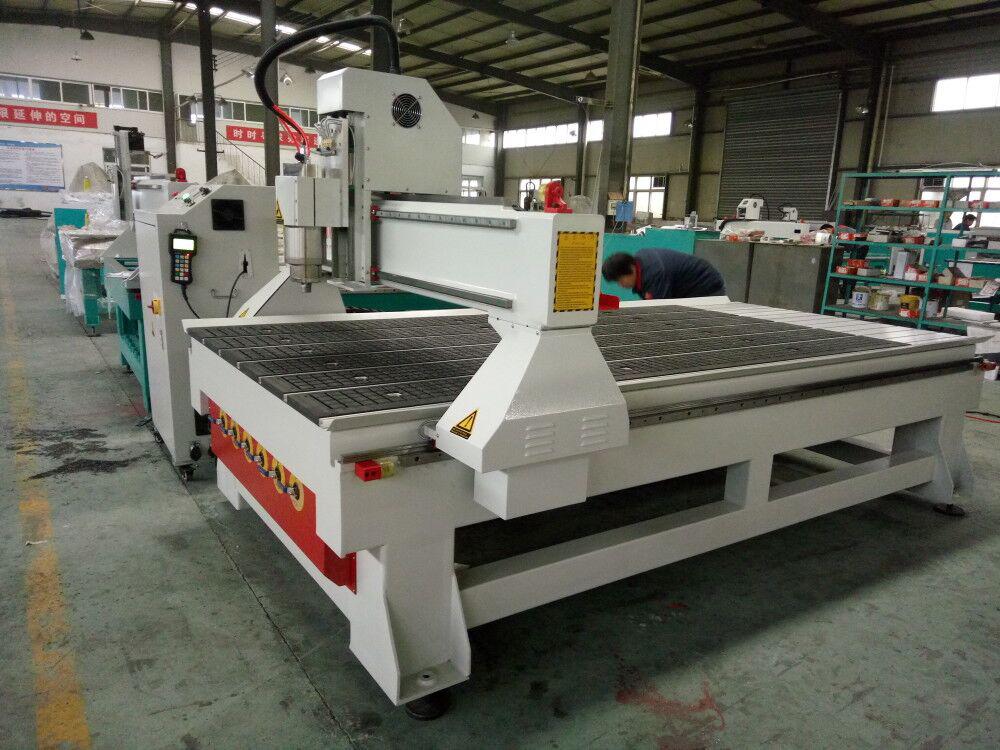

M1325A Series CNC Router/CNC Mill

Gantry Type CNC Router

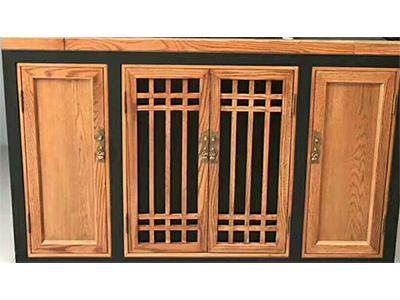

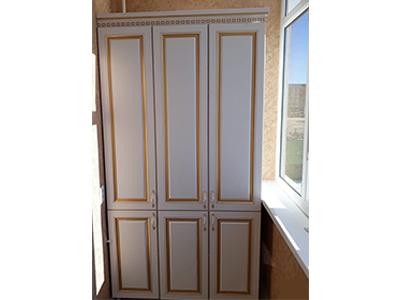

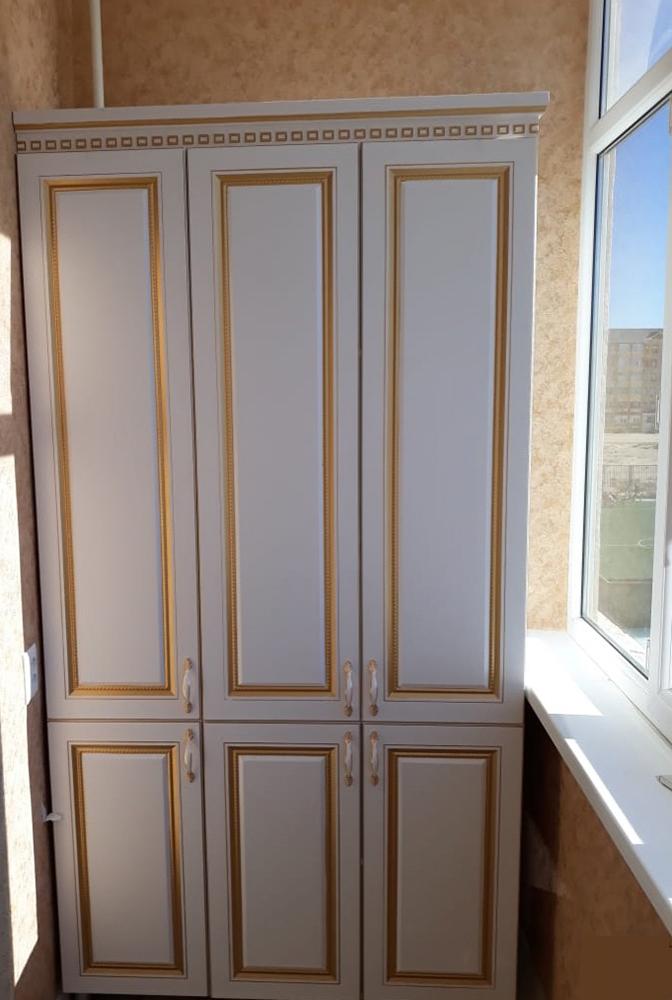

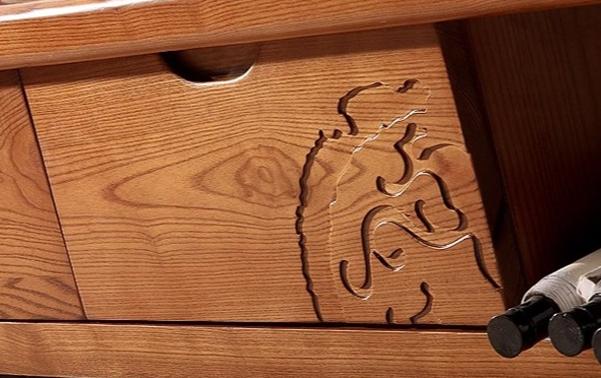

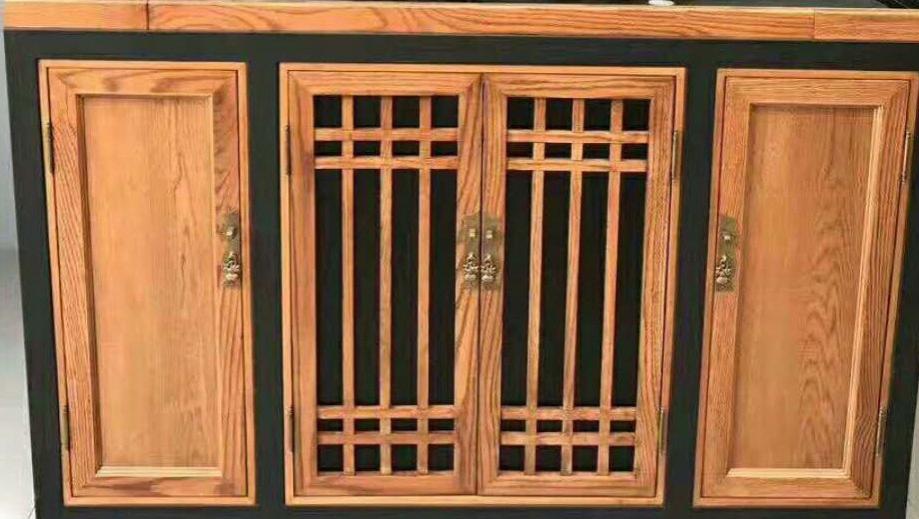

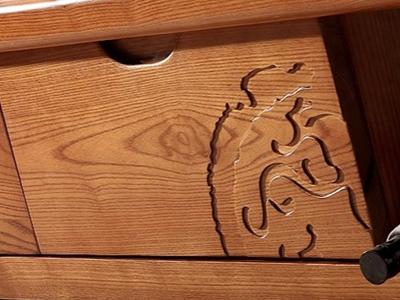

The CNC router is designed for cabinet manufacturing and is designed to complete different processes, including carving, cutting, milling, and drilling. It is used to produce cabinets, doors, shelves, and tabletops, as well as complex furniture such as desks and chairs. This CNC router is precise and efficient, with a smooth processed surface that requires no manual sanding.

  • Materials Cut
  • Features
  • Parameters
  • Options
  • Gallery
Materials Cut

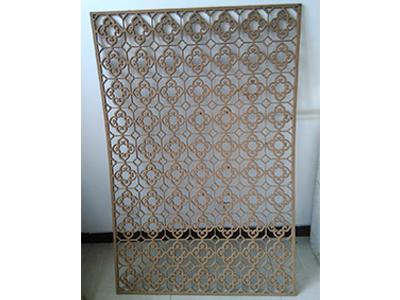

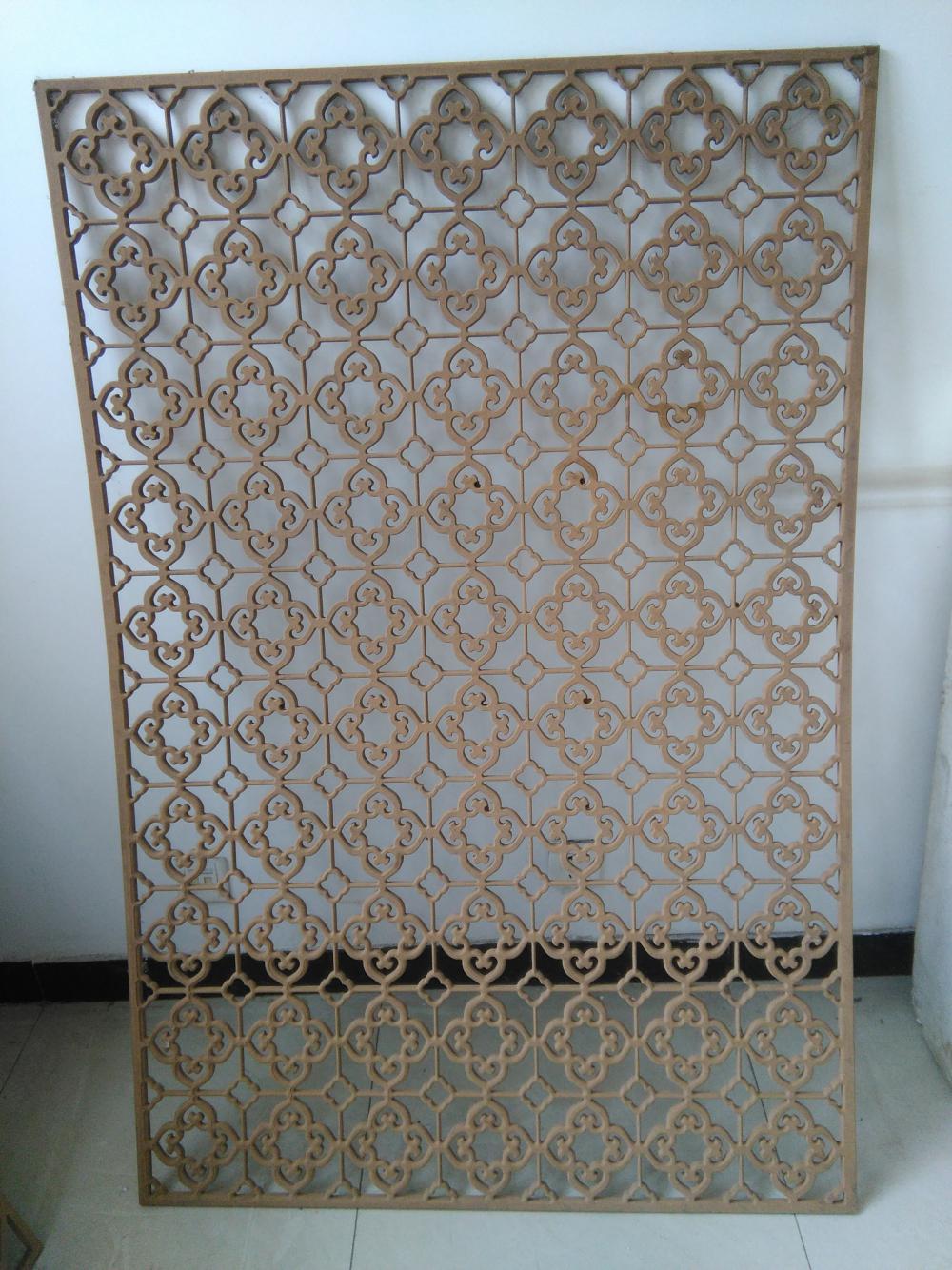

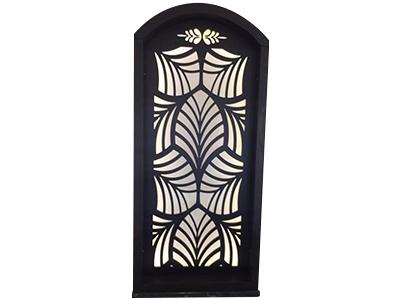

Wood, board, fiberboard, plastic, PVC, acrylic, resin

  • Gantry Type CNC Router
  • Gantry Type CNC Router
  • Gantry Type CNC Router
  • Gantry Type CNC Router
  • Gantry Type CNC Router
  • Gantry Type CNC Router
  • Gantry Type CNC Router
Features

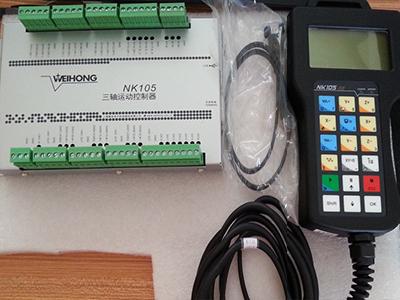

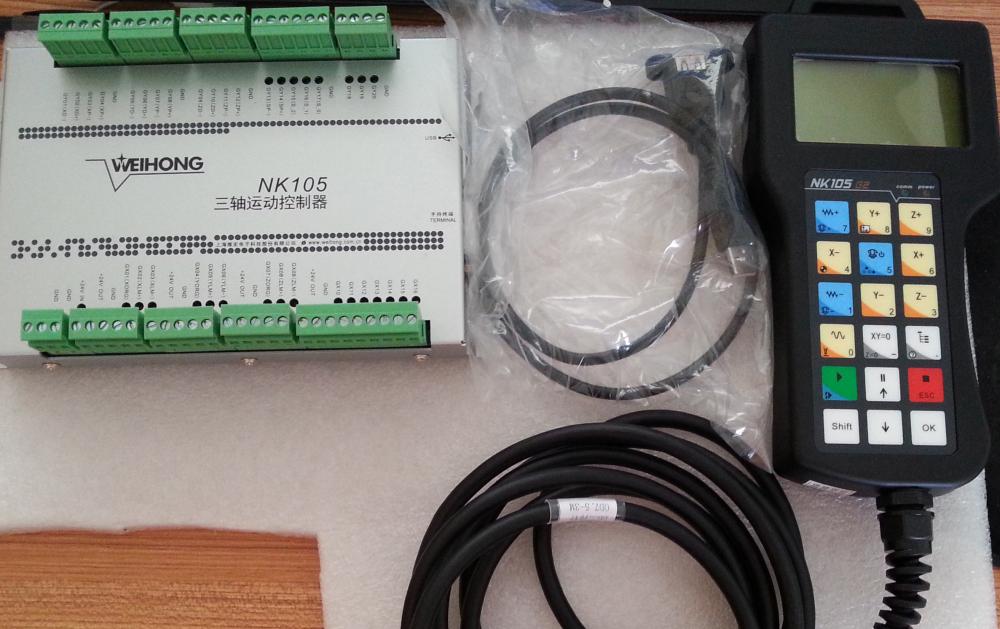

  • Gantry Type CNC RouterThe Weihong NK105G2 control system features an operating handle, USB ports and easy operation.

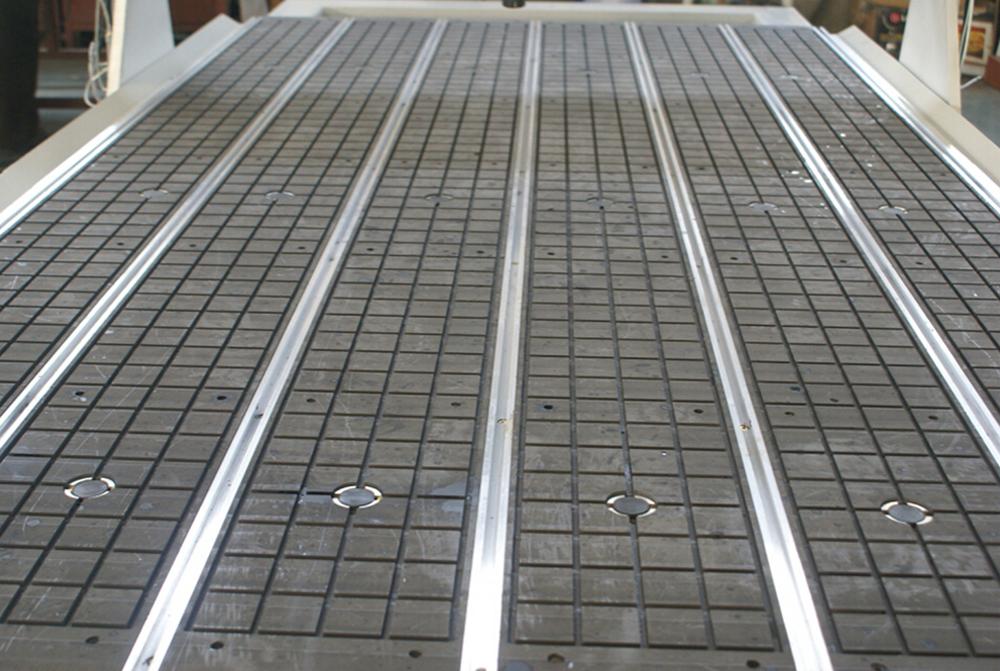

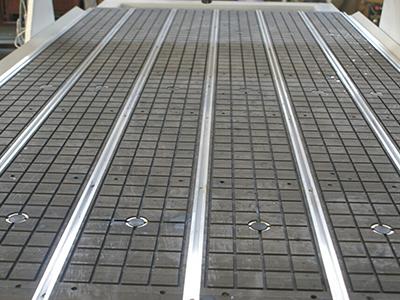

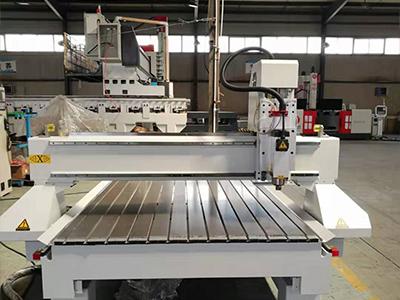

  • Gantry Type CNC RouterThe CNC router is equipped with a vacuum table for a quick, time saving load.

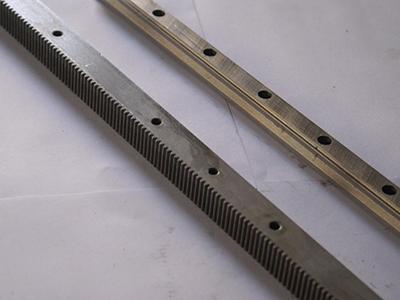

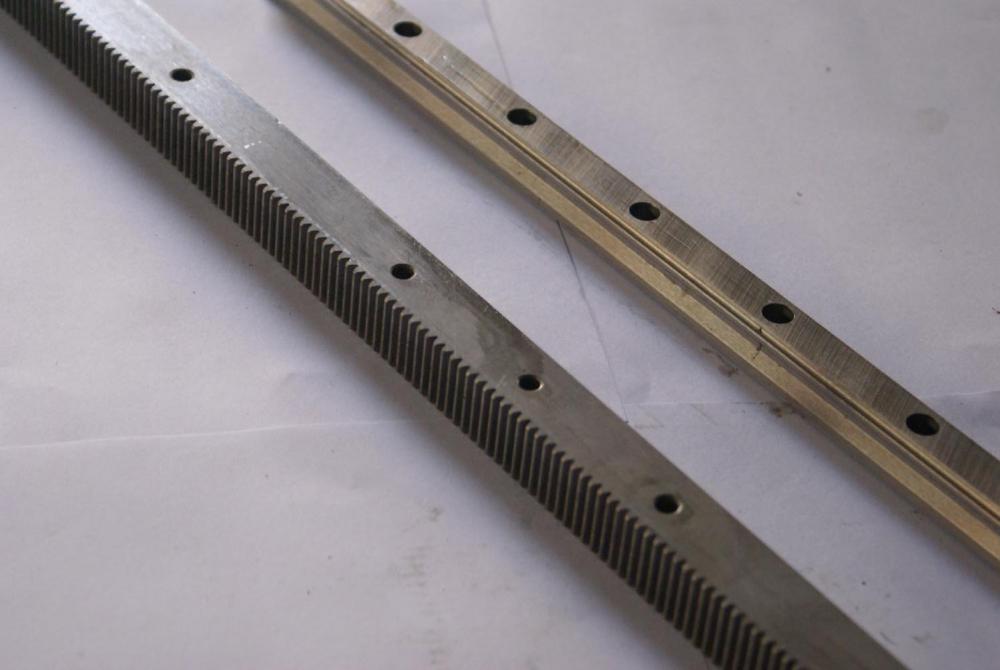

  • Gantry Type CNC RouterIts X-axis and Y-axis uses an HIWIN guide rail and rack. It is driven by two motors for a high speed and high efficiency.
  • Gantry Type CNC RouterThe Z axis uses a TBI square guide rail with double rows and four column ball bearing slider. It features a smooth operation and a large load capacity.

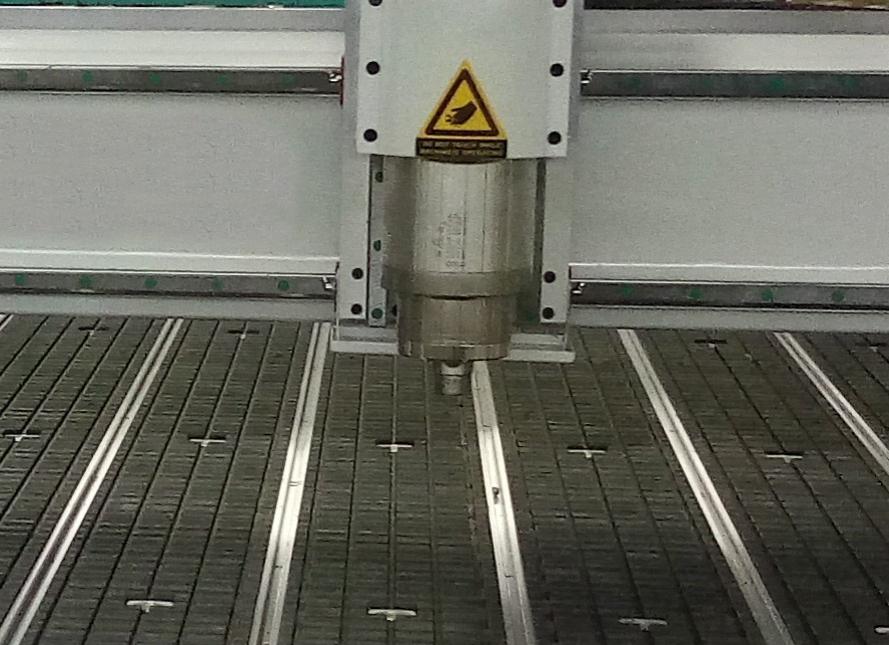

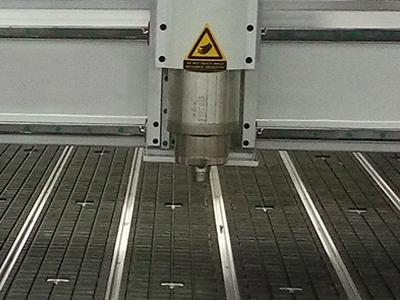

  • Gantry Type CNC RouterIt is equipped with 3.5KW air cooled spindles.
Parameters
Model F5-M1325A F5-M1631A F5-M2131A F5-M2142A
Stroke 1300*2500*200mm 1600*3100*200mm 2100*3100*200mm 2100*4200*200mm
Support software Type3/Artcam/Mastercam/UG
Working voltage AC380V-/220V
Package dimensions 3100*2100*2100mm 3800*2100*2100mm 3800*2200*2100mm 4900*2200*2100mm
Weights 1400kg 1700kg 2000kg 2200kg
Options
  • The air-cooled spindles can be replaced with water cooled spindles.
  • A T slot table with vacuum pump and vacuum cleaner is optional.
Gallery
  • Gantry Type CNC Router
  • Gantry Type CNC Router
  • Gantry Type CNC Router
  • Gantry Type CNC Router
  • Gantry Type CNC Router
