Three Axis CNC Routers-Nesting

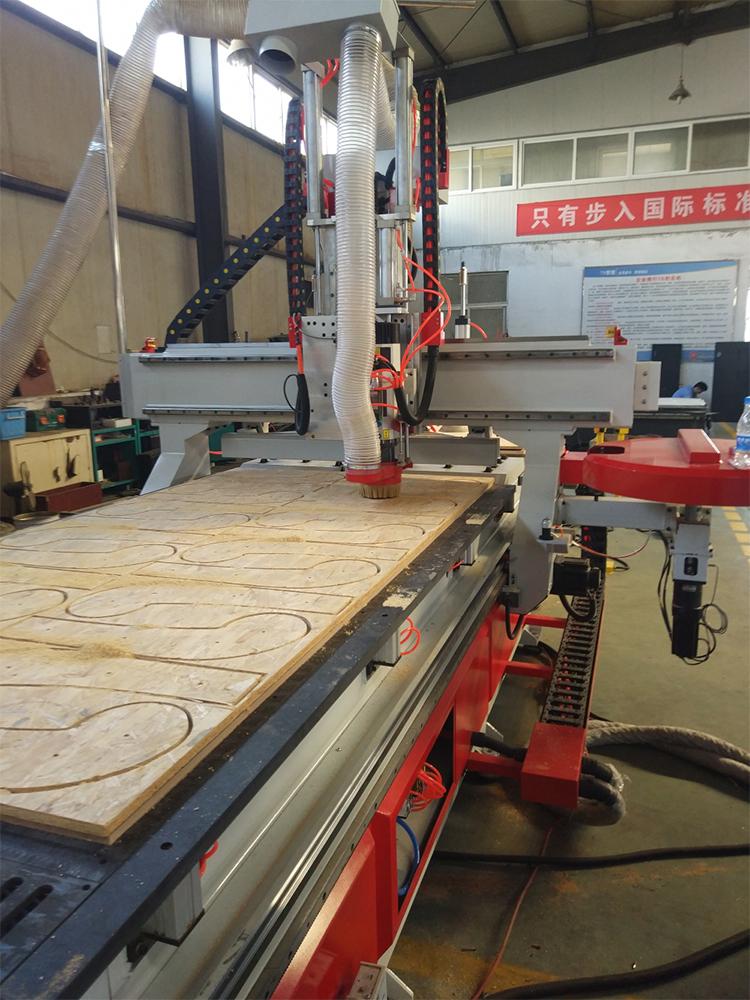

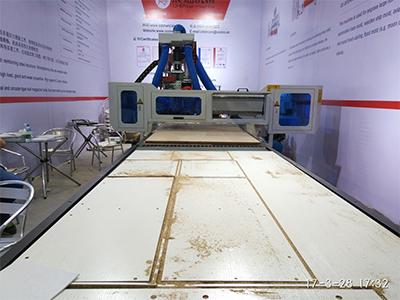

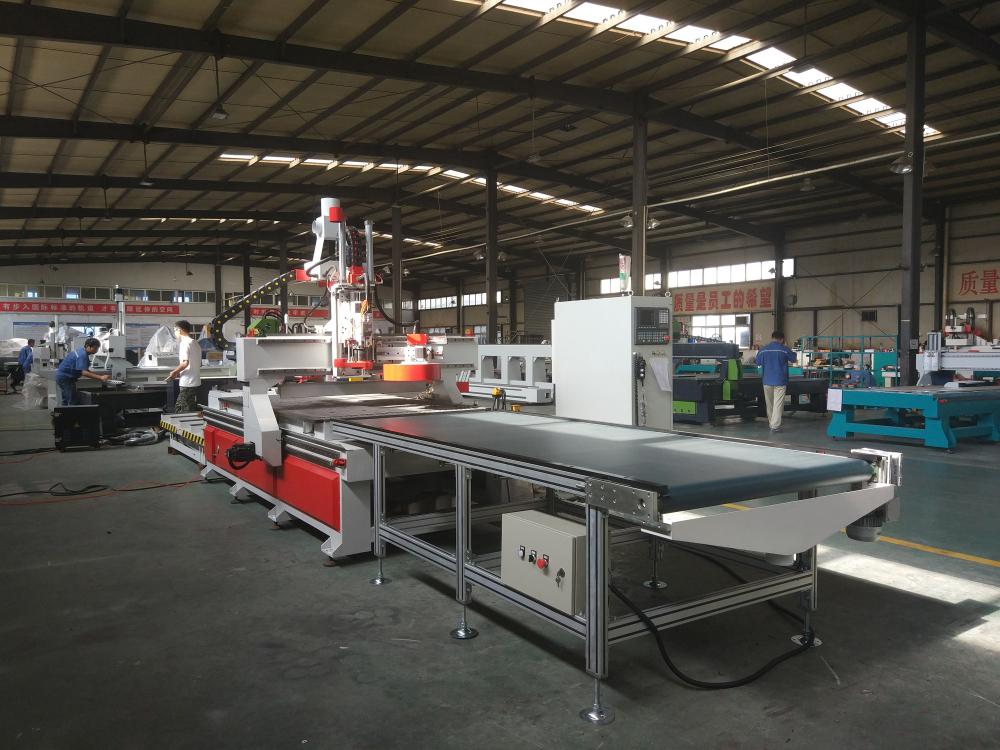

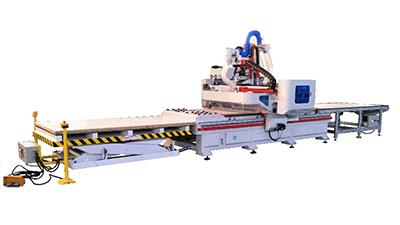

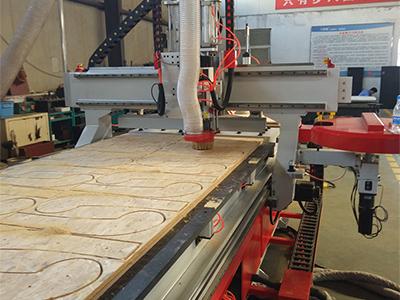

This nesting CNC router comes equipped with an automatic loading and unloading system that enhances its productivity. The 3 axis CNC machine was developed for manufacturing nested based custom cabinets, furniture, and related products.
Board, fiberboard, particle board, plywood, plastic plate, insulation board, composite board, etc.

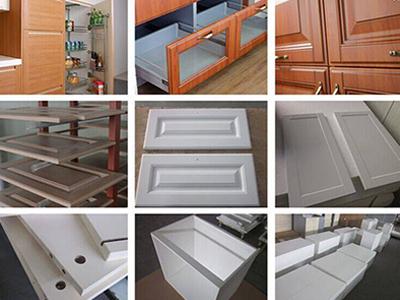

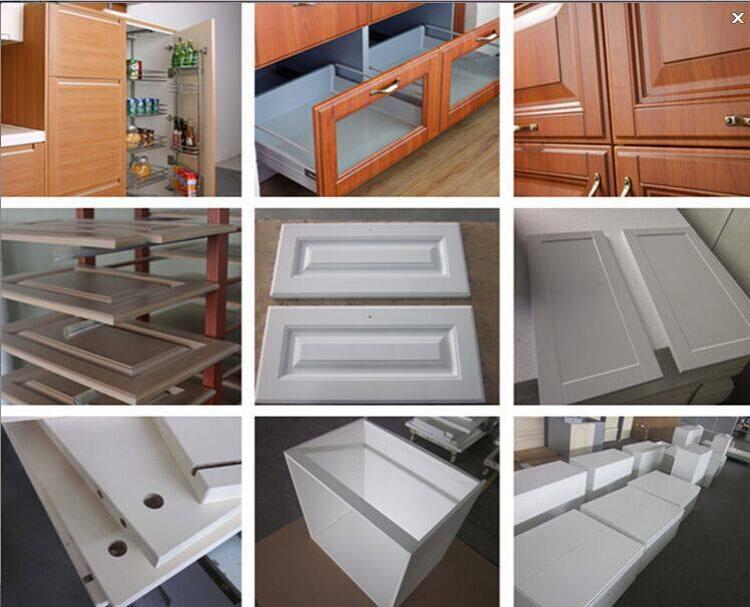

- Woodworking industry: door, furniture, loudspeaker boxes, etc.
- Composite materials industry: plastic parts, FRP parts, rubber products, composite material parts, etc.

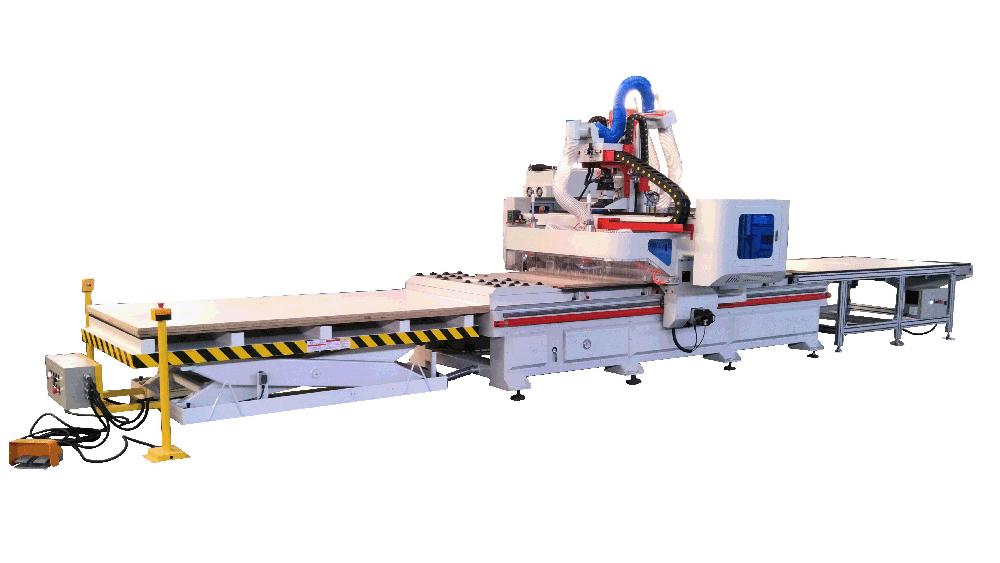

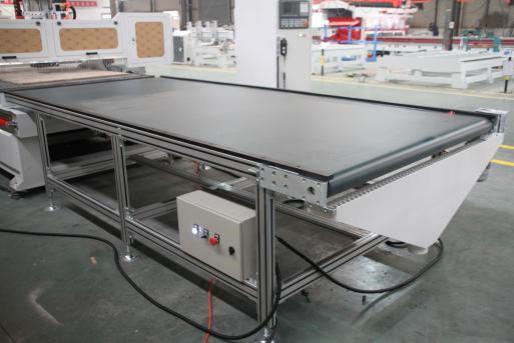

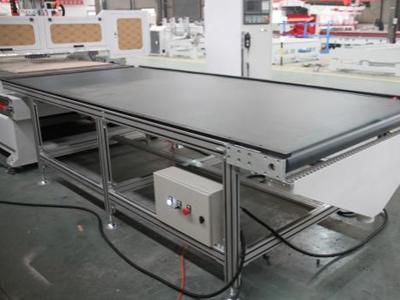

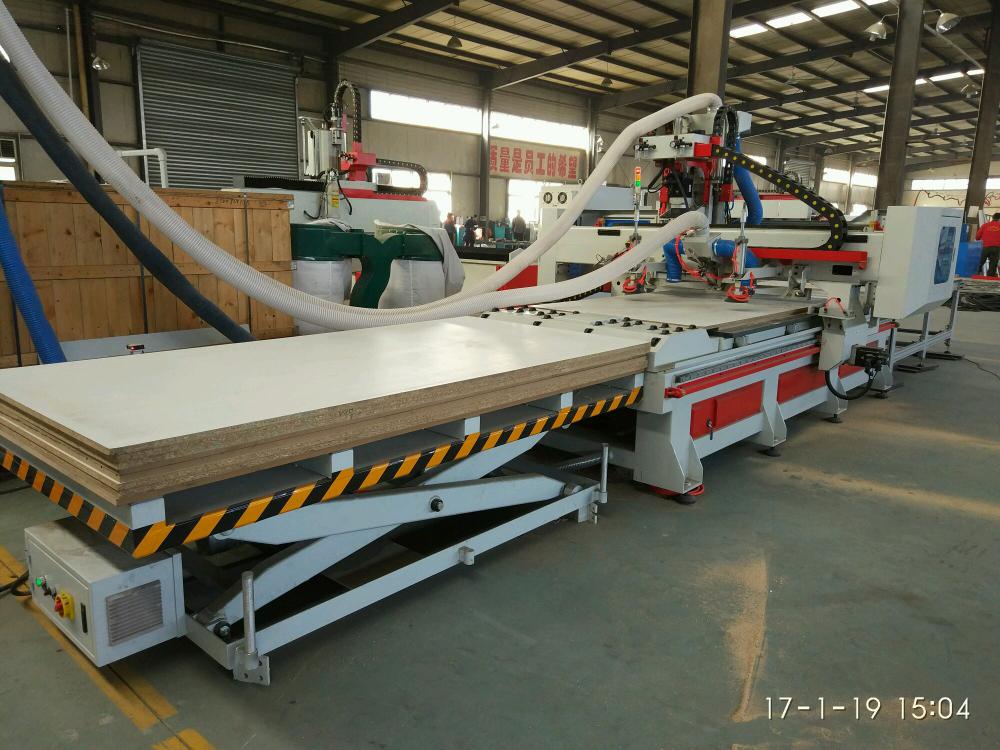

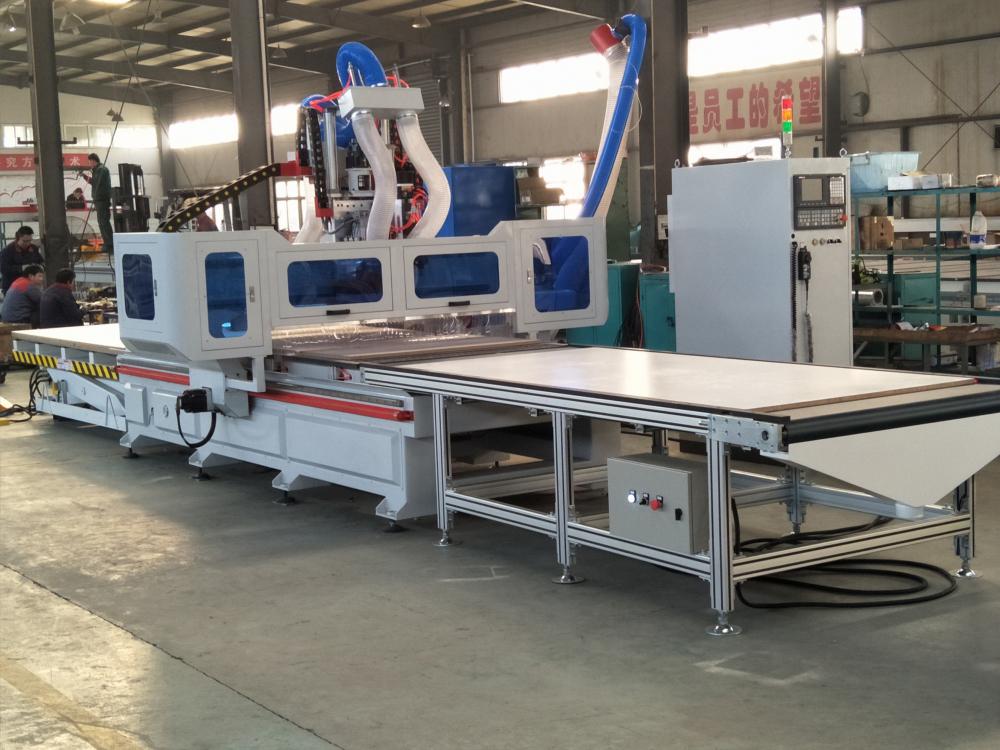

The nesting CNC router supports automatic loading and unloading as well as automatic positioning, ensuring high productivity and minimizing the risk for human error.

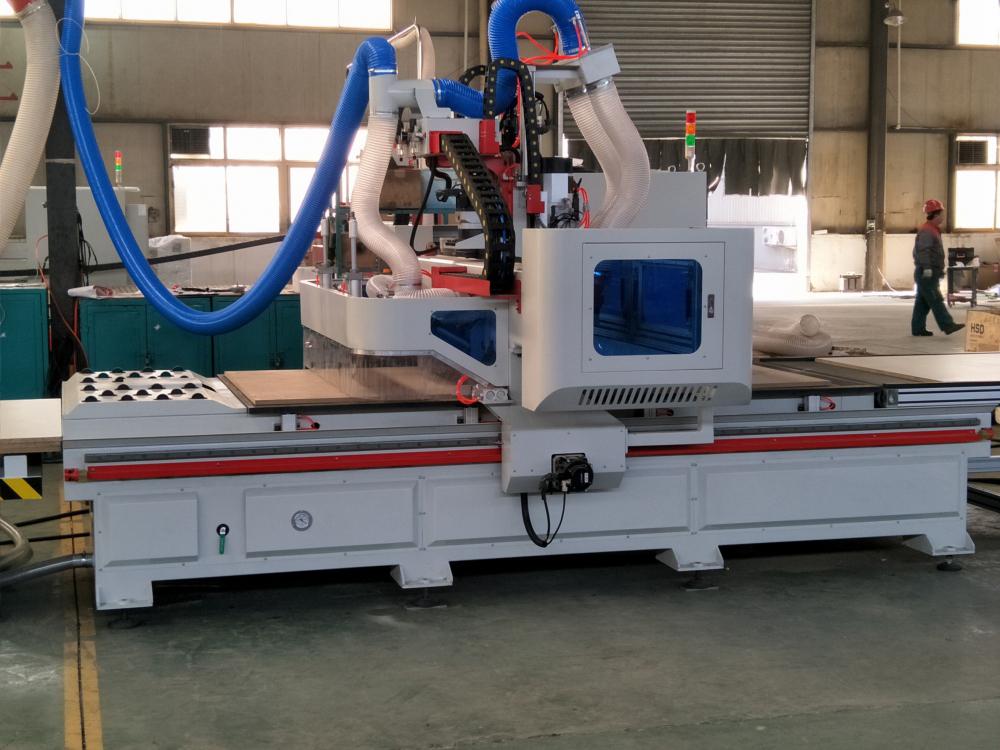

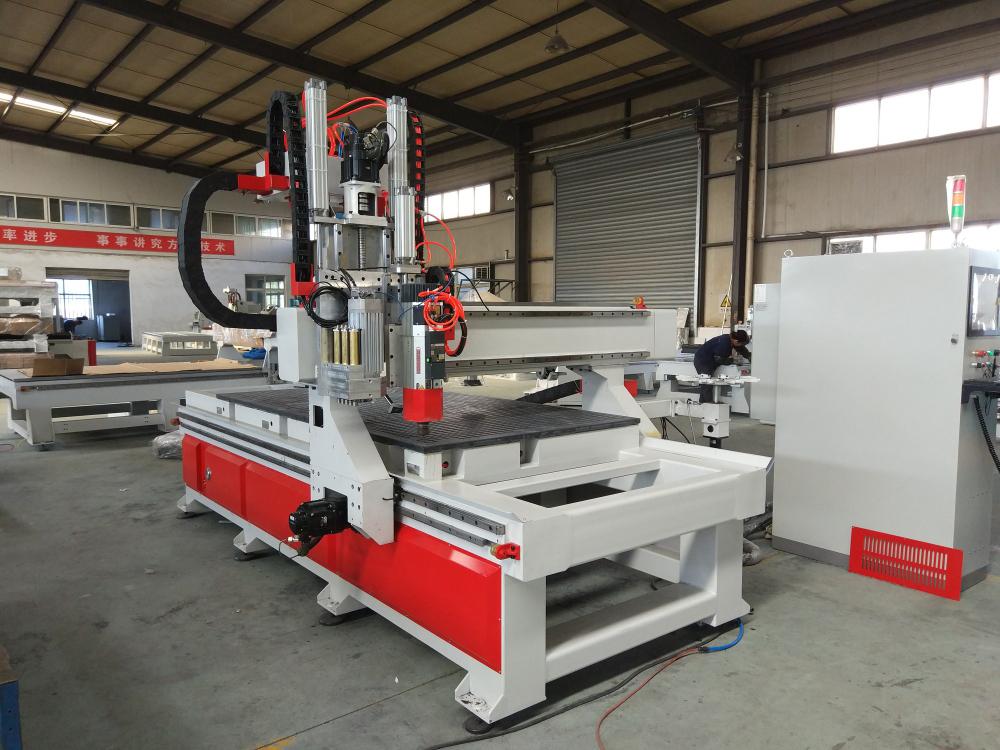

The heavy-duty machine body ensures stability during processing.

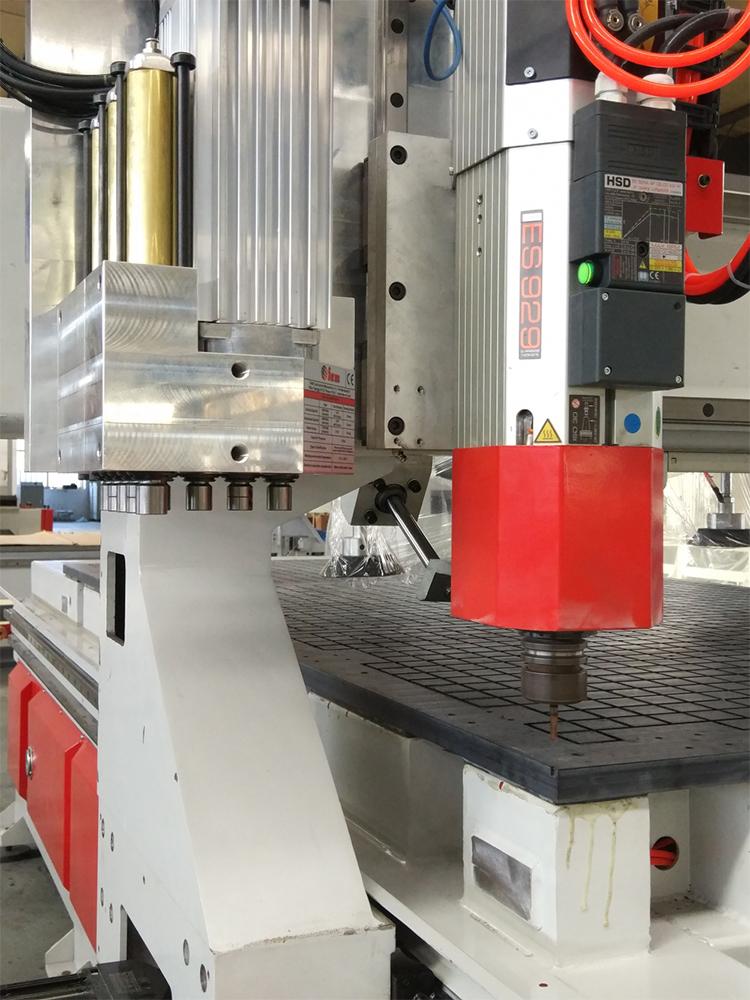

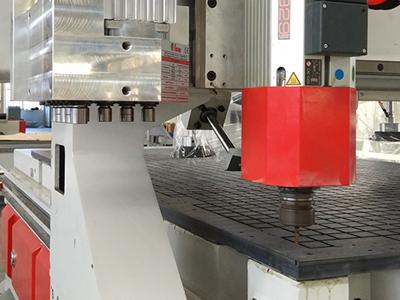

The speed of the 9KW spindle can reach up to 24000 RPM. The 8-position tool changer ensures quick tool changing, minimizing downtime.

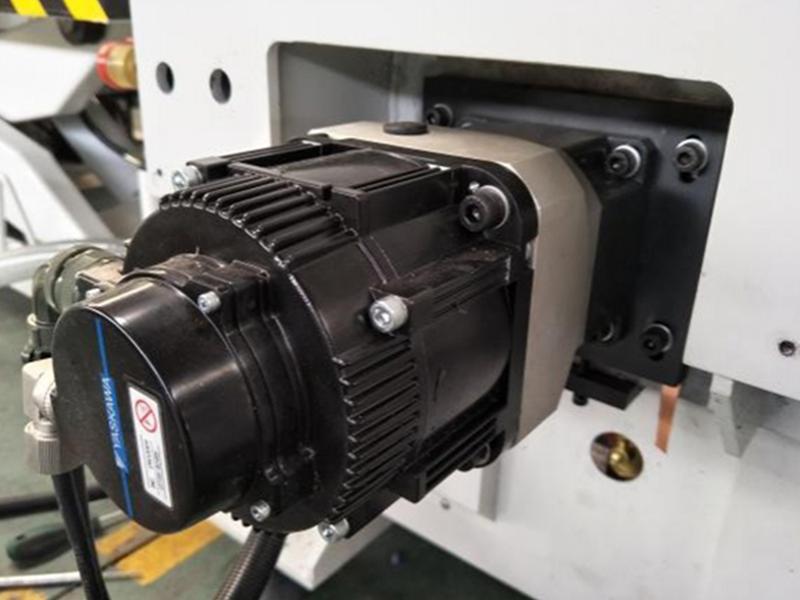

It is equipped with a servo motor made in Taiwan and reducer made by Shimpo to ensure optimal processing speed and processing accuracy.

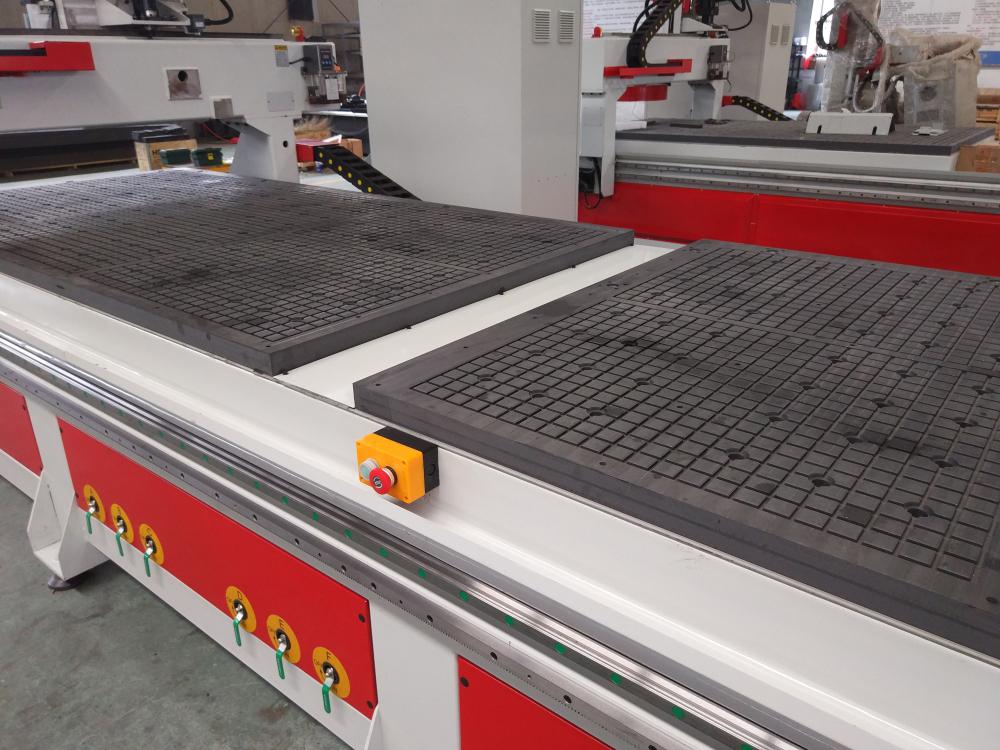

The double-layer vacuum table can effectively suck materials of various sizes.

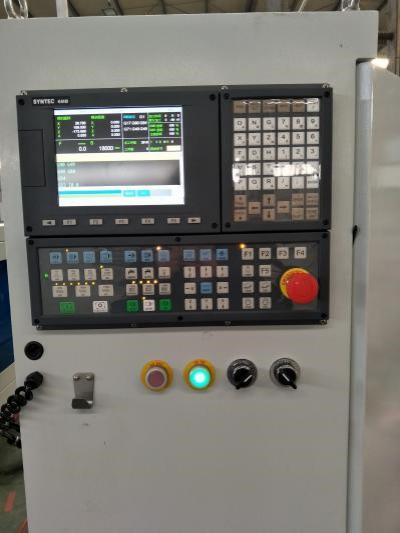

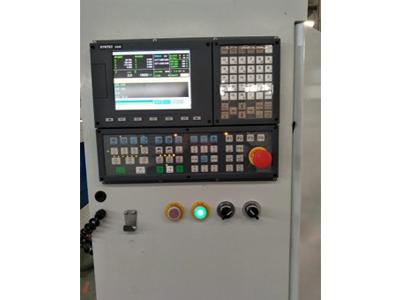

A Syntec intelligent control system is easy to operate, meaning workers can master its functions after simple training, eliminating the need for hiring specialized workers.

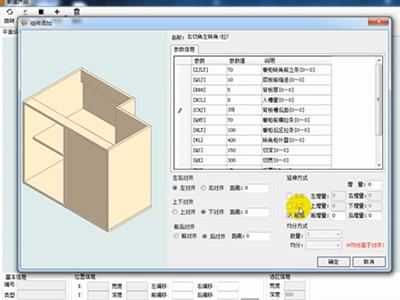

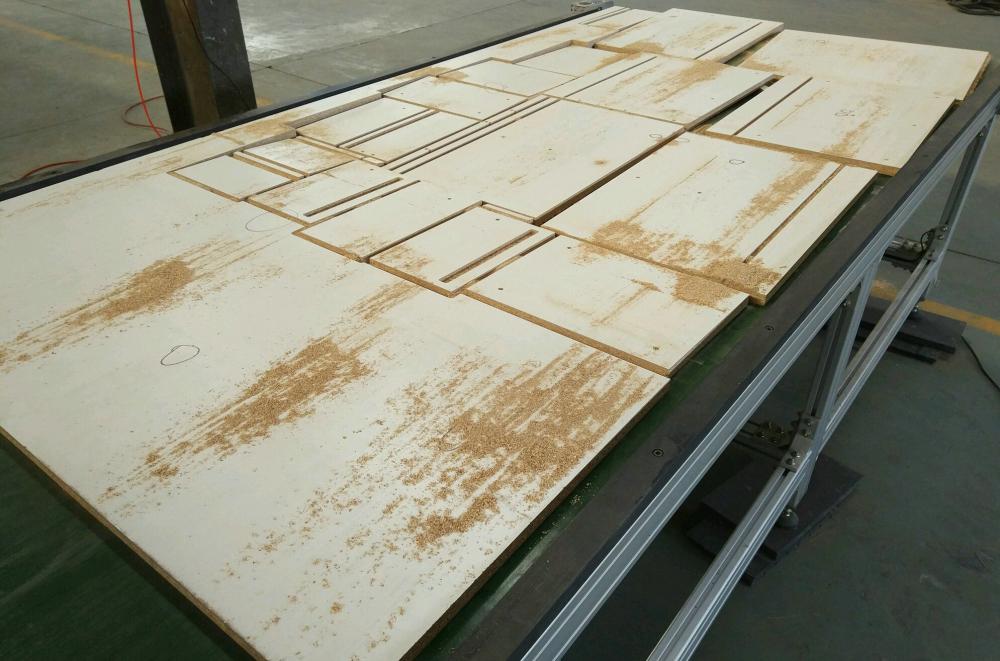

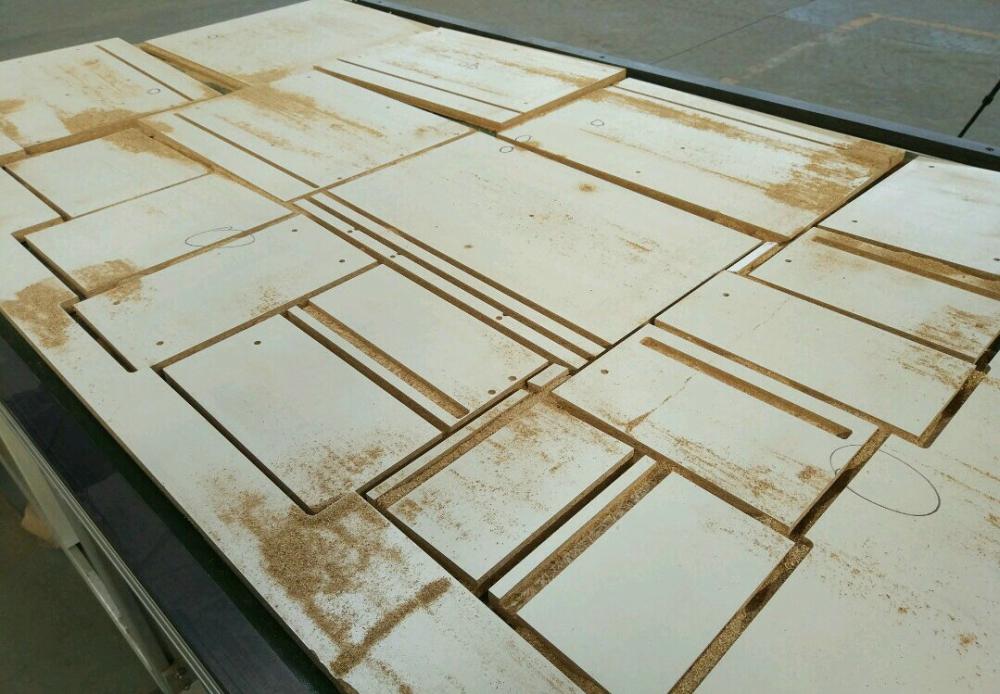

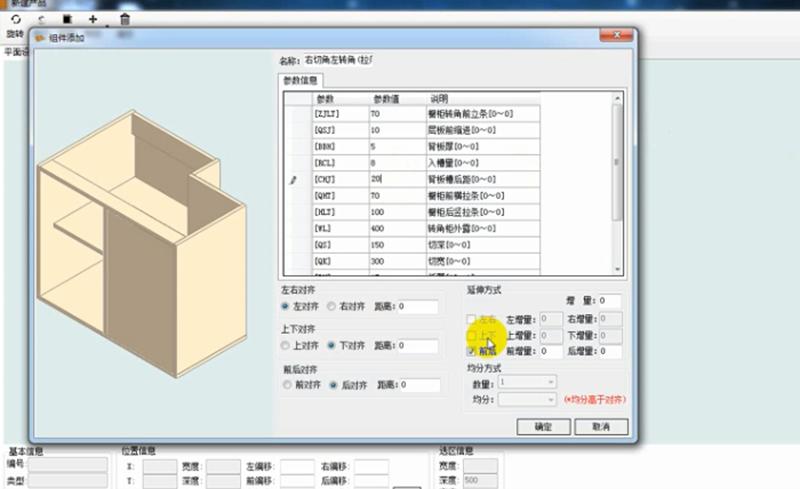

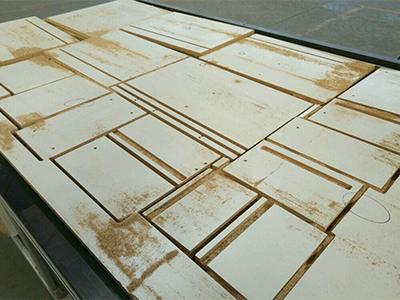

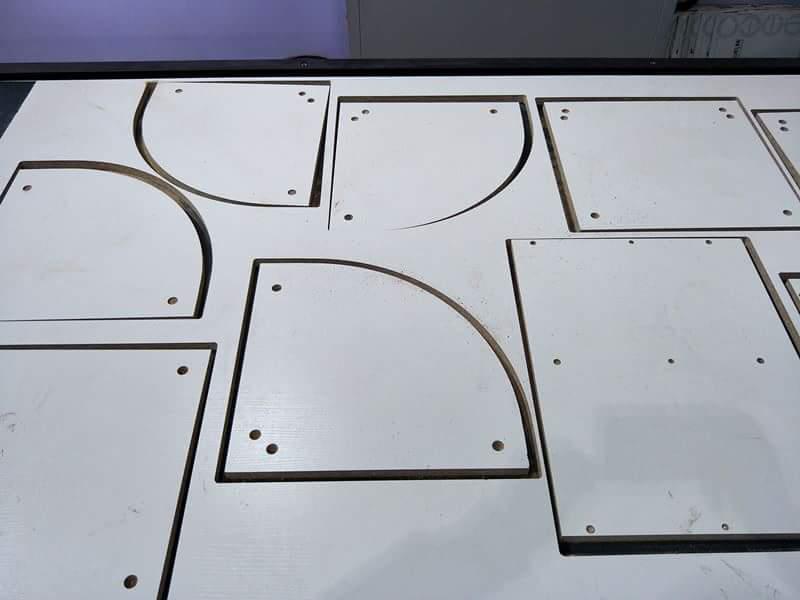

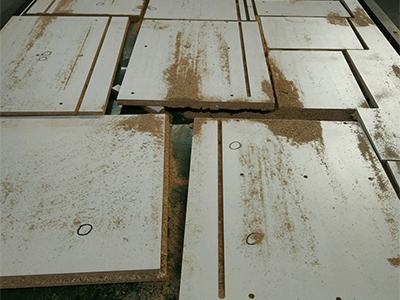

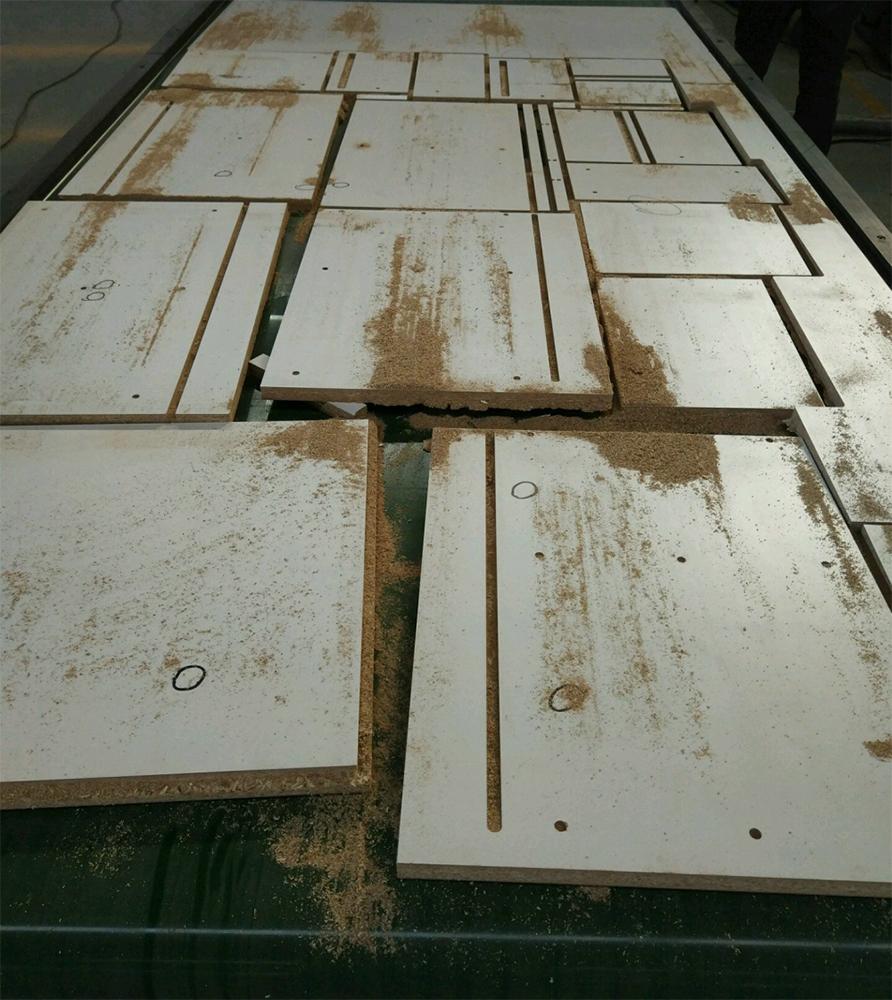

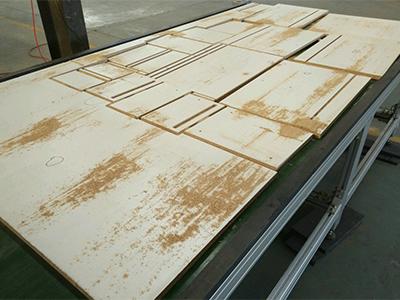

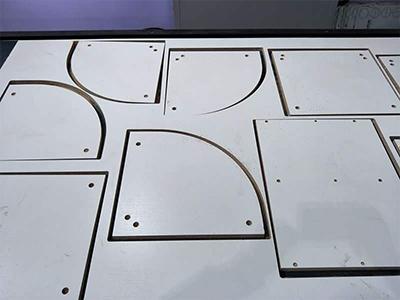

CAD/CAM software supports typesetting optimization. The advanced equipment can even process irregular workpieces. The utilization of materials is more than 95% which helps you effectively lower production costs while increasing output.
| Series | F1-AT1325AD | AT1224AD |
| Stroke | 2500*1300*250mm | 2440*1220*250mm |
| Idle speed | ≥60000mm/min | ≥60000mm/min |
| Processing speed | ≥30000mm/min | ≥30000mm/min |
| Spindle power | 9KW | 9KW |
| Spindle speed | 24000r/min | 24000r/min |
| File format | G-code | G-code |
| Working voltage | 380V/220V 3ph （Customizable） | 380V/220V 3ph （Customizable） |
| Operating system | Taiwan Syntec control system | Taiwan Syntec control system |
| Package dimensions | 2280x12000x2100mm | 2280x12000x2100mm |
| Shipping weight | 3000 KGS | 3000 KGS |
- Vacuum pump
- Vacuum cleaner
- Saw blade
5-Face Milling
CNC Machining
Gantry Planing
Welding
Welding
Founded more than two decades ago, Shandong PEF Machine Tool Co. is a lauded manufacturer of high-performance CNC processing machinery. Our equipment is carefully developed to provide users with incredible precision, and we are proud of their capabilities. We offer a series of 3/4/5-axis CNC routers that deliver a broad range of functions for many industries. These machines have been applied for numerous different applications, such as panel processing, parts prototyping, custom cabinets, architectural modeling, millwork, and much more. We provide a full range of standard equipment, but if your requirements are still not met, we can customize the machines to ensure you are fully satisfied. Contact us today to learn more!
