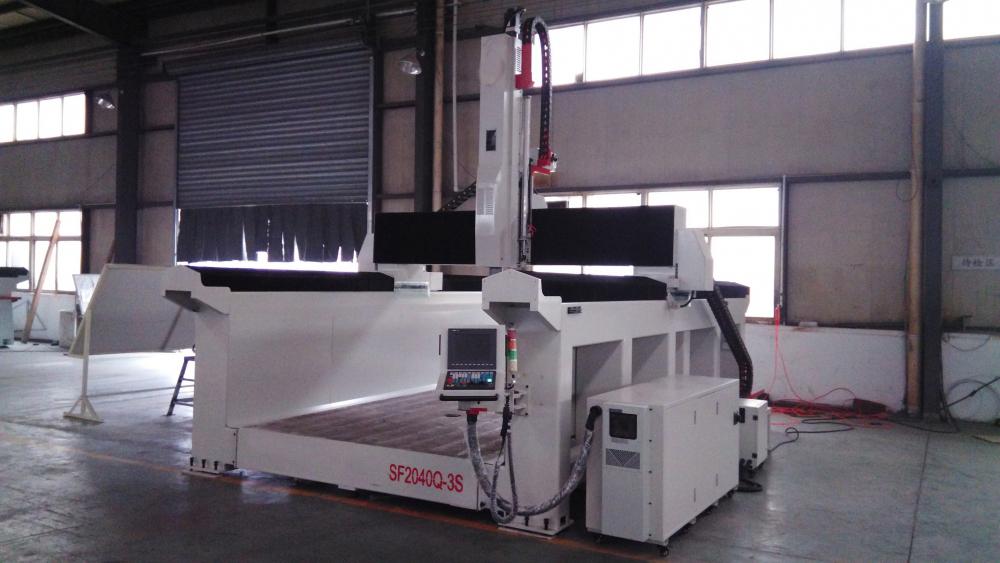

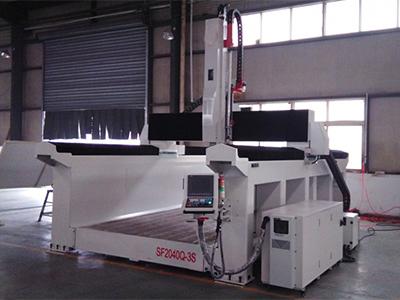

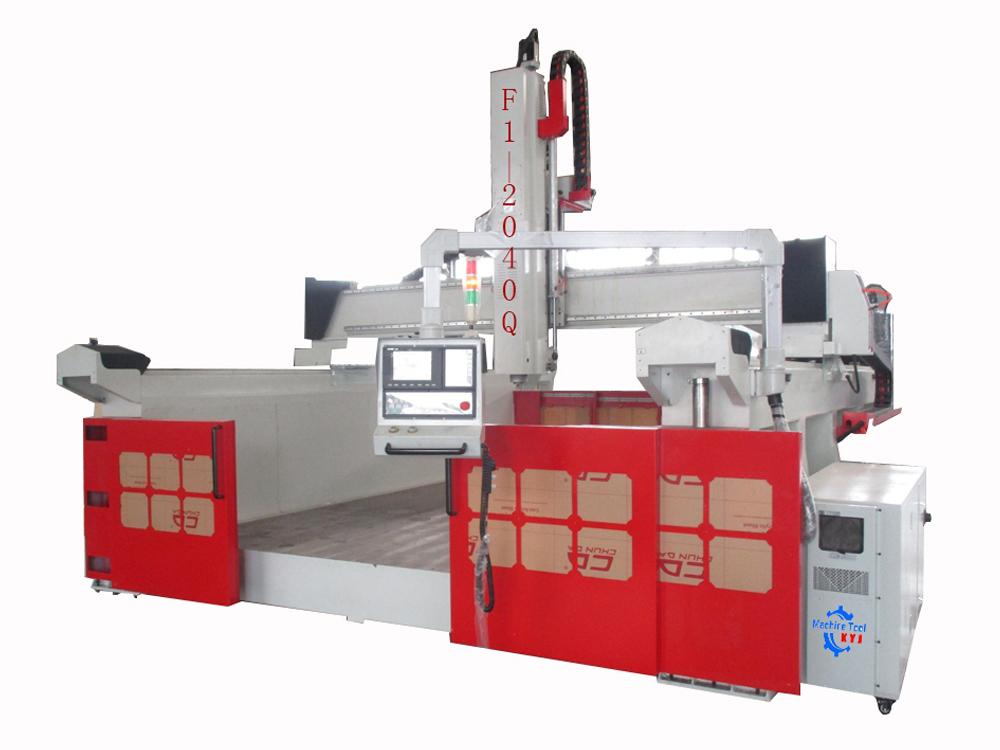

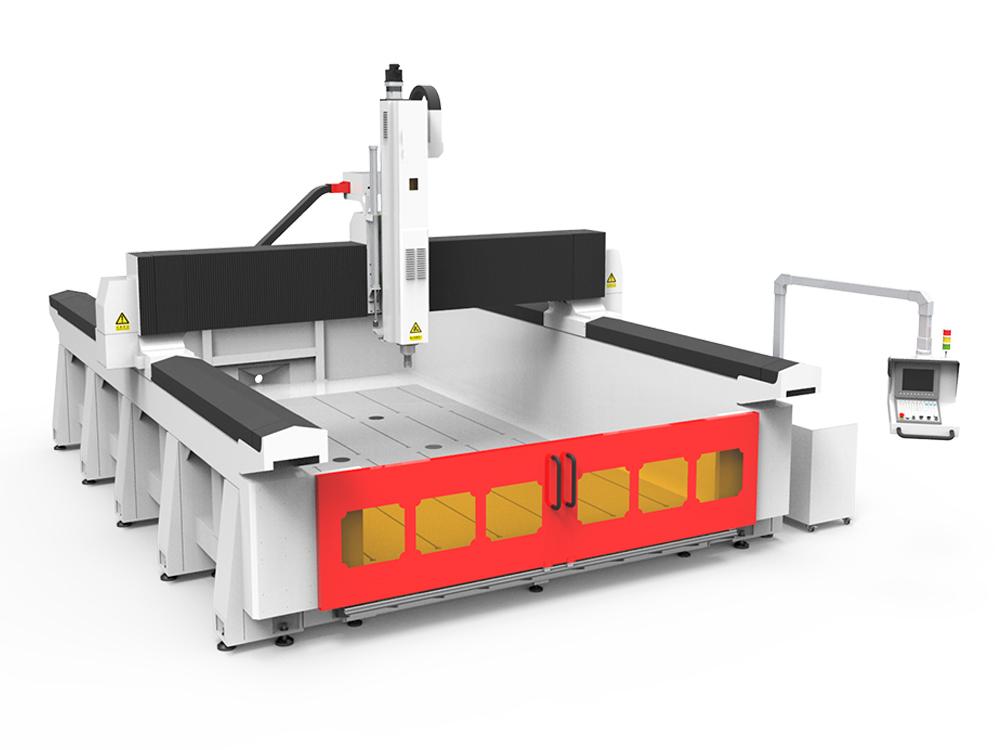

SF2040Q-3S Series Large Format Gantry CNC Router

Gantry CNC Router

Our large format gantry CNC router is an incredibly powerful piece of technology equipped with a 3 axis linkage control system. It is suitable for the 3D processing of large-format models in the foundry industry.

Materials Cut

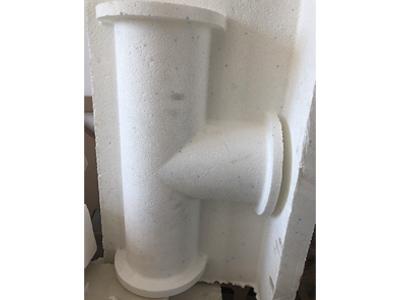

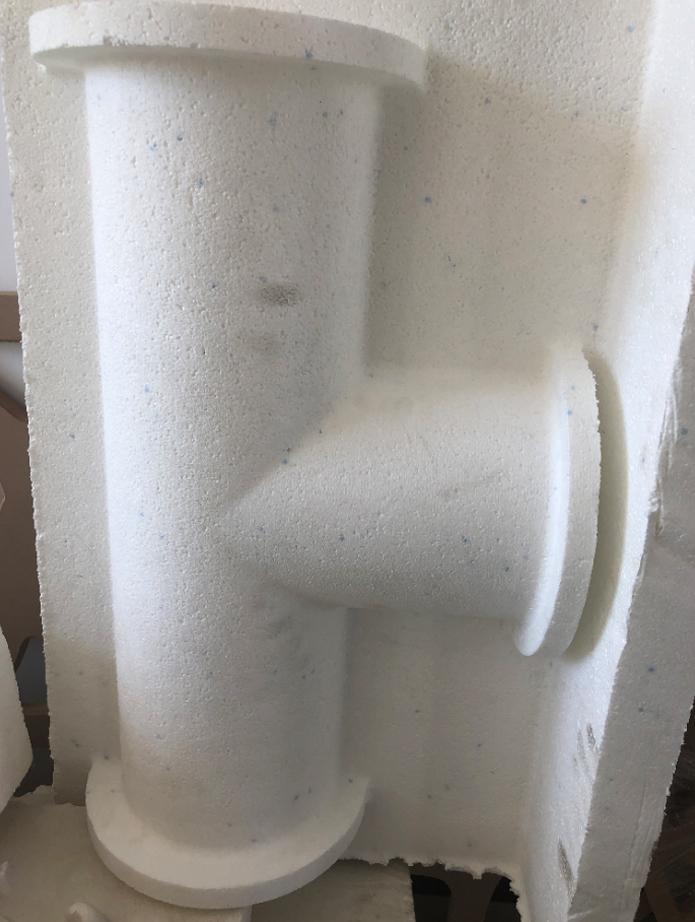

Wood, foam, plastic, fiber reinforce plastic, and other decoration materials.

  • Gantry CNC Router
  • Gantry CNC Router
  • Gantry CNC Router
  • Gantry CNC Router
Applications

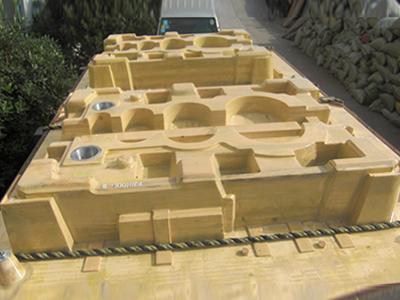

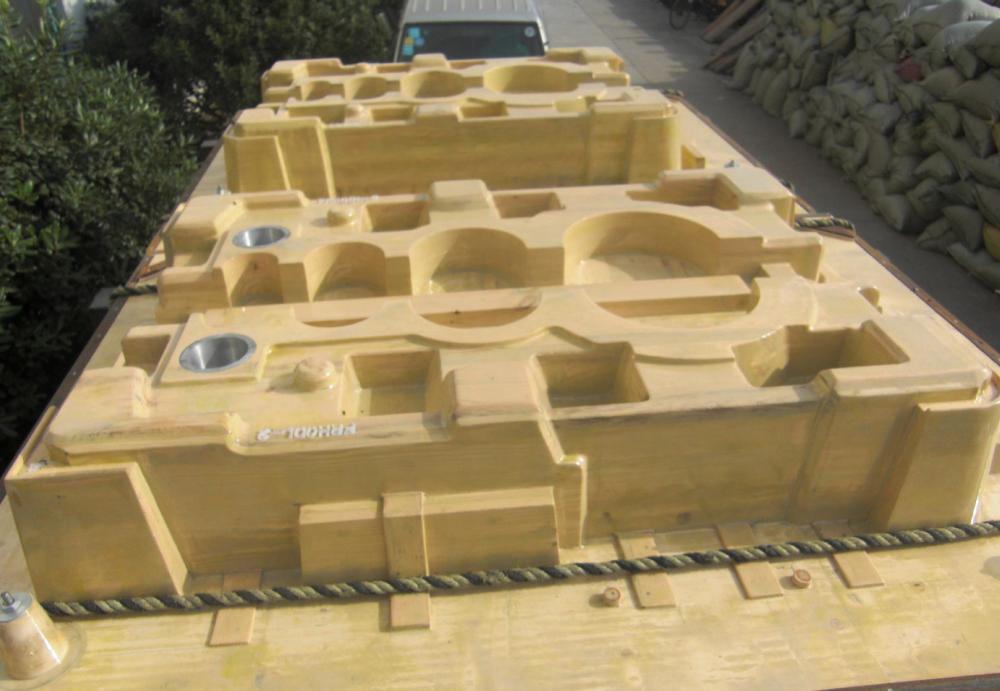

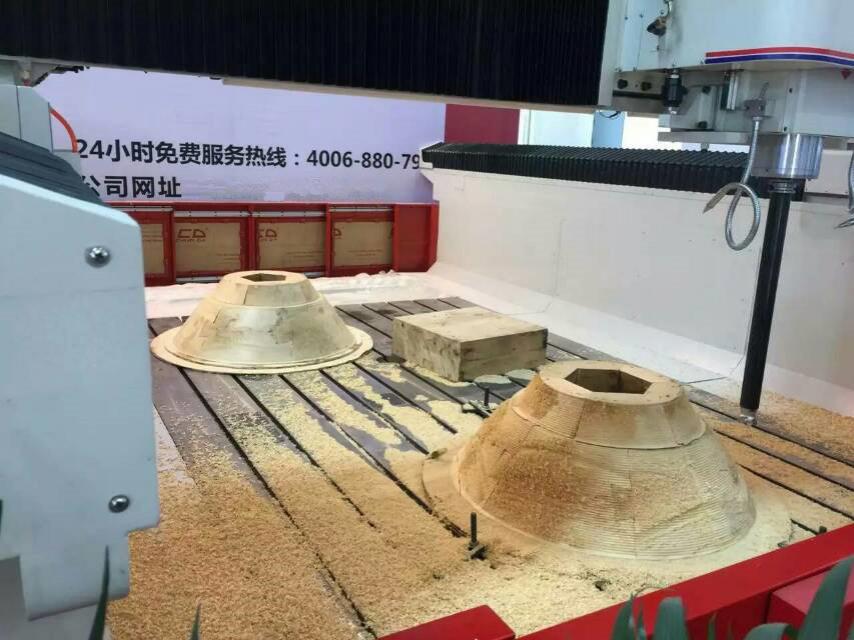

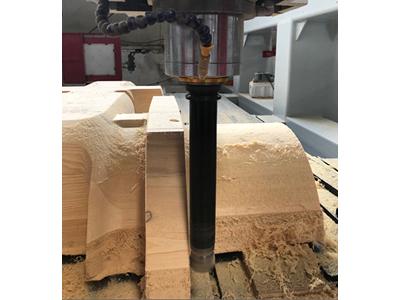

This gantry CNC router was developed for engraving large format non-metal molds. This type of router is especially ideal for the production of wood and foam automotive molds with fine machining.

Features

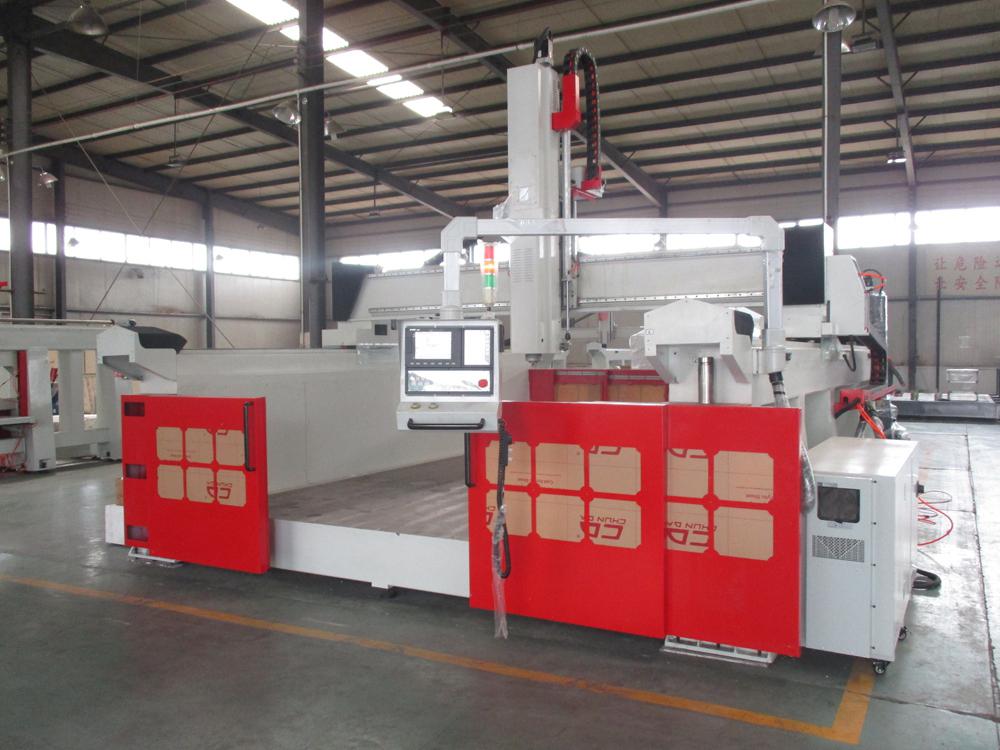

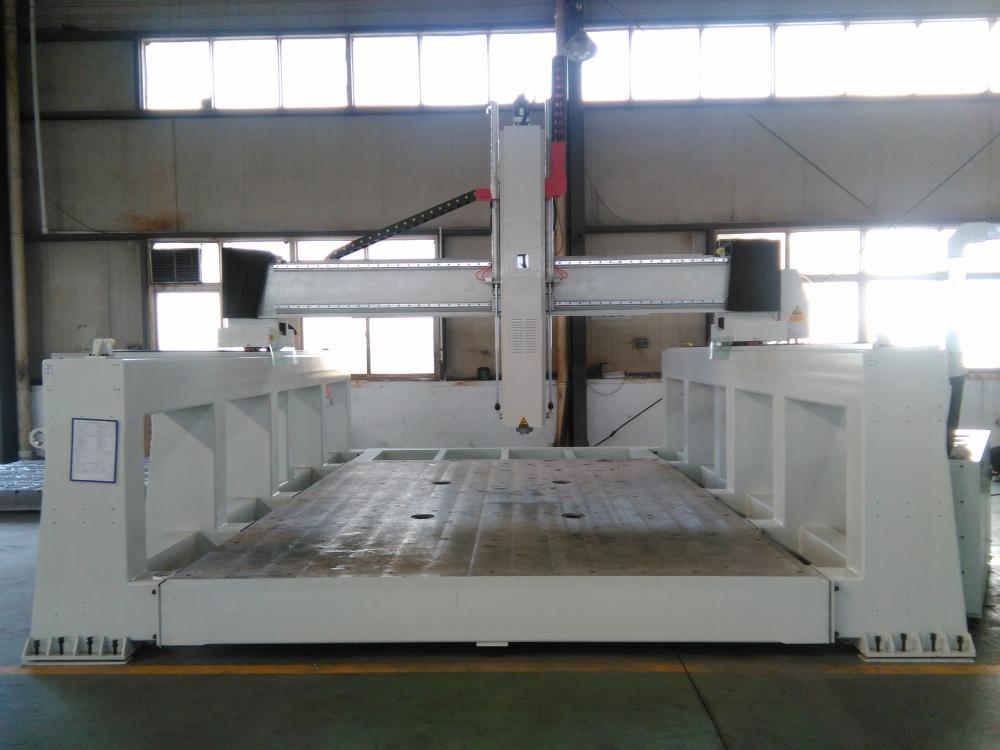

  • Gantry CNC RouterThe CNC router is equipped with a movable gantry and fixed table.
  • Gantry CNC RouterThe heavy-duty machine frame features high rigidity, maximizing operating stability.

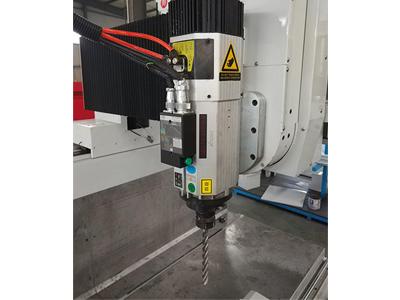

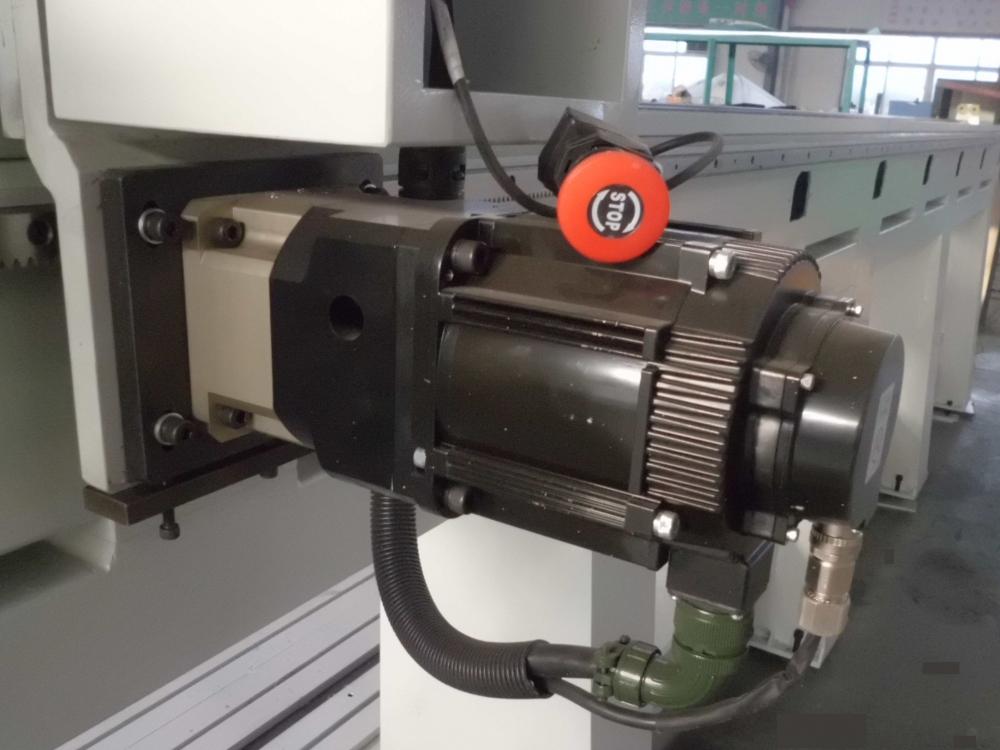

  • Gantry CNC RouterIt is equipped with a servo motor and its spindle speed is 0-12000r/min.

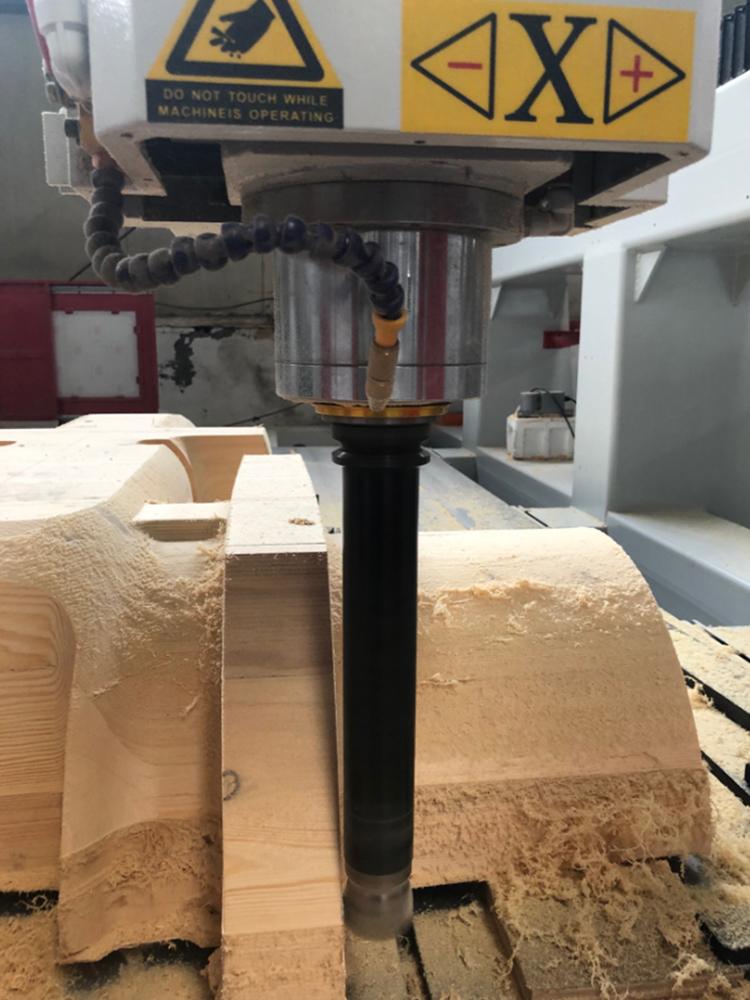

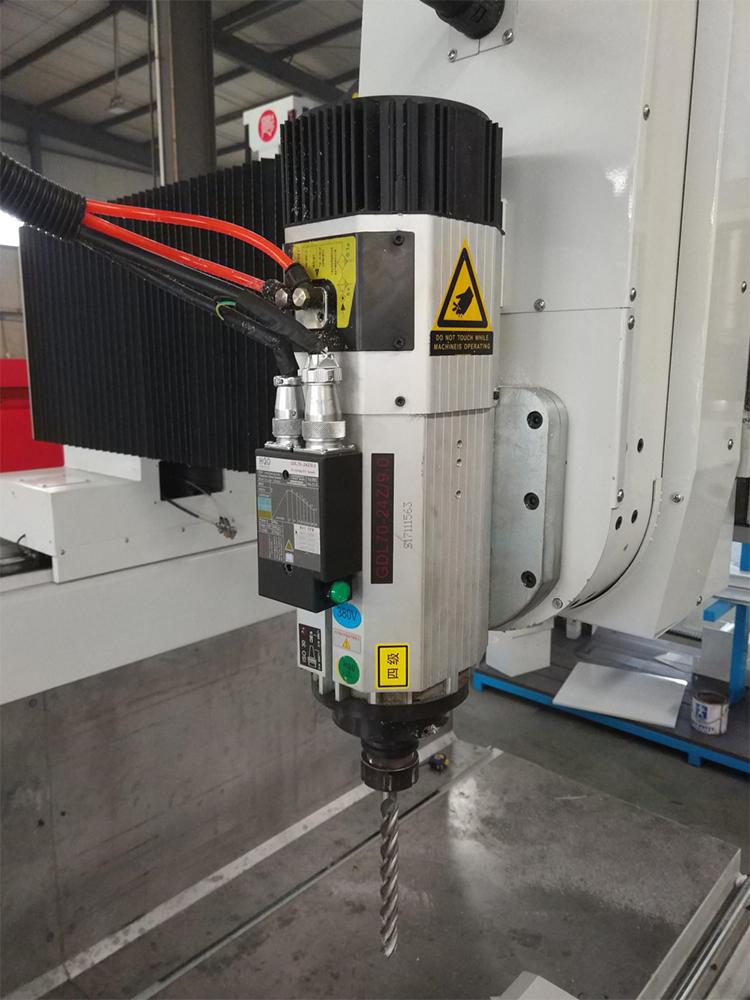

  • Gantry CNC RouterThe BT40 spindle allows for easy tool changing.

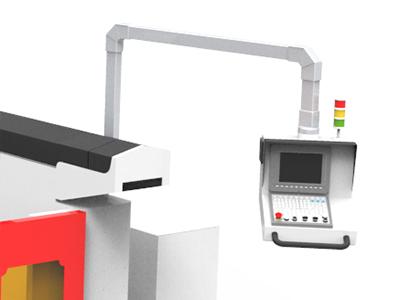

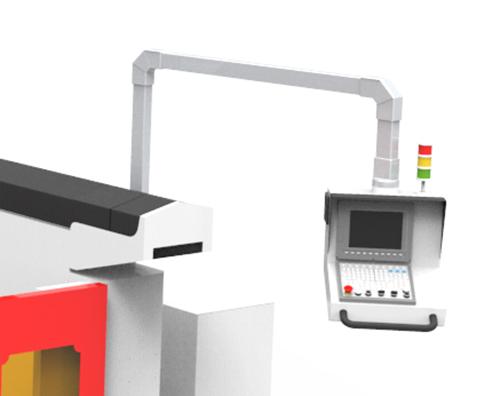

  • Gantry CNC Router The cantilever-style control panel can rotate within a 270° radius for convenient operation.

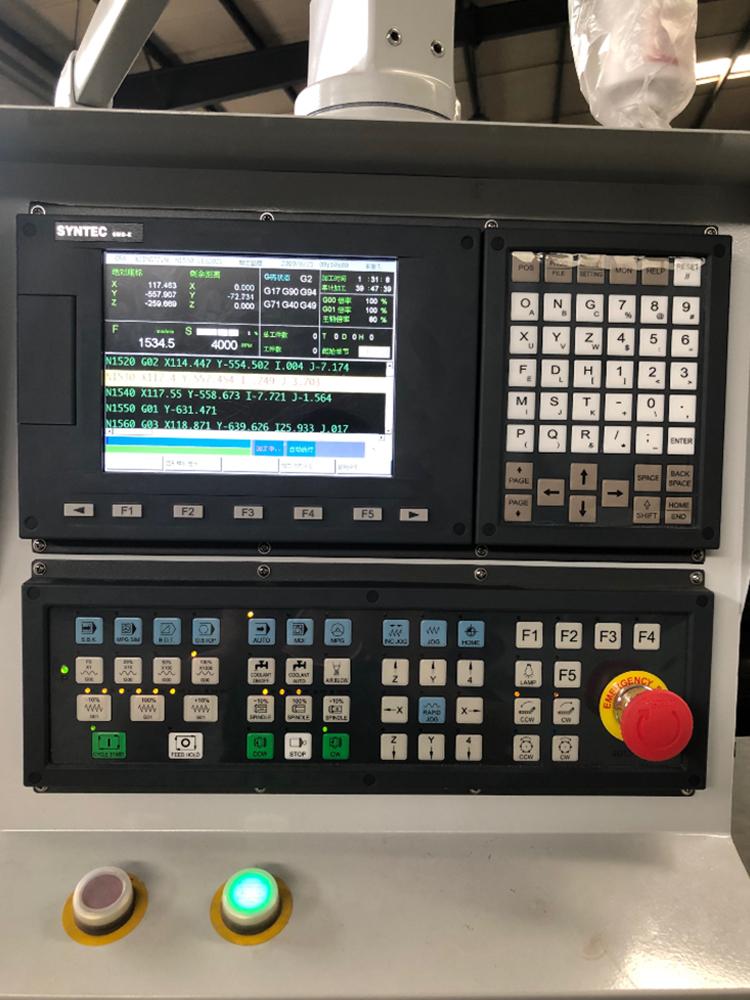

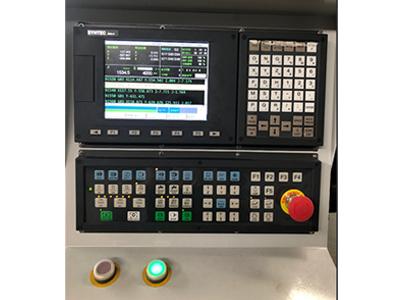

  • Gantry CNC Router A Syntec control system supports dynamic simulation, displaying dynamic graphics in real time.

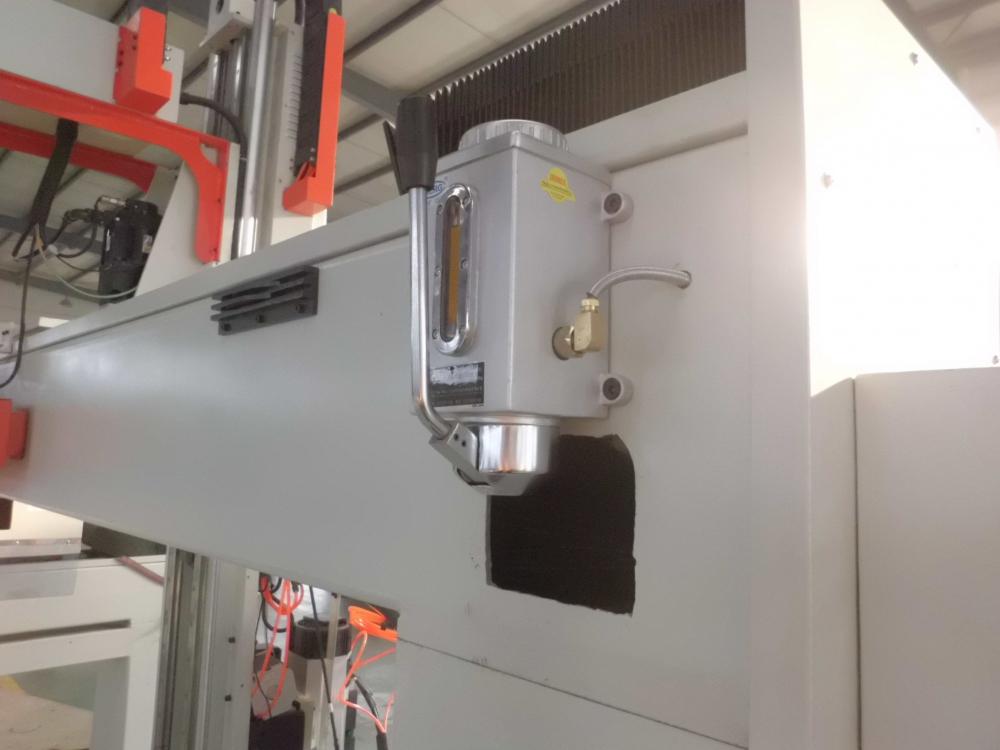

  • Gantry CNC RouterIt is equipped with an oil lubrication system, keeping parts running efficiently to prolong the equipment’s useful lifetime.

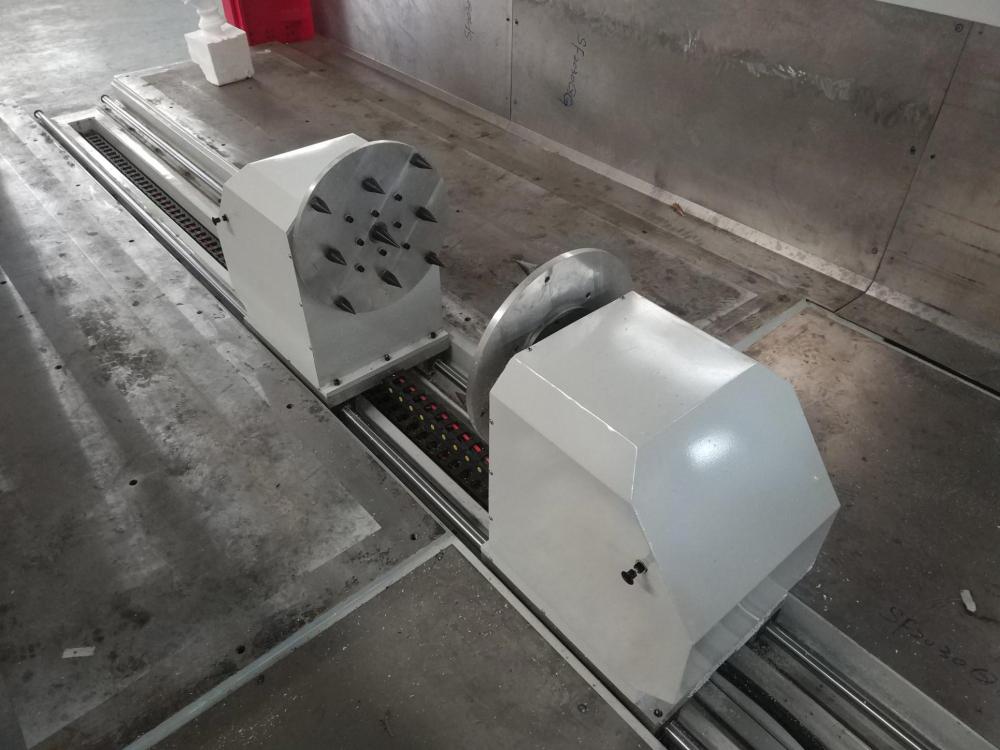

  • Gantry CNC RouterSteel table and rotary axis
Parameters
Model SF2040-3S SF2540-3S SF3050-3S SF4060-3S
XY-axis stroke 2000x4000mm 2500x4000mm 3000x5000mm 4000x6000mm
Z-axis stroke 800mm, 1000mm, 1200mm, 1500mm (Optional)
Max. feed rate X-axis: 35m/min, Y-axis: 35m/min, Z-axis:9m/min
Positioning accuracy ±0.08mm
Processing speed 0-20mm/min
Voltage, pressure Voltage AC 380V/50HZ Cylinder pressure ≥6.5Kgf/cm²
Weights 6000kg
Package dimensions 4700x2280x2300mm
Gallery
  • Gantry CNC Router
  • Gantry CNC Router
  • Gantry CNC Router
Factory Tour
  • Gantry CNC Router5-Face Milling
  • Gantry CNC RouterCNC Machining

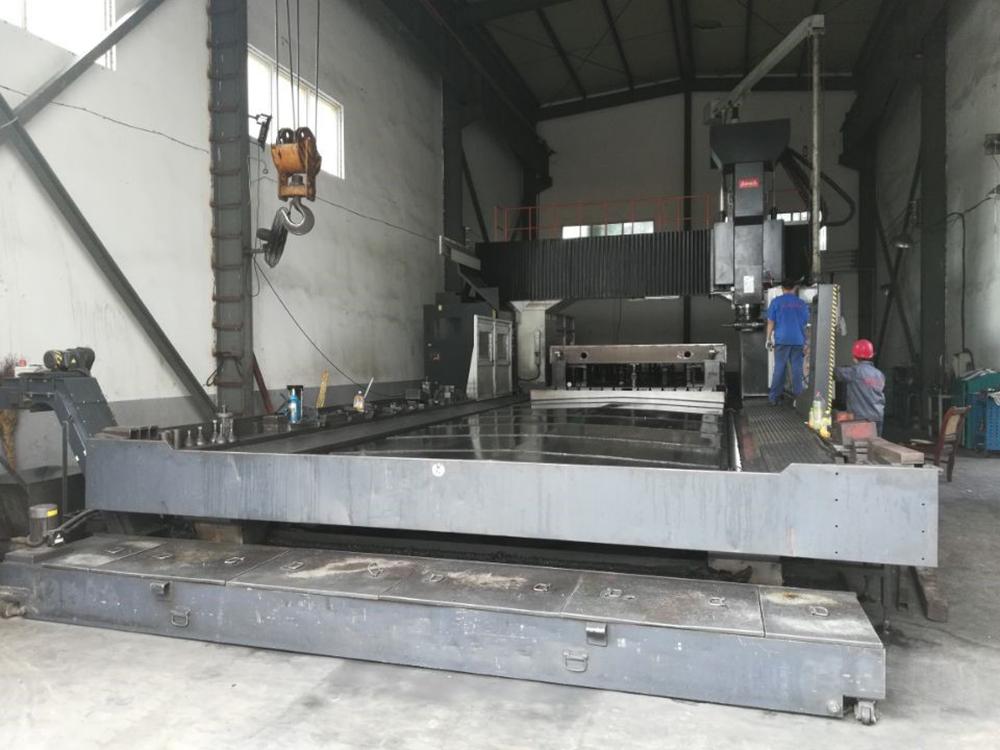

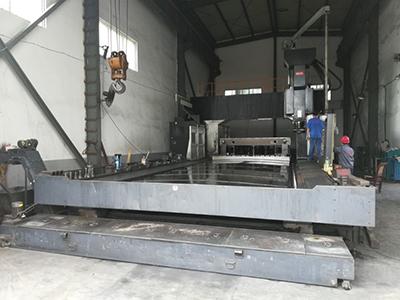

  • Gantry CNC RouterGantry Planing
  • Gantry CNC RouterWelding
  • Gantry CNC RouterWelding

Founded more than two decades ago, Shandong PEF Machine Tool Co. is a lauded manufacturer of high-performance CNC processing machinery. Our equipment is carefully developed to provide users with incredible precision, and we are proud of their capabilities. We offer a series of 3/4/5-axis CNC routers that deliver a broad range of functions for many industries. These machines have been applied for numerous different applications, such as panel processing, parts prototyping, custom cabinets, architectural modeling, millwork, and much more. We provide a full range of standard equipment, but if your requirements are still not met, we can customize the machines to ensure you are fully satisfied. Contact us today to learn more!
