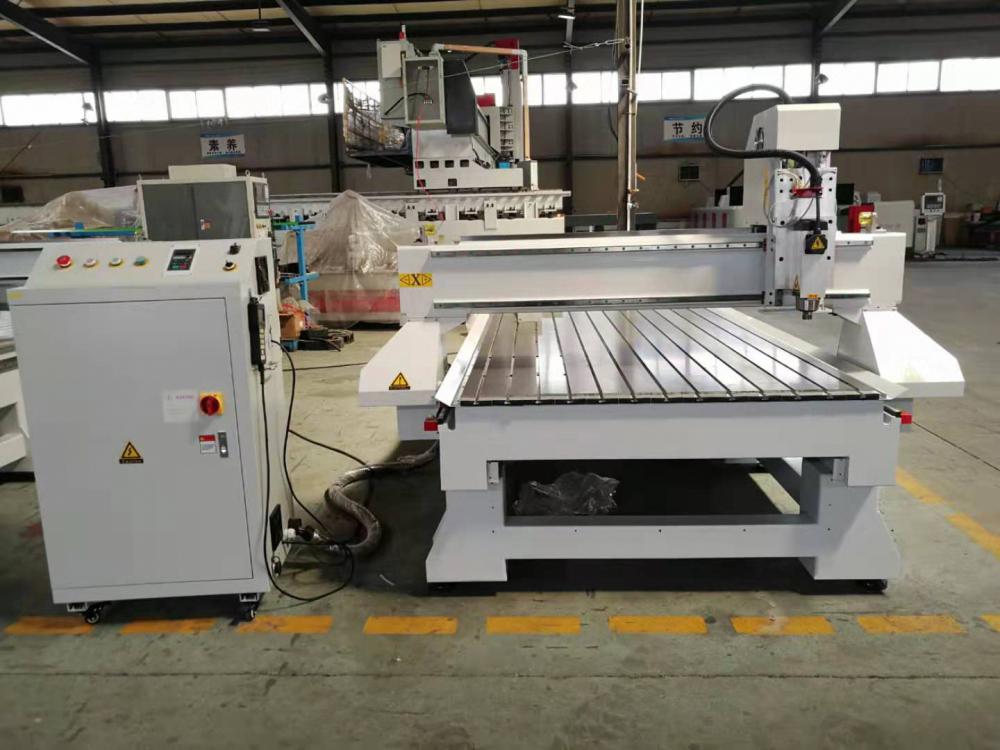

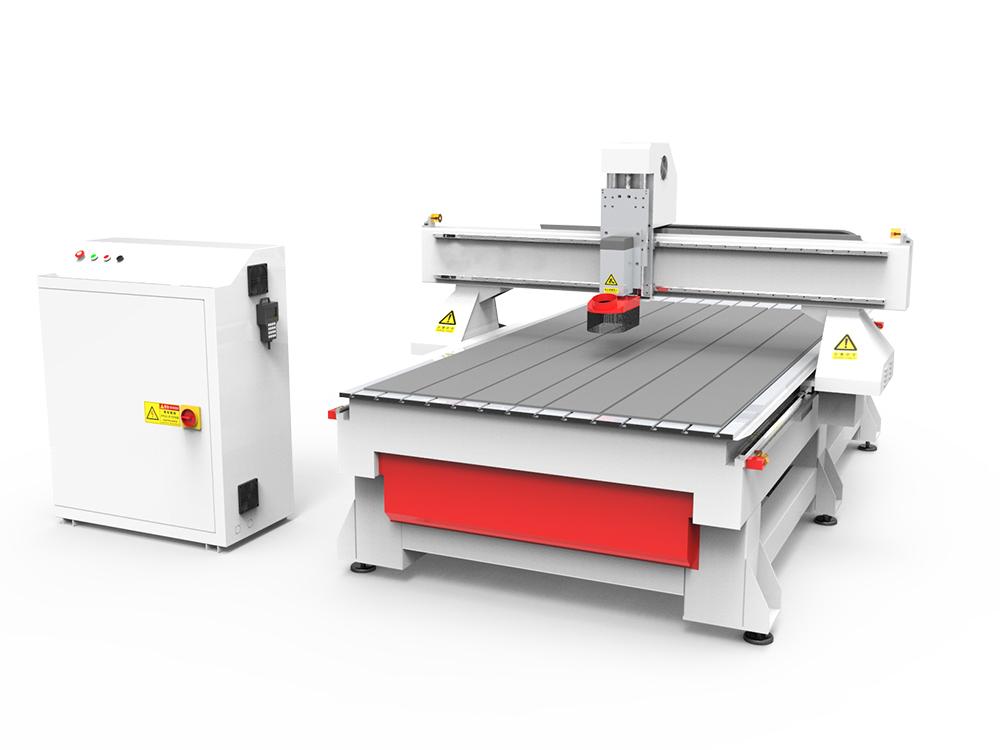

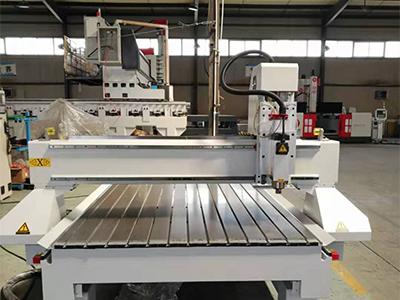

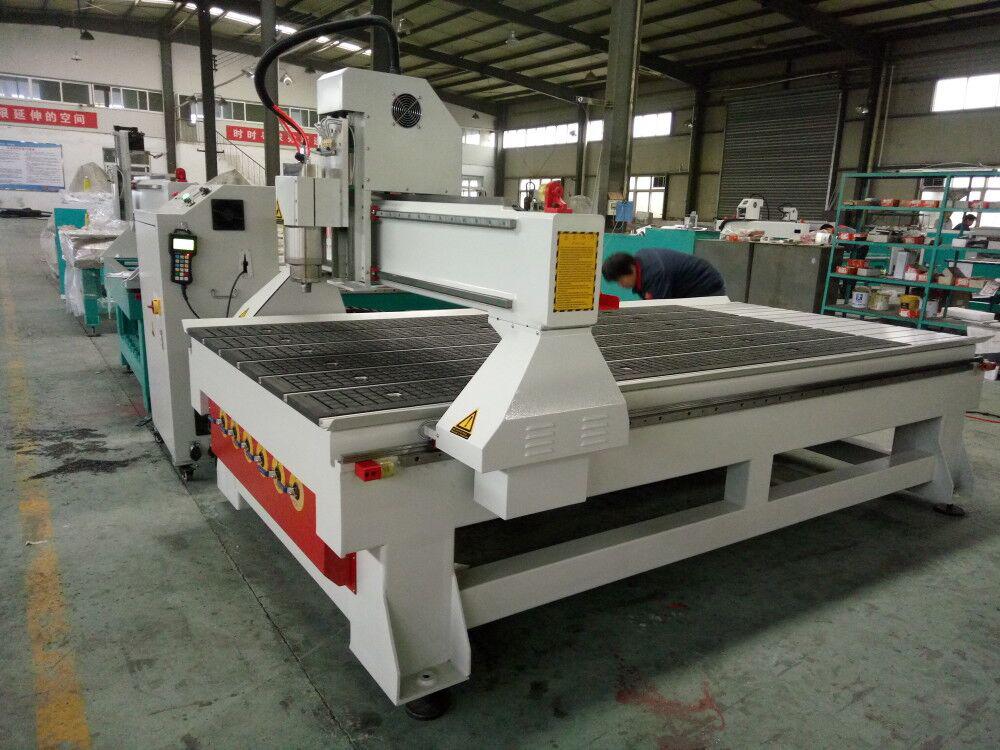

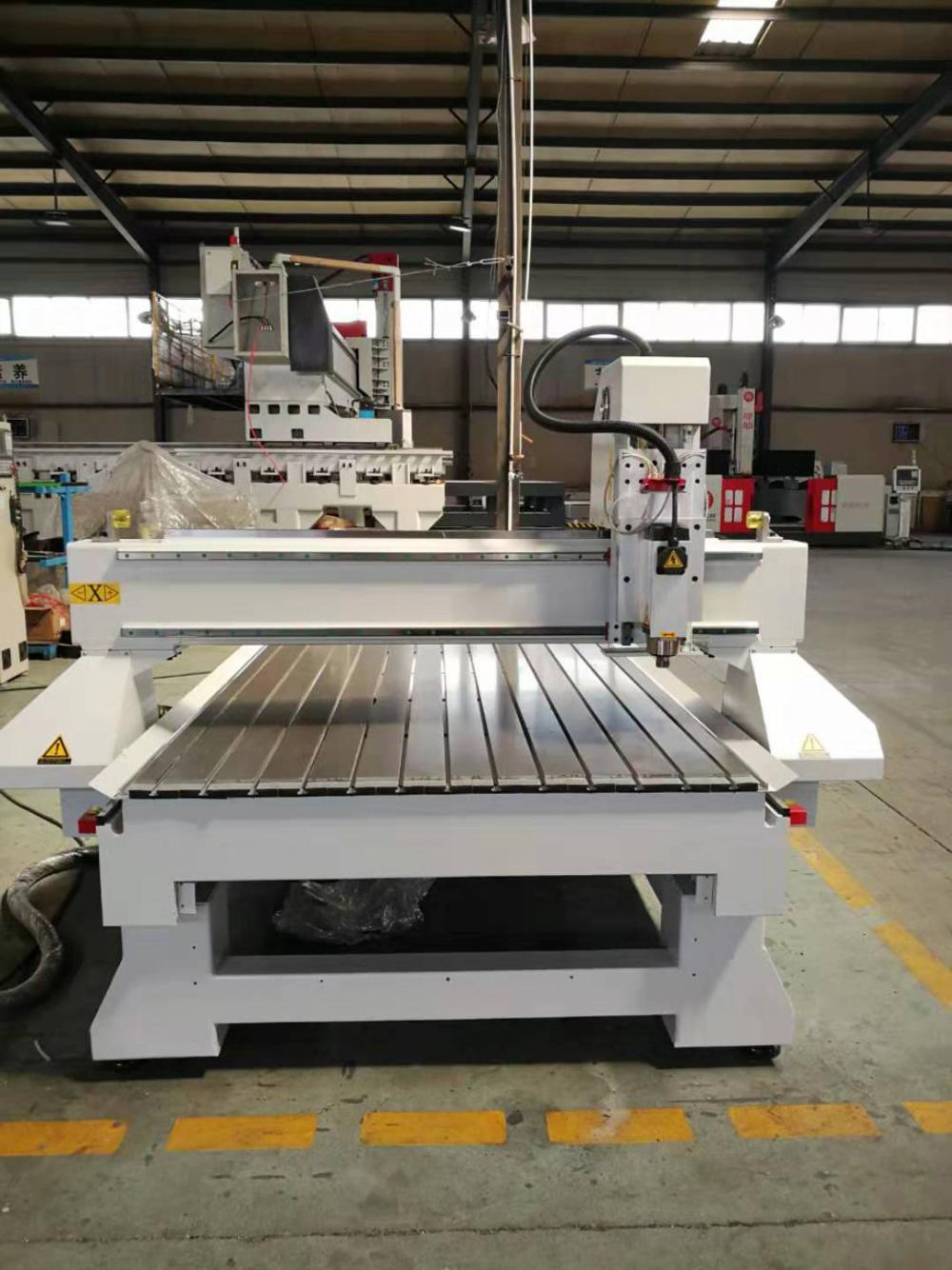

M1325B Series CNC Router/CNC Mill

Economic CNC Router

This is an economic CNC router used for milling, engraving, and cutting of a variety of wood and solid plastic products.

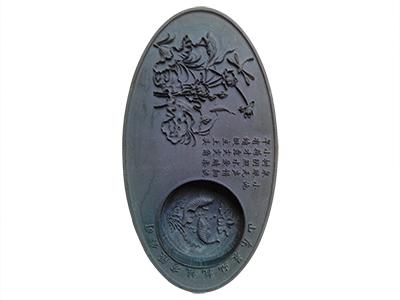

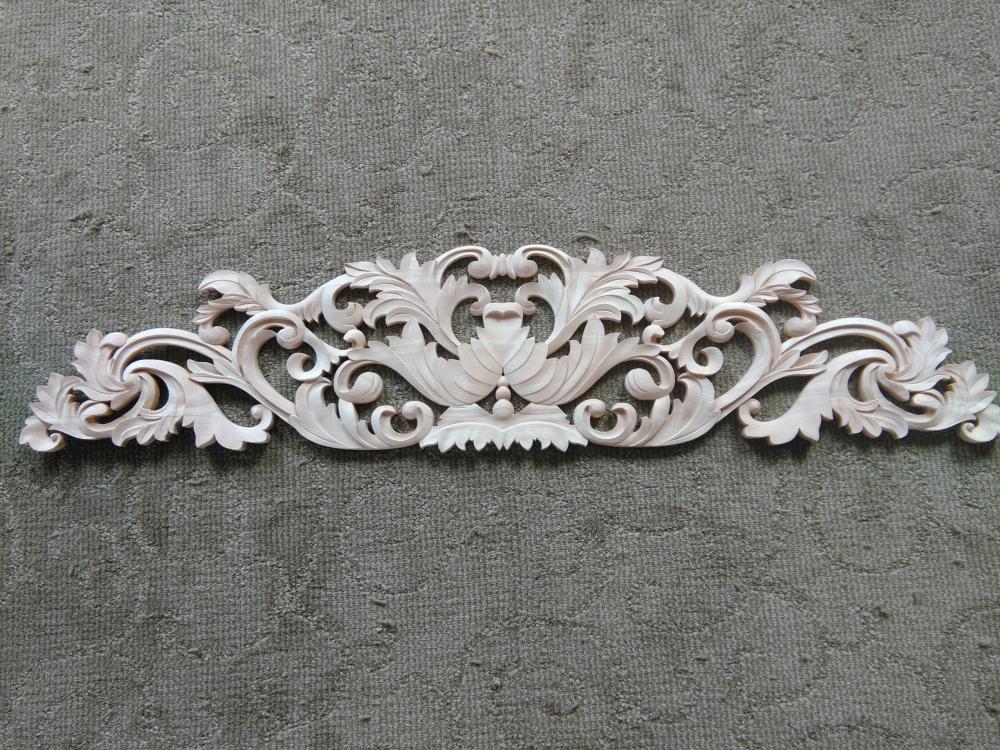

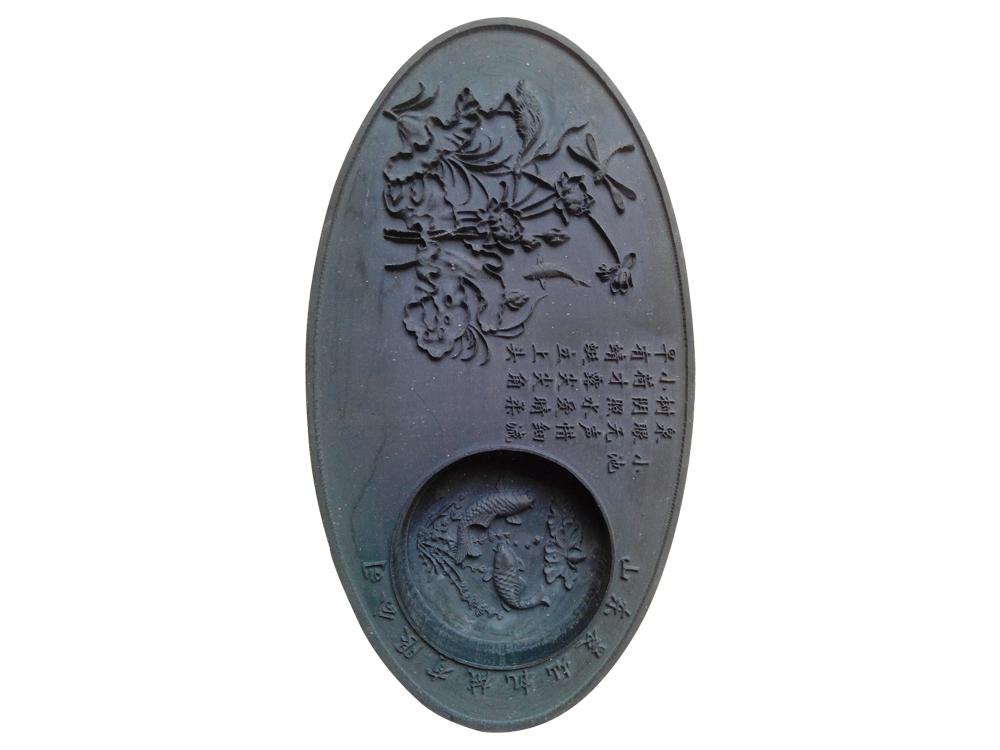

Materials Cut

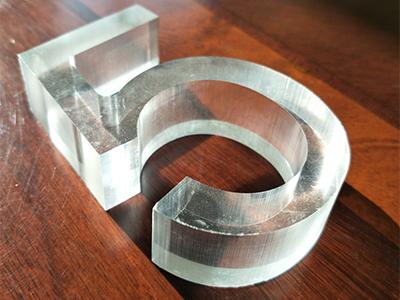

Wood, plastic, acrylic, resin, fiberboard, etc.

  • Economic CNC Router
  • Economic CNC Router
  • Economic CNC Router
  • Economic CNC Router
  • Economic CNC Router
  • Economic CNC Router
Applications

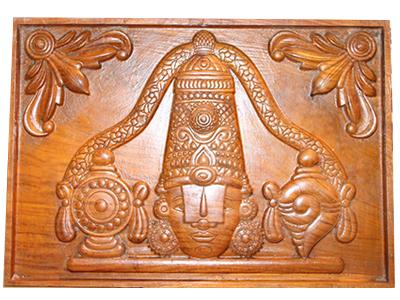

  • Furniture: wooden doors, chairs, cupboards, stairs, computer desks, musical instruments and more

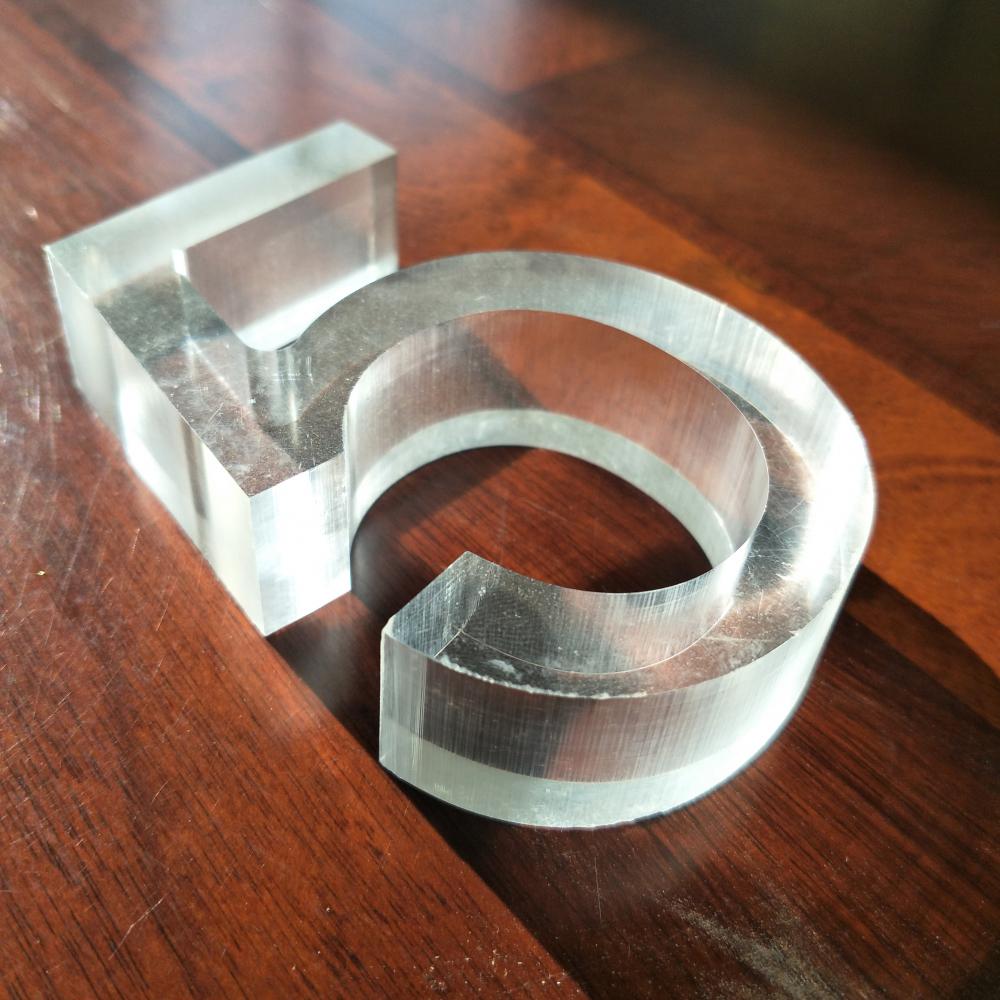

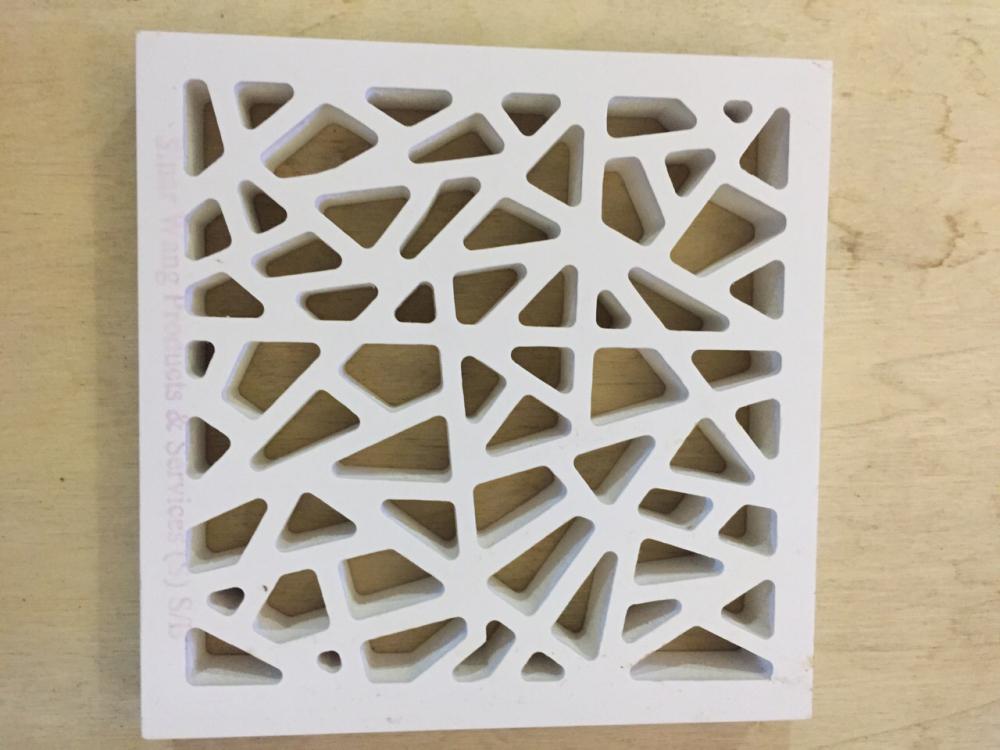

  • Decoration industry: cutting, milling, and engraving acrylic, plastic, polymethyl methacrylate, MDF, etc.
Features

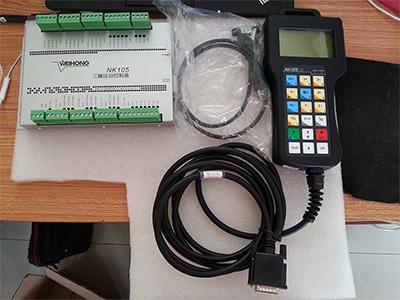

  • Economic CNC RouterThe Weihong NK105G2 control system features an operating handle, USB ports and easy operation.

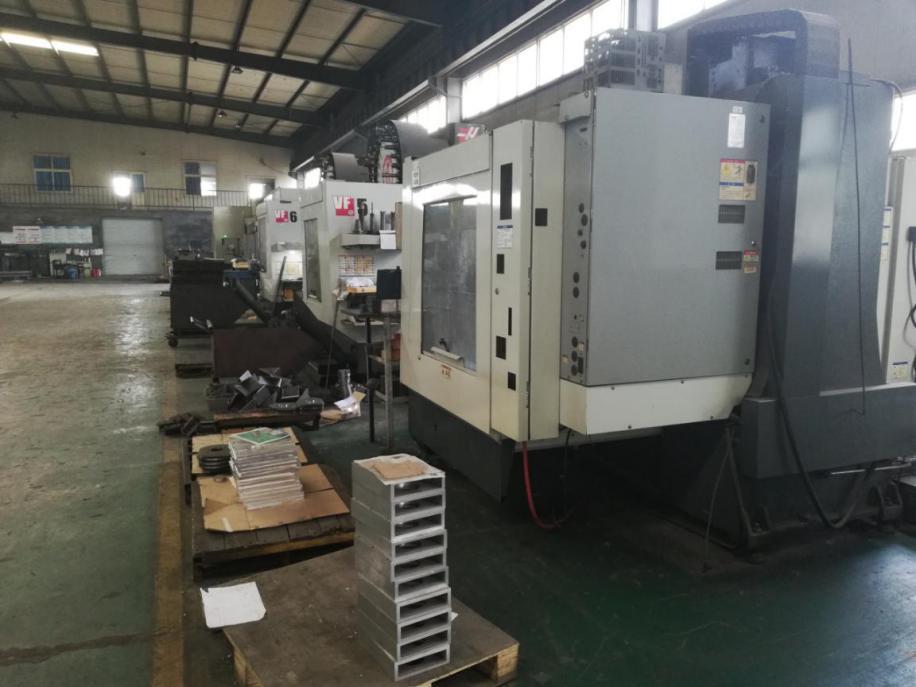

  • Economic CNC RouterThe machinery parts on the CNC mill are manufactured using a Haas CNC center to ensure the high precision and stable operation.

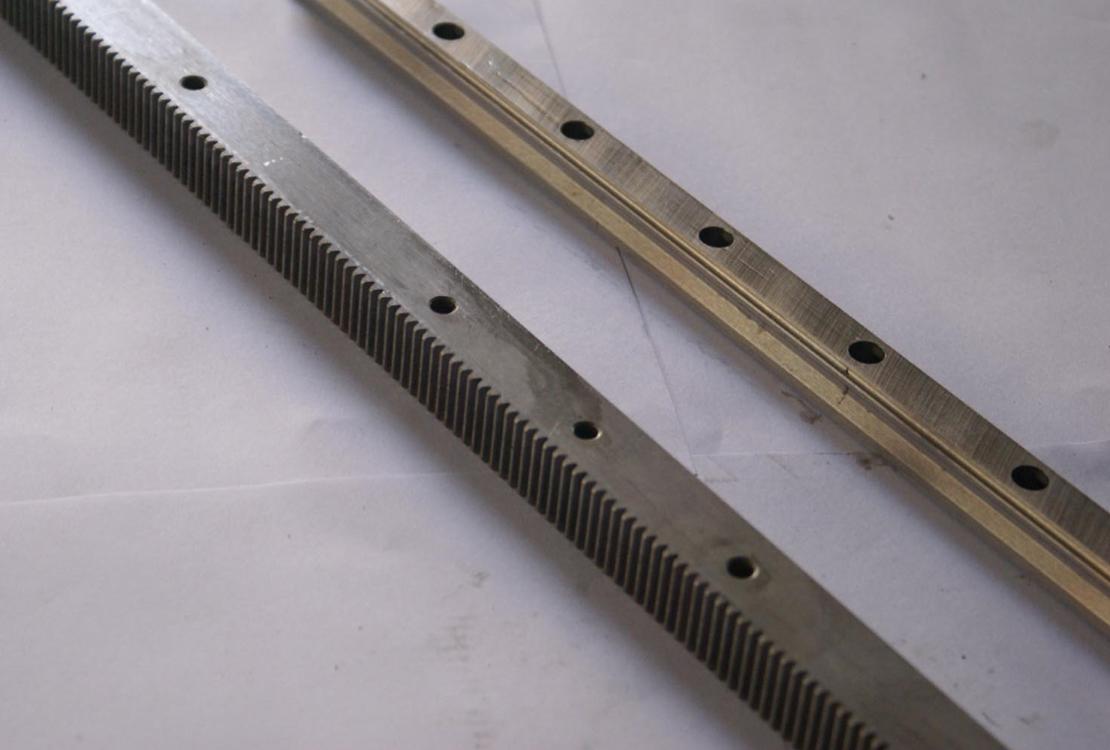

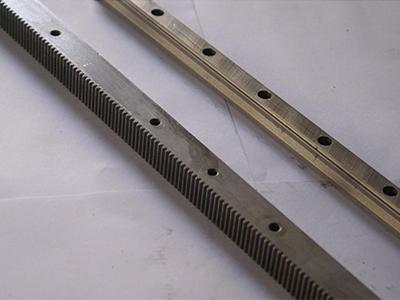

  • Economic CNC Router The X-axis and Y-axis use an HIWIN guide rail and rack driven by two motors that feature a high speed and high efficiency.

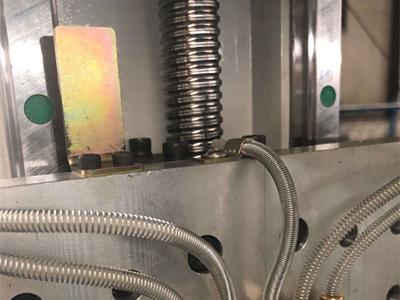

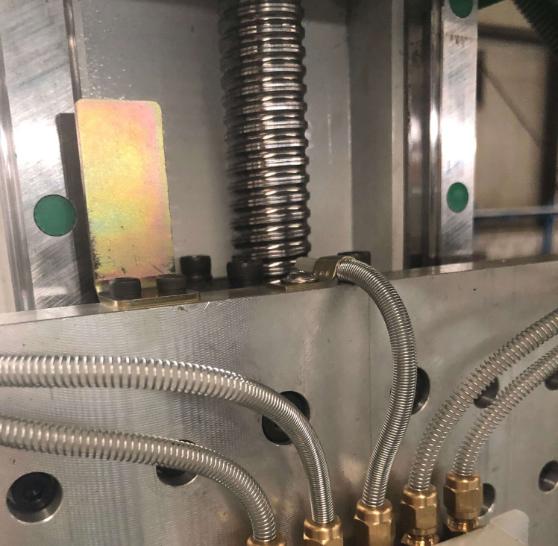

  • Economic CNC RouterThe Z axis is equipped with aTBI square guide rail with double rows and a four column ball bearing slider.

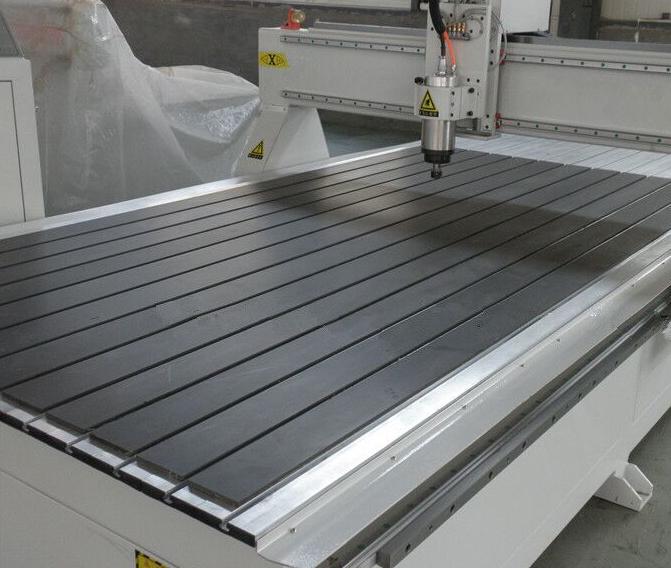

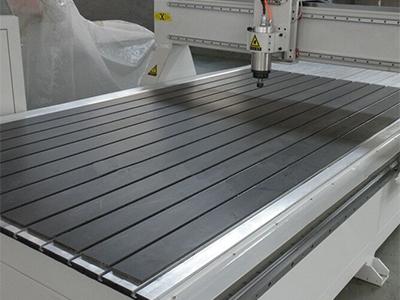

  • Economic CNC RouterThe table is manufactured using aluminum profiles and protected by a PVC coating.
Parameters
Model F5-M1325B F5-M1631B F5-M2131B F5-M2142B
Stroke 1300*2500*200mm 1600*3100*200mm 2100*3100*200mm 2100*4200*200mm
Support software Type3/Artcam/Mastercam/UG
Working voltage AC380V-/220V
Package dimensions 3100*2100*2100mm 3800*2100*2100mm 3800*2200*2100mm 4900*2200*2100mm
Weights 1400 kg 1700 kg 2000 kg 2200 kg
Optional Device
  • The air cooled spindles can be replaced with water cooled spindles.
  • The table can be replaced with a vacuum table equipped with a vacuum pump and vacuum cleaner.
Gallery
  • Economic CNC Router
  • Economic CNC Router
  • Economic CNC Router
Factory Tour
  • Economic CNC Router5-Face Milling
  • Economic CNC RouterCNC Machining
  • Economic CNC RouterGantry Planing
  • Economic CNC RouterWelding
  • Economic CNC RouterWelding

Founded more than two decades ago, Shandong PEF Machine Tool Co. is a lauded manufacturer of high-performance CNC processing machinery. Our equipment is carefully developed to provide users with incredible precision, and we are proud of their capabilities. We offer a series of 3/4/5-axis CNC routers that deliver a broad range of functions for many industries. These machines have been applied for numerous different applications, such as panel processing, parts prototyping, custom cabinets, architectural modeling, millwork, and much more. We provide a full range of standard equipment, but if your requirements are still not met, we can customize the machines to ensure you are fully satisfied. Contact us today to learn more!
