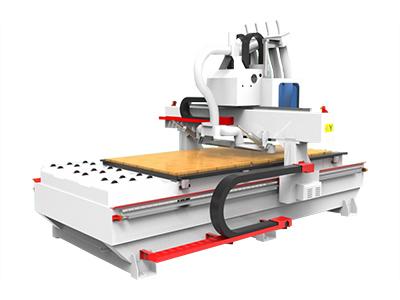

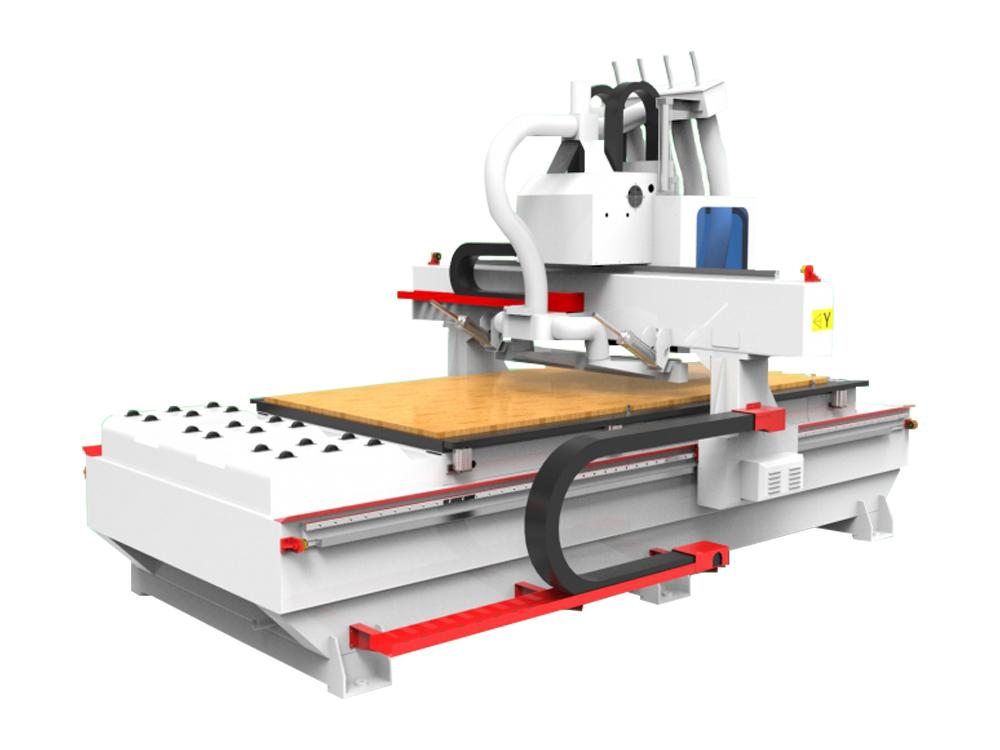

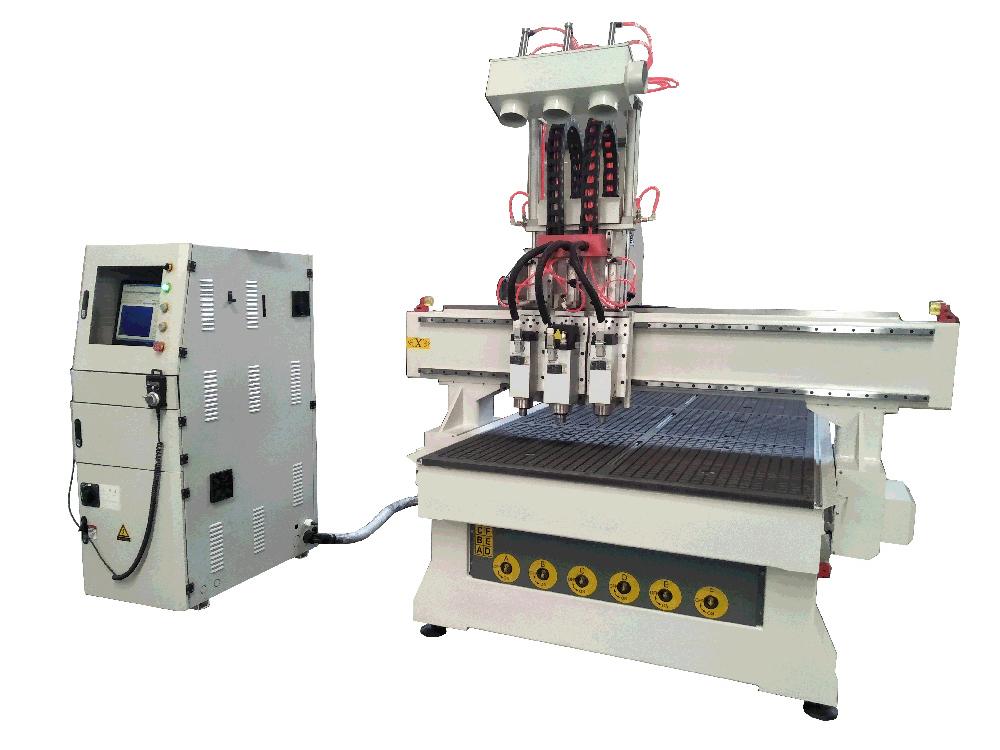

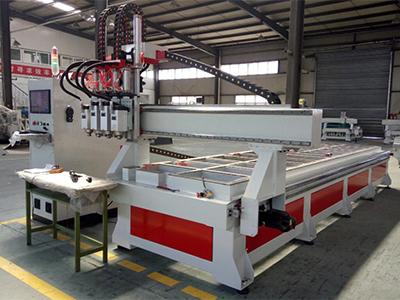

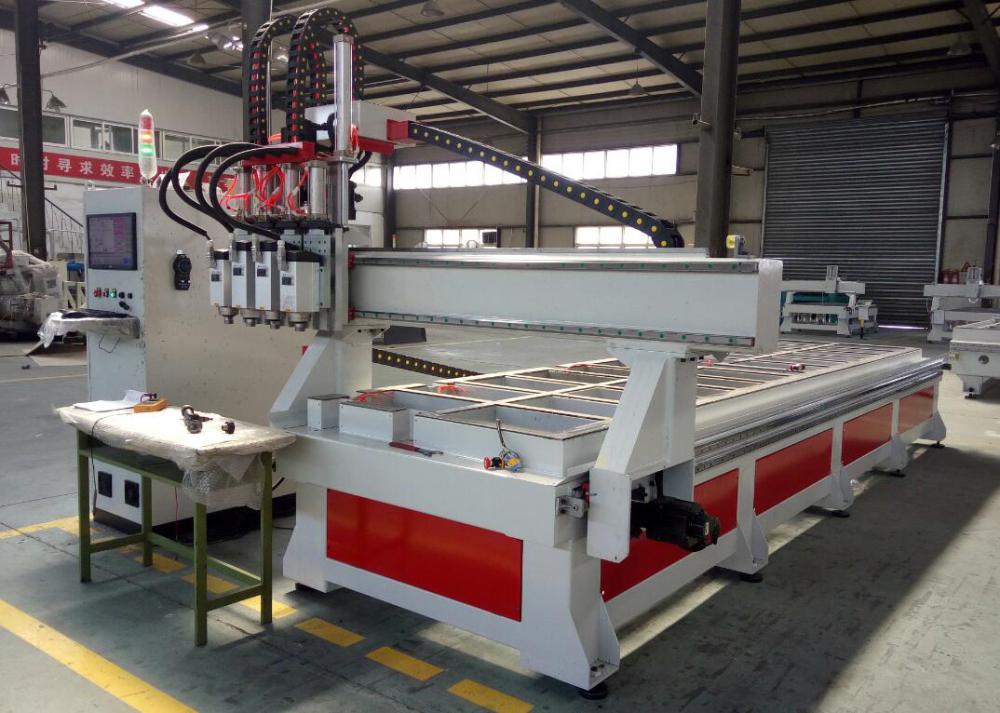

M1325AS3 Series CNC Router/CNC Mill

  • 3 Spindles CNC Router
  • 3 Spindles CNC Router

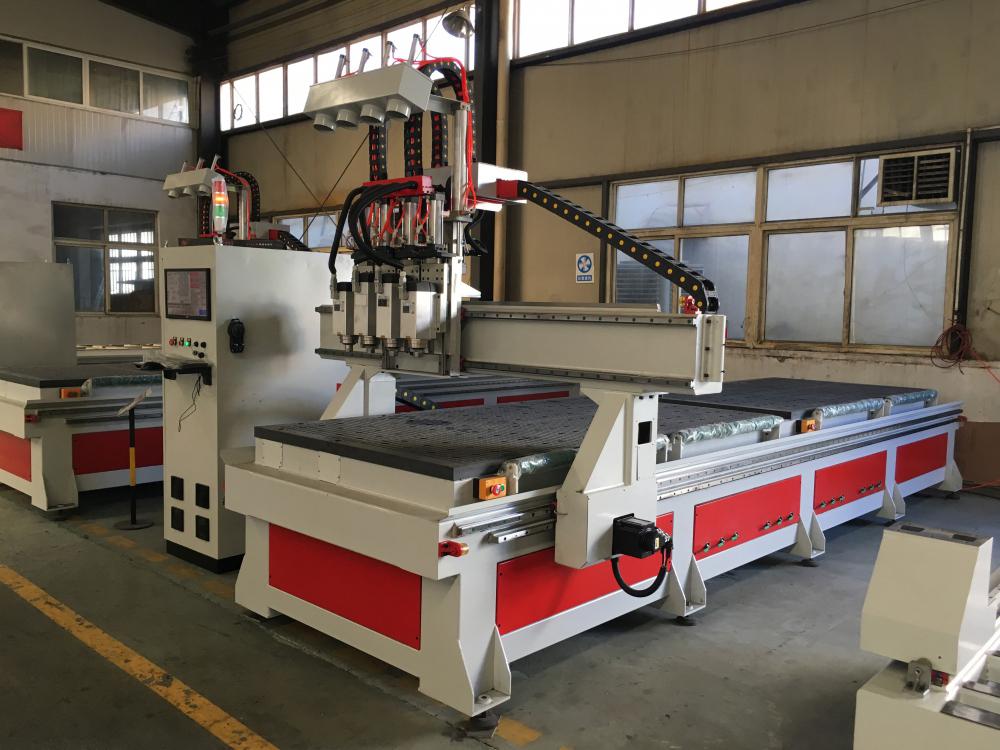

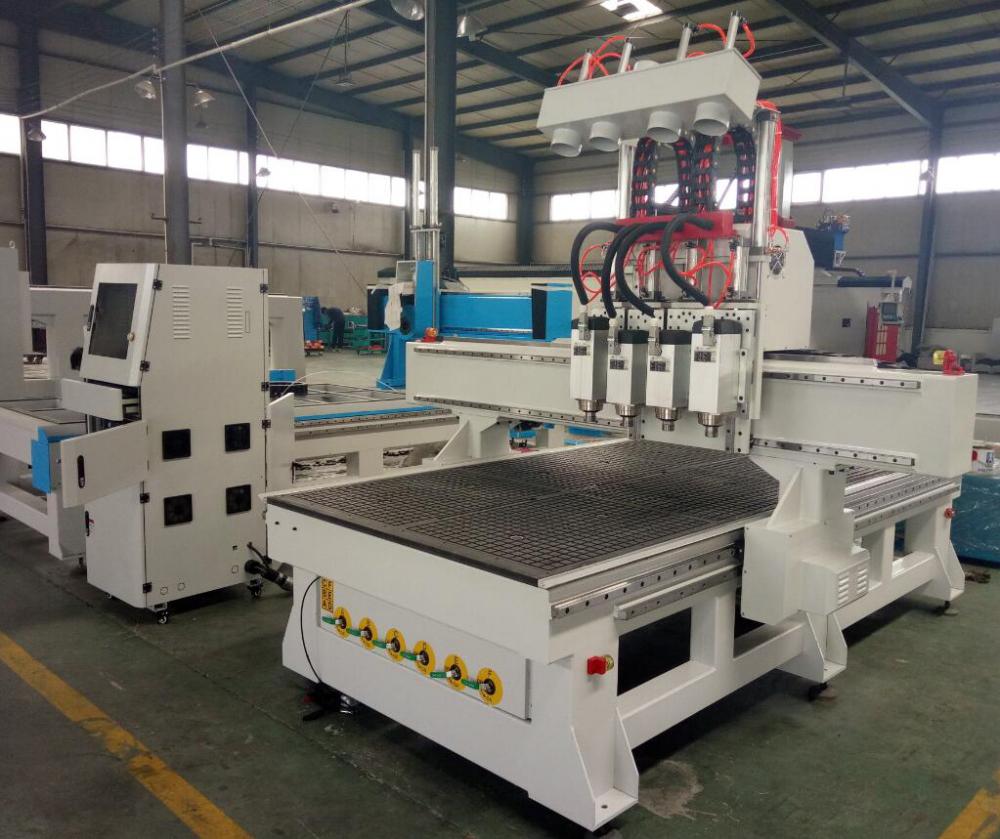

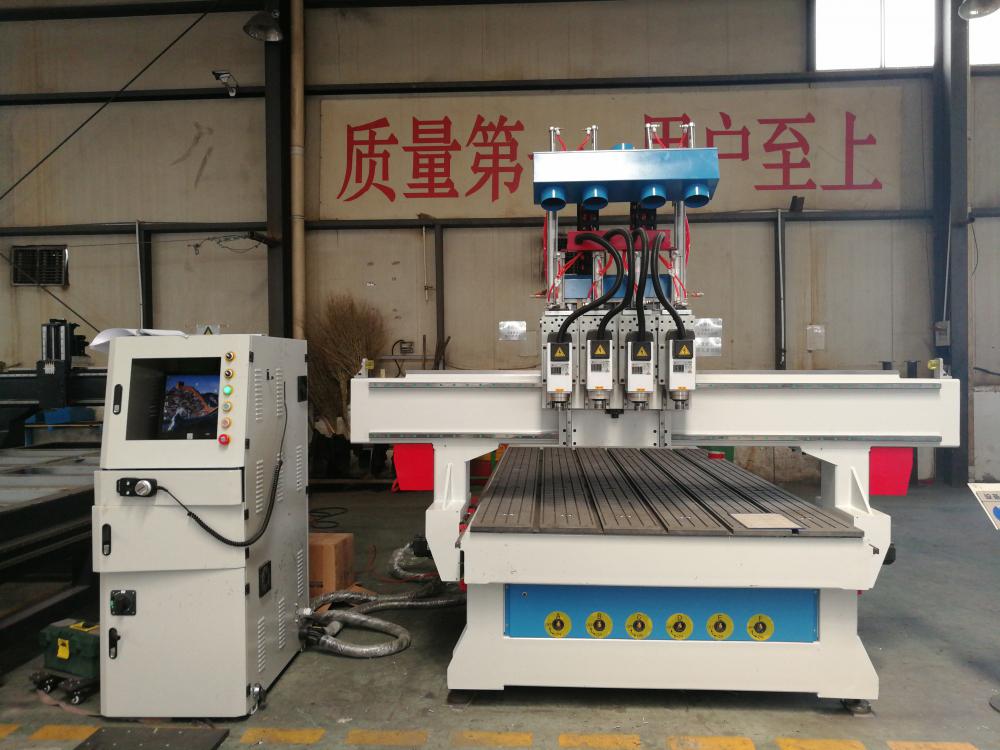

The CNC router is designed for wood processing and will manufacture versatile and complex products. It can automatically finish a variety of processes, including milling, drilling, and cutting. This cost-effective CNC mill is equipped with three independent 3.5KW spindles.

Materials Cut

Board, fiberboard, particle board, acrylic, etc.

  • 3 Spindles CNC Router
  • 3 Spindles CNC Router
  • 3 Spindles CNC Router
  • 3 Spindles CNC Router
  • 3 Spindles CNC Router
  • 3 Spindles CNC Router
  • 3 Spindles CNC Router
  • 3 Spindles CNC Router
  • 3 Spindles CNC Router
  • 3 Spindles CNC Router
Applications

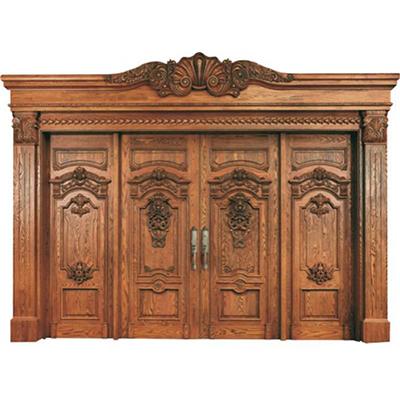

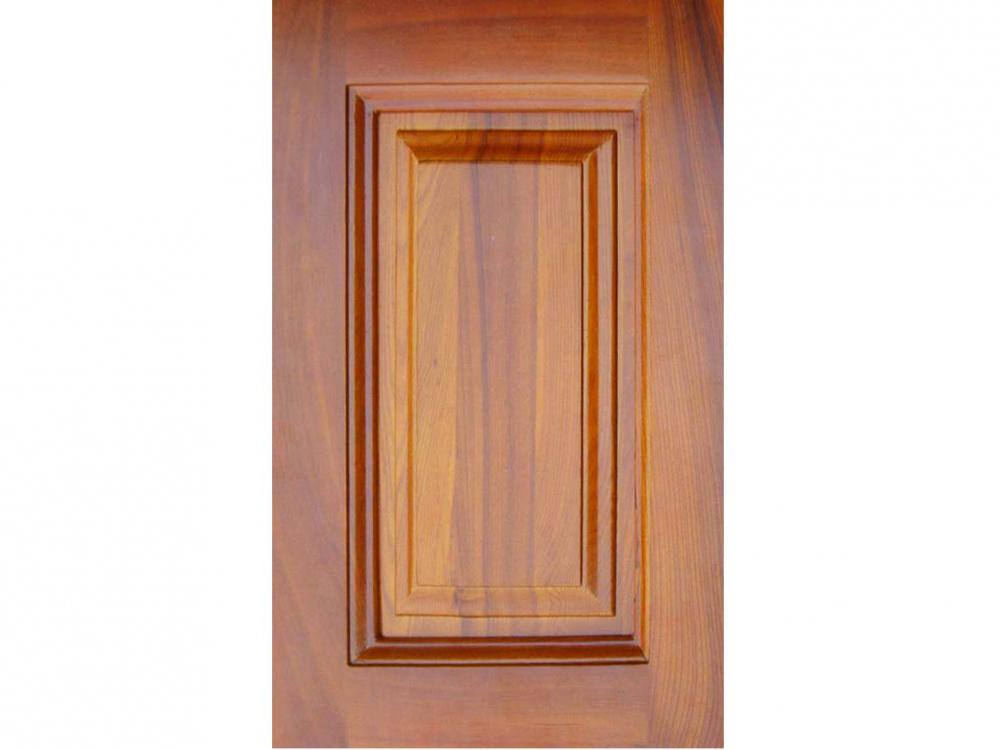

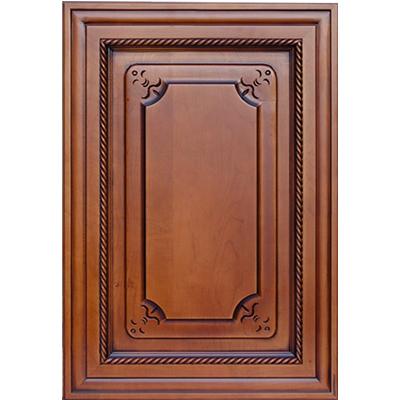

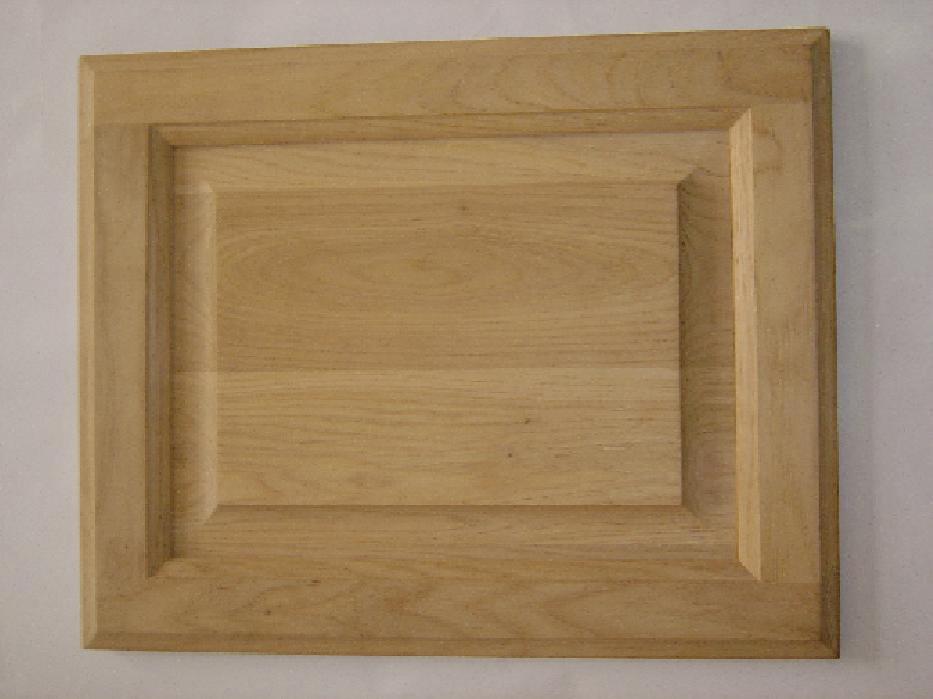

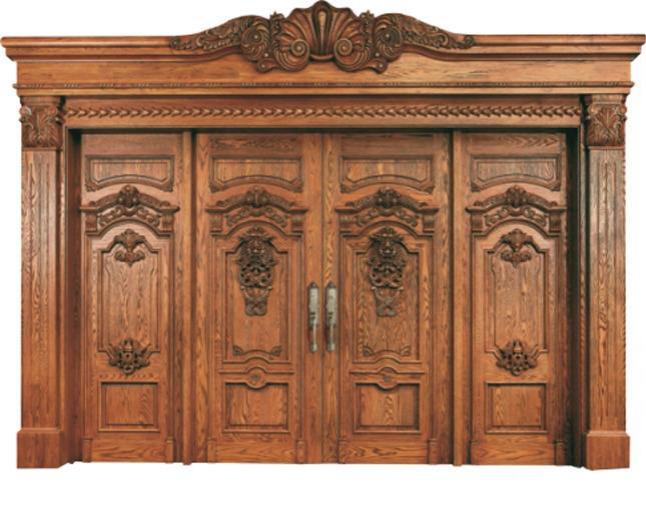

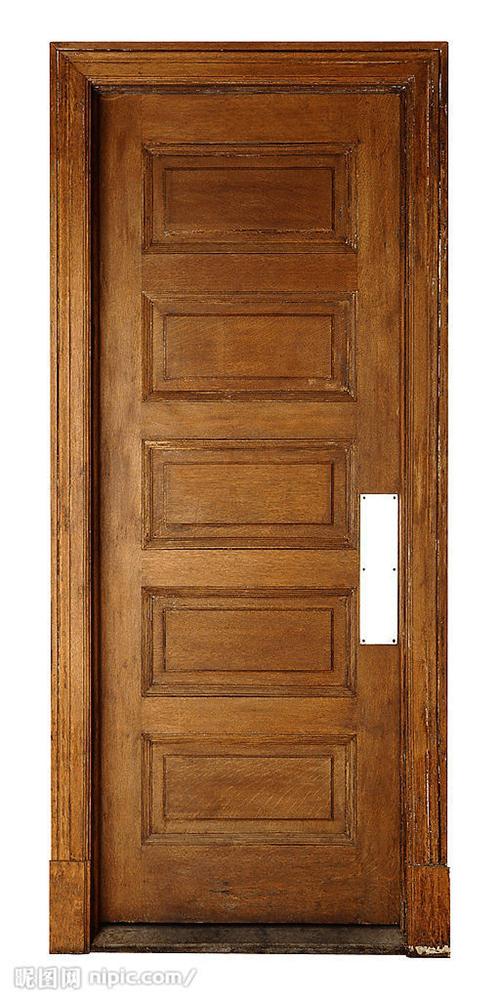

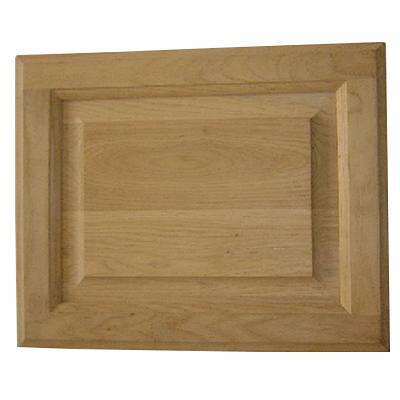

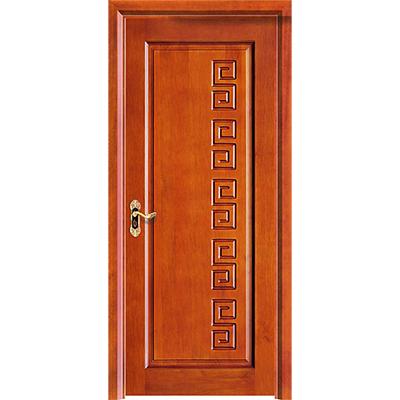

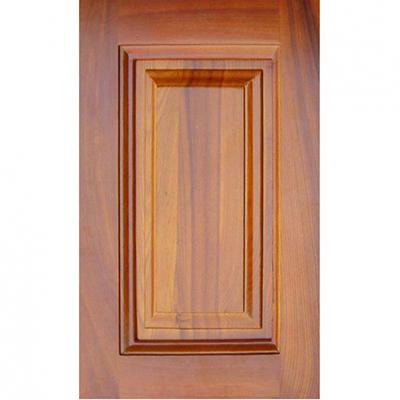

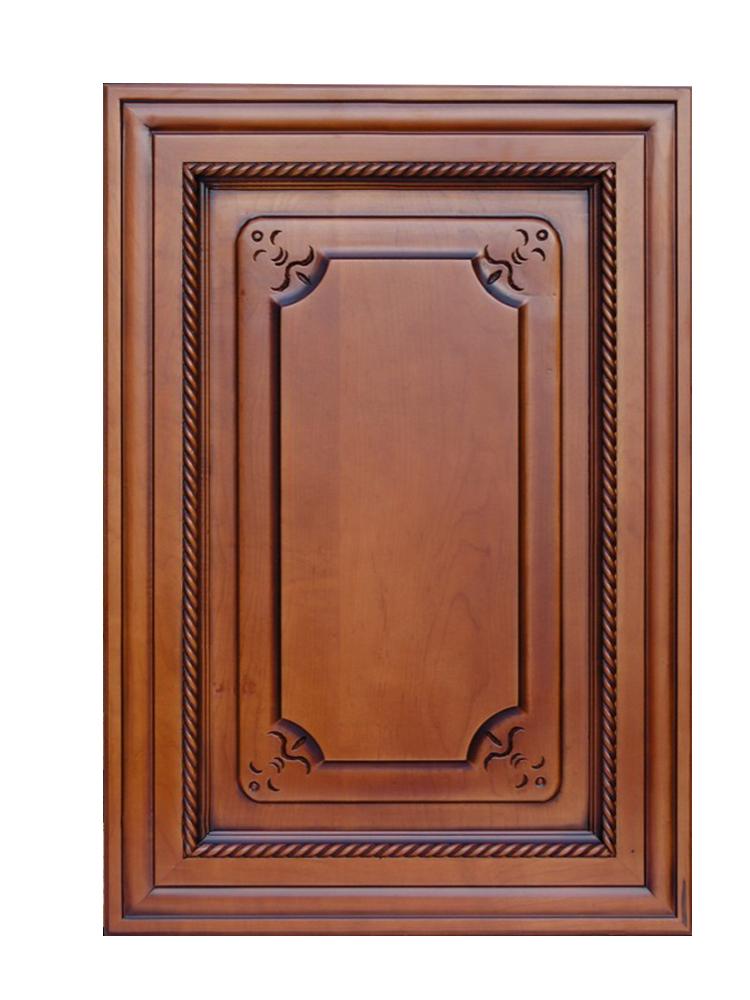

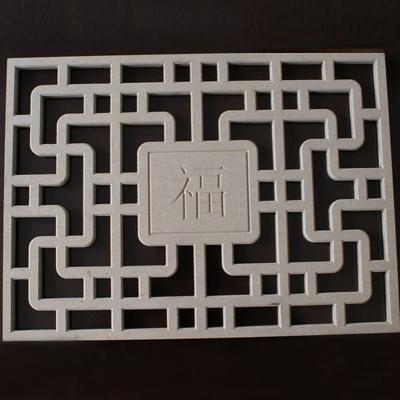

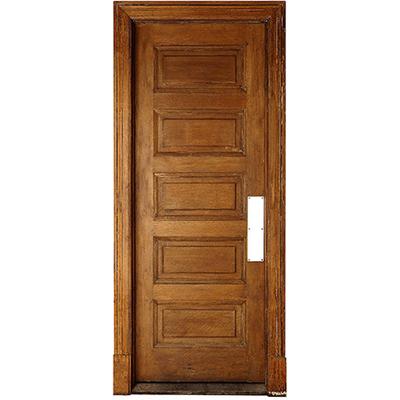

  • Wood working industry: door, screen, three-dimensional wavy plate, window, furniture
  • Advertising industry: manufacturing advertising signs, plastic models, cutting acrylic plates, other advertising decorations

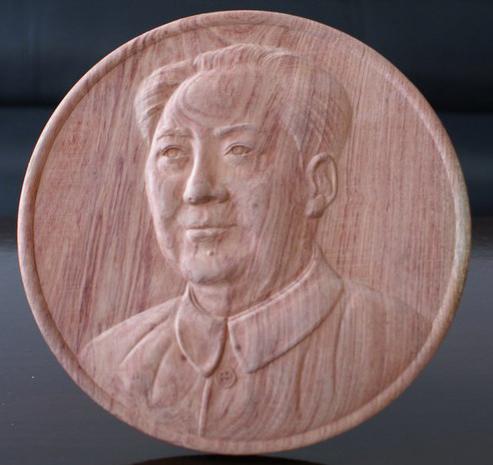

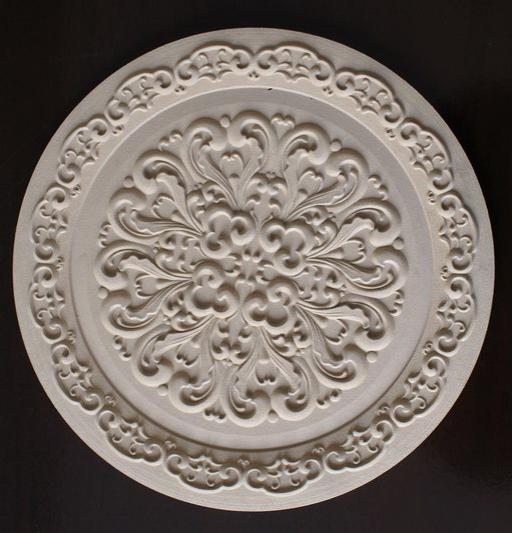

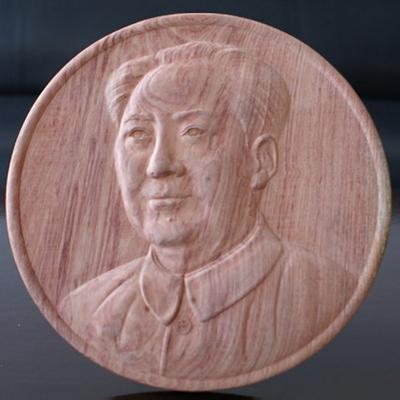

  • Other industry: engraving handcrafted gifts and realizing shadow carvings, embossing effects.
Features

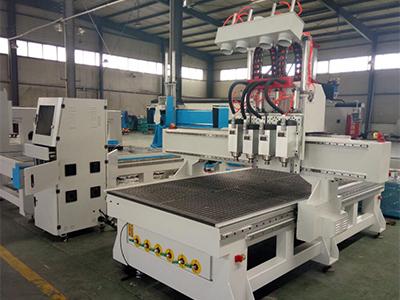

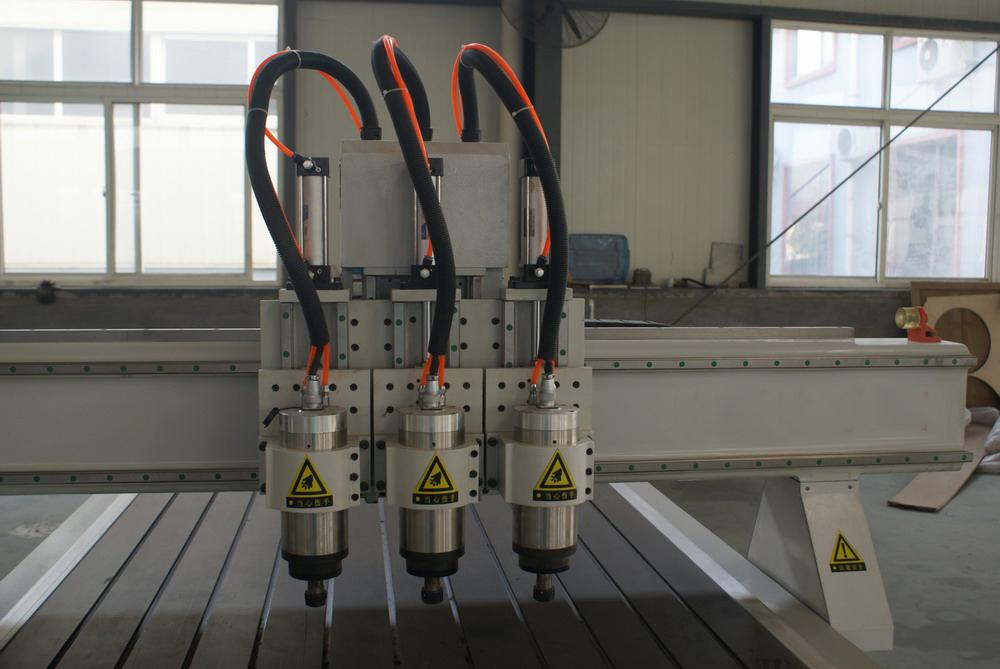

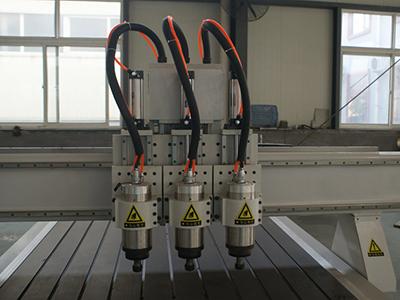

  • 3 Spindles CNC RouterThree pneumatic tool change spindles can hold four different tools. The tools can be used alternately and changed automatically to significantly improve processing efficiency.

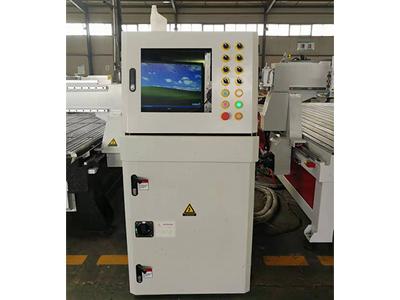

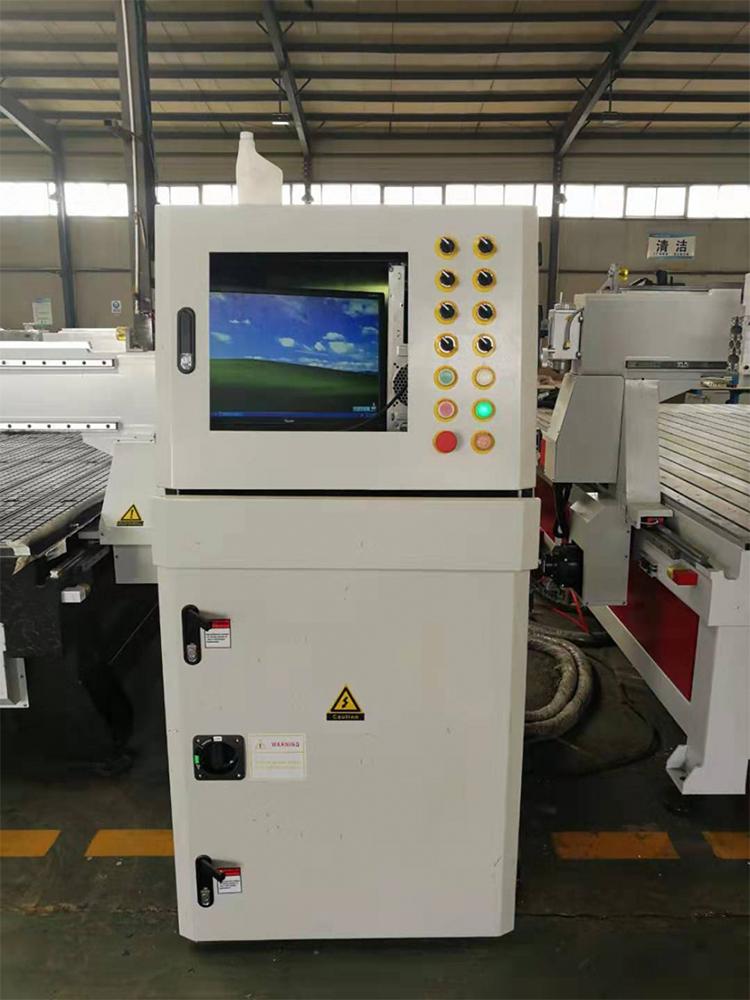

  • 3 Spindles CNC RouterThe CNC mill is equipped with an independent control cabinet and Weihong 95A-3S control system. It features a stable and easy operation and performance.

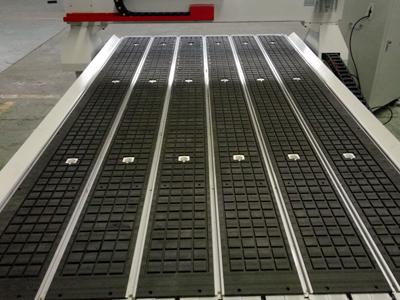

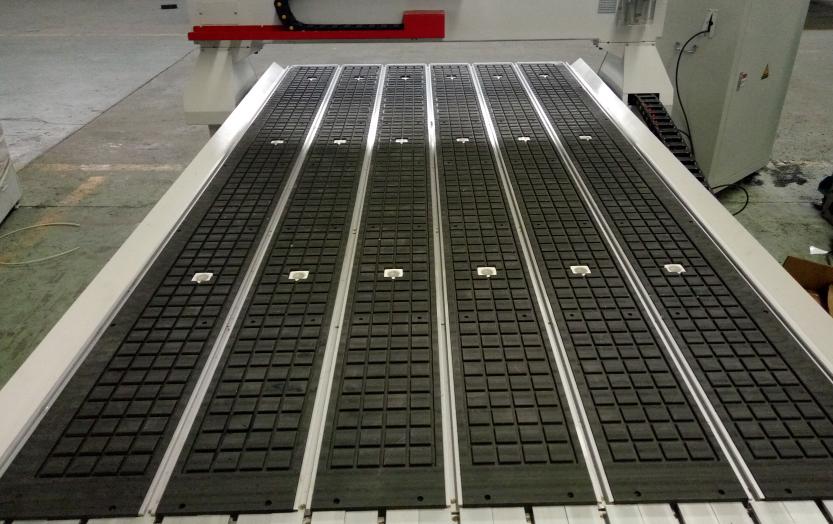

  • 3 Spindles CNC RouterThe vacuum table with a T-slot can fix workpieces of different dimensions both partially and firmly. It features a quick load and convenient use.
Parameters
Model F5-M1325AS3 F5-M1631AS3 F5-M2131AS3 F5-M2142AS3
Stroke 1300*2500*200mm 1600*3100*200mm 2100*3100*200mm 2100*4200*200mm
Positioning accuracy ±0.03mm
Max. Idle speed 45m/minute
Support software Type3/Artcam/Mastercam/UG
Working voltage AC380V-/220V
Package dimensions 3100*2100*2100mm 3800*2100*2100mm 3800*2200*2100mm 3800*2200*2100mm
Weights 1700kg 2000kg 2200kg 2400kg
Options
  • The spindle with pneumatic tool changer and two/four heads is optional.
  • The Z axis with a 250mm or 300m height is optional.
Gallery
  • 3 Spindles CNC Router
  • 3 Spindles CNC Router
  • 3 Spindles CNC Router
  • 3 Spindles CNC Router
  • 3 Spindles CNC Router
  • 3 Spindles CNC Router

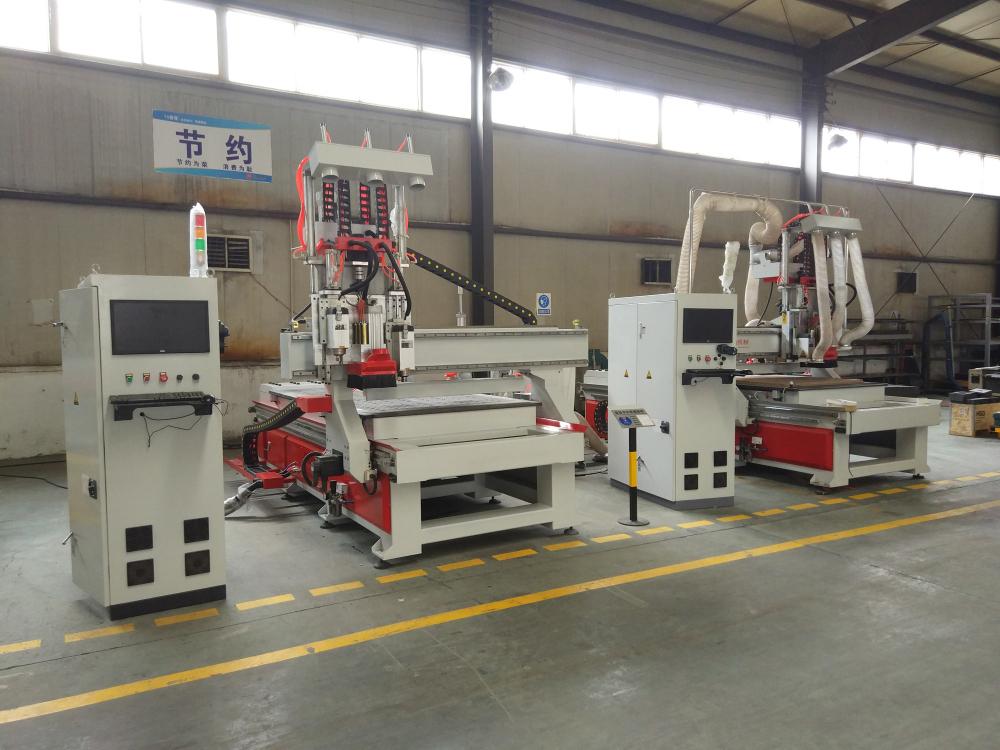

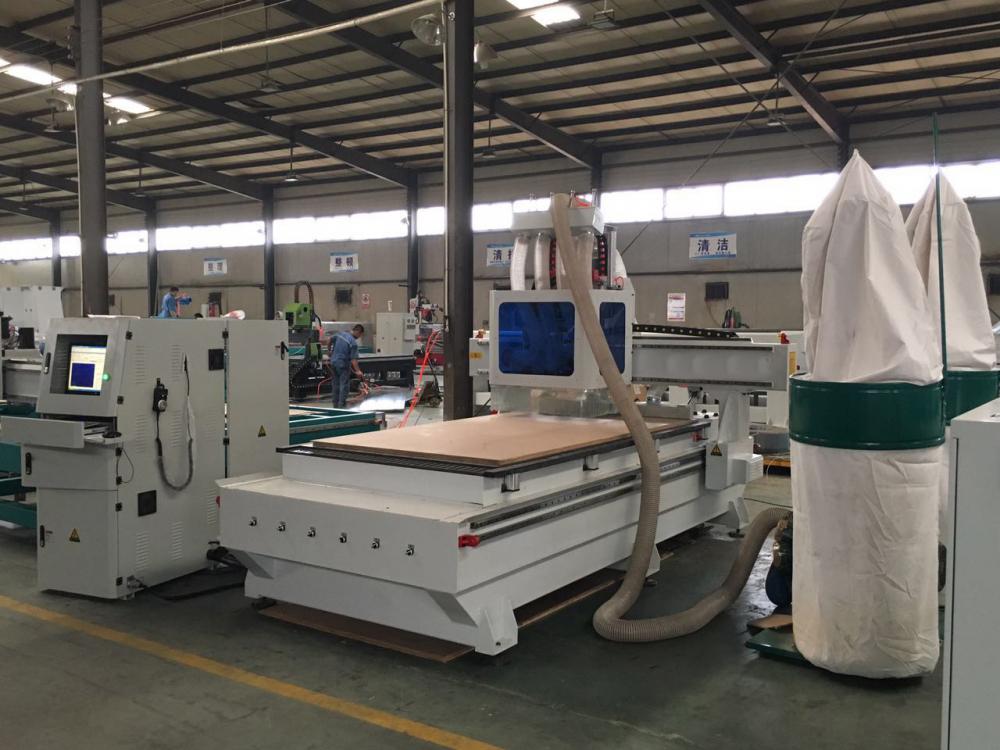

Factory Tour
  • 3 Spindles CNC Router5-Face Milling
  • 3 Spindles CNC RouterCNC Machining
  • 3 Spindles CNC RouterGantry Planing
  • 3 Spindles CNC RouterWelding
  • 3 Spindles CNC RouterWelding

Founded more than two decades ago, Shandong PEF Machine Tool Co. is a lauded manufacturer of high-performance CNC processing machinery. Our equipment is carefully developed to provide users with incredible precision, and we are proud of their capabilities. We offer a series of 3/4/5-axis CNC routers that deliver a broad range of functions for many industries. These machines have been applied for numerous different applications, such as panel processing, parts prototyping, custom cabinets, architectural modeling, millwork, and much more. We provide a full range of standard equipment, but if your requirements are still not met, we can customize the machines to ensure you are fully satisfied. Contact us today to learn more!
